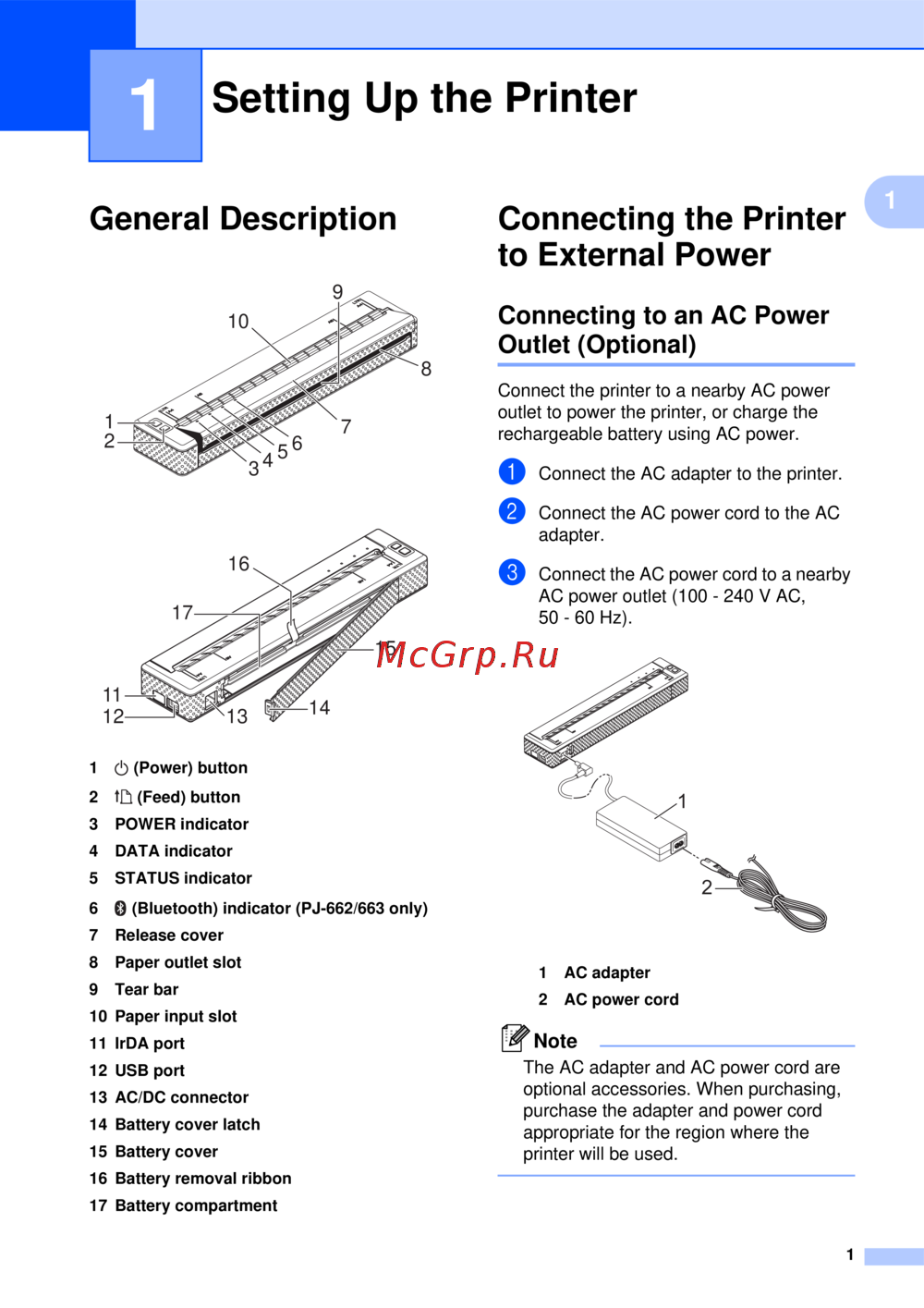

General Description 1
1 (Power) button
2 (Feed) button
3 POWER indicator
4 DATA indicator
5 STATUS indicator
6 (Bluetooth) indicator (PJ-662/663 only)
7 Release cover
8 Paper outlet slot
9Tear bar
10 Paper input slot
11 IrDA port
12 USB port
13 AC/DC connector
14 Battery cover latch
15 Battery cover
16 Battery removal ribbon
17 Battery compartment
Connecting the Printer
to External Power
1
Connecting to an AC Power
Outlet (Optional) 1
Connect the printer to a nearby AC power
outlet to power the printer, or charge the
rechargeable battery using AC power.
a Connect the AC adapter to the printer.
b Connect the AC power cord to the AC
adapter.
c Connect the AC power cord to a nearby
AC power outlet (100 - 240 V AC,
50 - 60 Hz).
1AC adapter
2 AC power cord
Note
The AC adapter and AC power cord are
optional accessories. When purchasing,
purchase the adapter and power cord
appropriate for the region where the
printer will be used.
Setting Up the Printer 1
1
2
3
4
5
6
7
10
9
8
11
14
15
12
13
17
16
1
2
