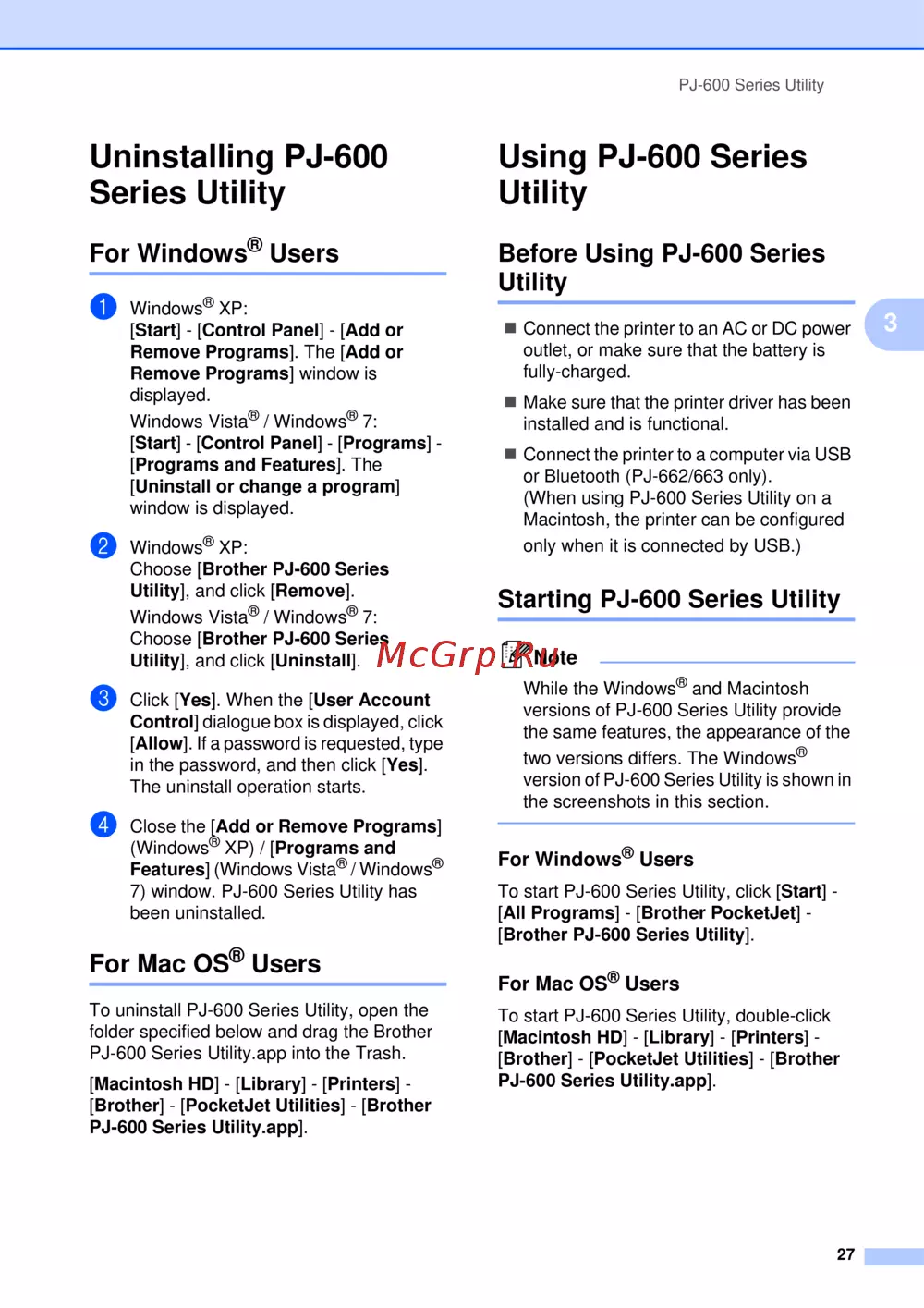

Brother PJ-622 [31/61] Using pj 600 series utility
![Brother PJ-622 [31/61] Using pj 600 series utility](/views2/1027386/page31/bg1f.png)
PJ-600 Series Utility
27
3
Uninstalling PJ-600
Series Utility
3
For Windows
®
Users 3
a
Windows
®
XP:
[Start] - [Control Panel] - [Add or
Remove Programs]. The [Add or
Remove Programs] window is
displayed.
Windows Vista
®
/ Windows
®
7:
[Start] - [Control Panel] - [Programs] -
[Programs and Features]. The
[Uninstall or change a program]
window is displayed.
b Windows
®
XP:
Choose [Brother PJ-600 Series
Utility], and click [Remove].
Windows Vista
®
/ Windows
®
7:
Choose [Brother PJ-600 Series
Utility], and click [Uninstall].
c Click [Yes]. When the [User Account
Control] dialogue box is displayed, click
[Allow]. If a password is requested, type
in the password, and then click [Yes].
The uninstall operation starts.
d Close the [Add or Remove Programs]
(Windows
®
XP) / [Programs and
Features] (Windows Vista
®
/ Windows
®
7) window. PJ-600 Series Utility has
been uninstalled.
For Mac OS
®
Users 3
To uninstall PJ-600 Series Utility, open the
folder specified below and drag the Brother
PJ-600 Series Utility.app into the Trash.
[Macintosh HD] - [Library] - [Printers] -
[Brother] - [PocketJet Utilities] - [Brother
PJ-600 Series Utility.app].
Using PJ-600 Series
Utility
3
Before Using PJ-600 Series
Utility 3
Connect the printer to an AC or DC power
outlet, or make sure that the battery is
fully-charged.
Make sure that the printer driver has been
installed and is functional.
Connect the printer to a computer via USB
or Bluetooth (PJ-662/663 only).
(When using PJ-600 Series Utility on a
Macintosh, the printer can be configured
only when it is connected by USB.)
Starting PJ-600 Series Utility 3
Note
While the Windows
®
and Macintosh
versions of PJ-600 Series Utility provide
the same features, the appearance of the
two versions differs. The Windows
®
version of PJ-600 Series Utility is shown in
the screenshots in this section.
For Windows
®
Users 3
To start PJ-600 Series Utility, click [Start] -
[All Programs] - [Brother PocketJet] -
[Brother PJ-600 Series Utility].
For Mac OS
®
Users 3
To start PJ-600 Series Utility, double-click
[Macintosh HD] - [Library] - [Printers] -
[Brother] - [PocketJet Utilities] - [Brother
PJ-600 Series Utility.app].
