Electric Hob

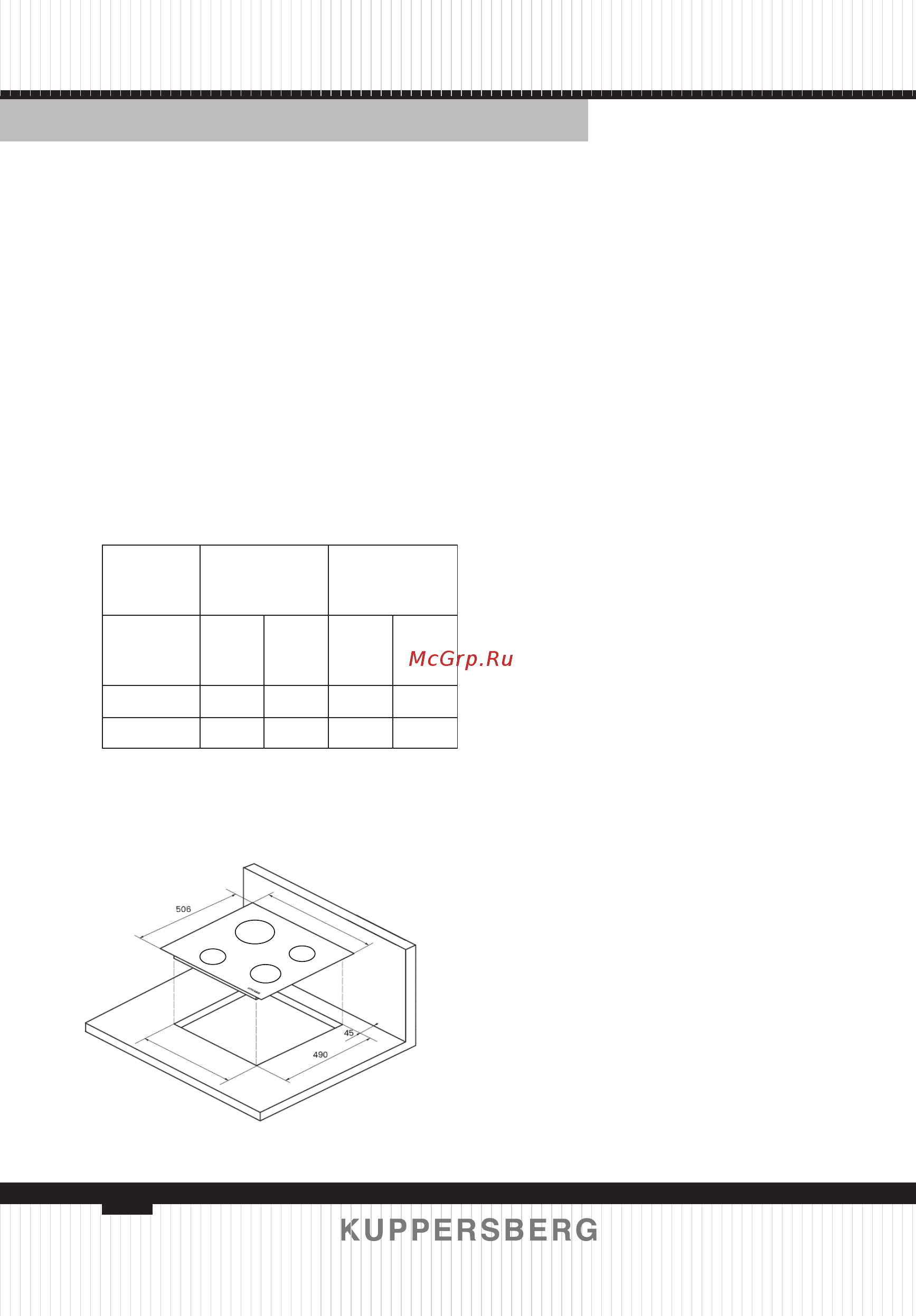

TABLE 5
COMPLY WITH THE
DIMENSIONS (in mm)
MODEL
Overall
dimensions of
hob
Cut out
dimensions of
kitchen unit
A in
mm
B in
mm
С in
mm
(±2 )
D in
mm (
±2 )
FA6VI01M
506 576 490 560
INSTALLATION
FIXING
There is a special sealing washer
supplied with the hob. In order to avoid
any water infi ltration underneath the
hob. To fi x the s ealing washer, please
respect to following instructions:
1. Turnover the hob, take off the seal
from the guard. Correctly place the s
ealing washer «e»(fi g 9) under the hob.
Be sure to place the sealing washer
so that the external side ofthe sealing
washer fi ts together with the external
perimetrical edge of the hob. The ends
of the s e aling washer must fi t together
without overla pping.
2. Stick the sealing washer to the
hob uniformly. Presing it by fi ngers.
(Figure 9)
3. Place the hotplate in the openning
on the table
top.
4. Fix the hooks in the relative
accomodations of the body with the
screws F. (see Figure 8)
In order to avoid accidental touch
with the overheating bottom of the hob
during the working, is necessary to put
a wooden insert, fi xed by screws, at a
minimum distance of 70 mm from the
bottom of the hob ( see Fig. 11).
WARNINGS:
Be aware that the glue that join
the hob to the furniture, has to resist
to temperature higher than 150° C, to
avoid the unstuck of the panelling.
TECHNICAL DRAWINGS
Please keep children away from all
packing elements ( carton, polystyrene,
nails,..).
Make a cutout in the worktop (in
Table 5), according to the d i m e n sions
indicated in fi g. 7; make sure that will
be respected the critical dimensions
between the hob, the lateral walls, the
back and the superior walls (see fi g. 7).
FA6VI02M
506 576 490 560
10
576
560
TECHNICAL
PASSPORT
ENGLISH
FIG. 7
