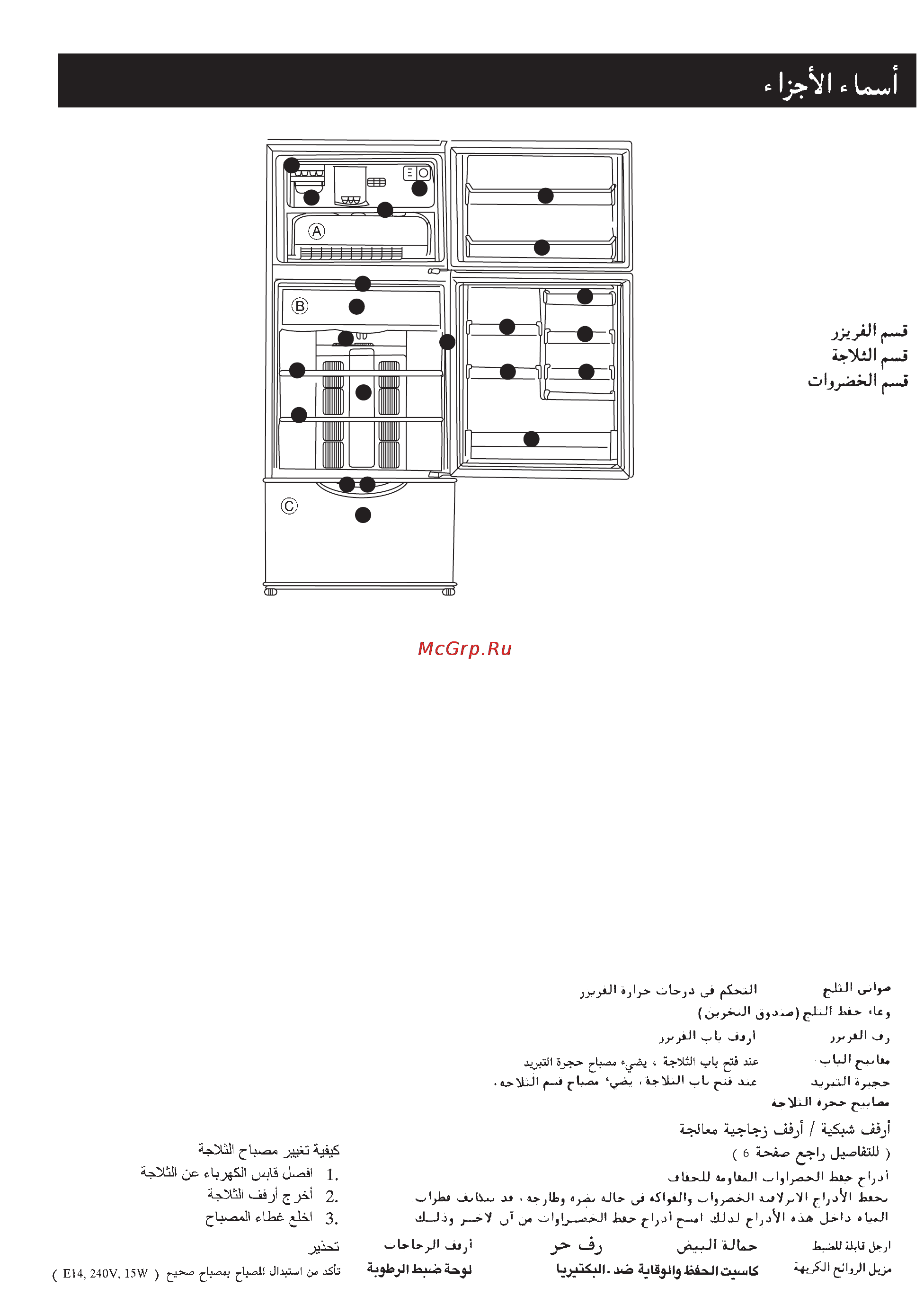

PARTS IDENTIFICATION
FREEZER COMPARTMENT
REFRIGERATOR COMPARTMENT
VEGETABLE COMPARTMENT
Ice Trays
Freezer Temperature Control Dial
Ice Server (Storage Box)
Freezer Shelf
Freezer Door Racks
Door Switch
When the refrigerator door is opened, the room lamp comes on.
Chilled Corner
Refrigerator Temperature Control Dial
Room Lamp
Tempered Glass Shelves/Net Shelves
Vegetable Compartment
It is used to store fruits and vegetables. Because it is designed to preserve natural moisture and freshness
of them, Refer to page 10-12 for details of how to use Vegetable Compartment.
Adjustable Legs
Egg Racks
Free Racks
Bottle Rack
Deodorizer
Herb Cassette
Shape Memory Film
HOW TO REPLACE ROOM LAMP
1. Disconnect power supply cord.
2. Remove storage shelves.
3. Remove lamp cover.
Caution
Replace proper lamp (E14, 240V, 15W) surely.
1
3
4
2
6
7
8
10
10
9
14
14
14
13
13
5
5
15
Sketch: NR-C703M
11
16
17 18
