Vitek VT-1744 [4/6] English
![Vitek VT-1744 [4/6] English](/views2/1028693/page4/bg4.png)
СХЕМА И ОПИСАНИЕ ТЕПЛОВЕНТИЛЯТОРА
ИСПОЛЬЗОВАНИЕ
• Данное устройство предназначено для работы на плоской и
устойчивой поверхности, например, на полу, на поверхности
стола, на полке или в других местах, где не будут заблокированы
воздушные отверстия тепловентилятора.
Не используйте прибор вблизи легковоспламеняющихся
материалов, в местах с повышенной влажностью, а также в
местах применения или хранения бензина, красок, либо других
летучих жидкостей.
ВНИМАНИЕ:
Следите за тем, чтобы к розетке, в которую включен
данный тепловентилятор, не подключались другие электроприборы
с большой мощностью потребления.
• Подключите вилку сетевого шнура к сетевой розетке.
РУССКИЙ
9
4
OPERATING INSTRUCTIONS
1. Plug into any 230V ~ 50HZ source (see important safeguards section
regarding use of extension cords).
2. Your heater is equipped with a 3*position control switch:
SYMBOL FUNCTION
O OFF
LO 1000 WATTS
HI 1500 WATTS
3. Set the control switch to maximum (HI) for fast warm up of a room. Once
the room is Comfortable, select a lower setting to reduce electrical con*
sumption and to prevent the room from becoming too warm.
4. Adjust the thermostat to maximum and select the desired power set*
ting. Once the room is comfortable, rotate the thermostat counter*
clockwise, until the heater shuts off. The thermostat will now maintain
the temperature by cycling the heater on or off during particularly cold
weather, the low power setting may be insufficient to satisfy the ther*
mostat. Select a higher setting for these periods.
5. For fan only operation, select the fan position on the control switch. Set
the thermostat to maximum.
SAFETY CONTROL
Your heater is fitted with a safety device "Double Protector" that (1) switch*
es off the heater in the event of overheating or malfunction, To reset, turn
off or unplug the appliance and allow to cool for 5 minutes. (2) Shuts off the
heater by thermal fuse in the event of overheating or malfunction and not
operates above (1) by some other accidental reason.
If overheating or malfunctions continue, return the heater to an Approved
Service Agent for examination.
The most common cause of overheating is deposits of dust or dust or fluff
entering the heater, Ensure these deposits are removed regularly by
unplugging the unit and vacuum cleaning air vents and front grille.
ENGLISH

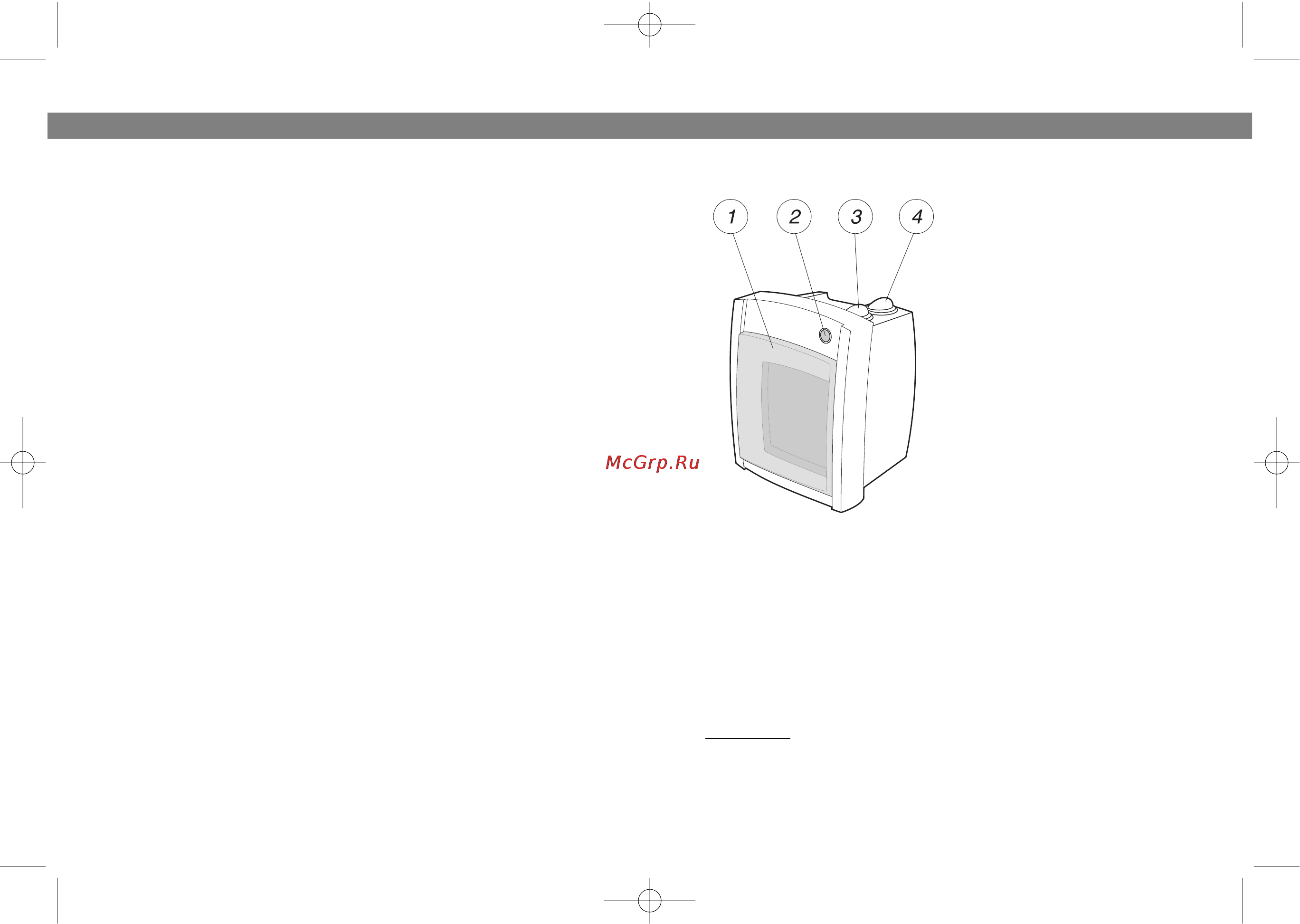

1. Передняя решетка
2. Индикатор работы
3. Регулятор термостата
4. Переключатель режимов
работы:
* 0 * отключение
тепловентилятора;
* LO * (низкий уровень нагрева)
* для небольших помещений;
* HI * (высокий уровень
нагрева) * для больших
помещений.
Vt-1744.qxd 14.05.04 14:26 Page 8
Содержание
- Модель vt 1744 1
- English 2
- Vt 1744 qxd 14 5 4 14 25 page 4 2
- Русский 2
- English 3
- Vt 1744 qxd 14 5 4 14 26 page 6 3
- Русский 3
- English 4
- Vt 1744 qxd 14 5 4 14 26 page 8 4
- Русский 4
- Caution dot not allow water to run into the interior of the heater as this could create a fire or electric shock hazard 5
- English 5
- Maintenance 1 always disconnect the cord from the electrical outlet when cleaning your heater 2 light accumulated dust may be removed from the heater with a soft cloth or vacuum cleaner using the dusting brush attachment interior dust can often be removed by using a vacuum cleaner in its blower mode with a crevice tool attachment 3 wipe the exterior surfaces of the heater occasionally with a cloth mois tened not dripping wet with a solution of mild detergent and water dry the case thoroughly with a soft dry cloth before operating the heater 5
- Pilot light this fan heater is equipped with a pilot light that glows whenever the heater is plugged in and turned on it will continue to glow even if the thermostat has cycled the heating elements off this feature is to prevent you from being unaware that the heater is operating and maintaining the tempera ture of the room when you do not wish the heater to control the room tem perature turn the control switch to 0 off and remove the plug from the electrical outlet 5
- Remember portable electric heaters are designed for spot heating or as a supplementary heat source they are not intented to be main sources of heat during the normal heating season 5
- The fan motor is factory lubricated for life and will require no further lubrication 5 no other user maintenance is required or recommended if service is required send your heater to the nearest authorized service depot 6 store heater in a clean dry place when not in use 5
- Vt 1744 qxd 14 5 4 14 26 page 10 5
- Русский 5
- English 6
- Note there may be trace of smoke or odour when unit is first operated do not be alarmed this indicates that a drop of oil fell on the heating coil dur ing the manufacturing process it will quickly evaporate and should not re occur 6
- Specifications power supply 220 230 v 50 hz power regulation range 1000 1500 w 6
- Vt 1744 qxd 14 5 4 14 26 page 12 6
- Русский 6
