Pilotage Higlander 1:10 (RC7993) [10/34] Installation of the 7 v battery pack

www.pilotage-rc.com

NOTE: when connecting the battery output lead to the power input lead do not force!!! The connection can only be made in one

way. Improperly connecting the battery to the ESC will reverse the polarity of the connection and may cause a ﬁre hazard.

7. Install the Body Back on the Model

a. Thread the antenna tube through the hole in the model.

b. Place the body on the body mount posts.

c. Secure the body in place with the clips.

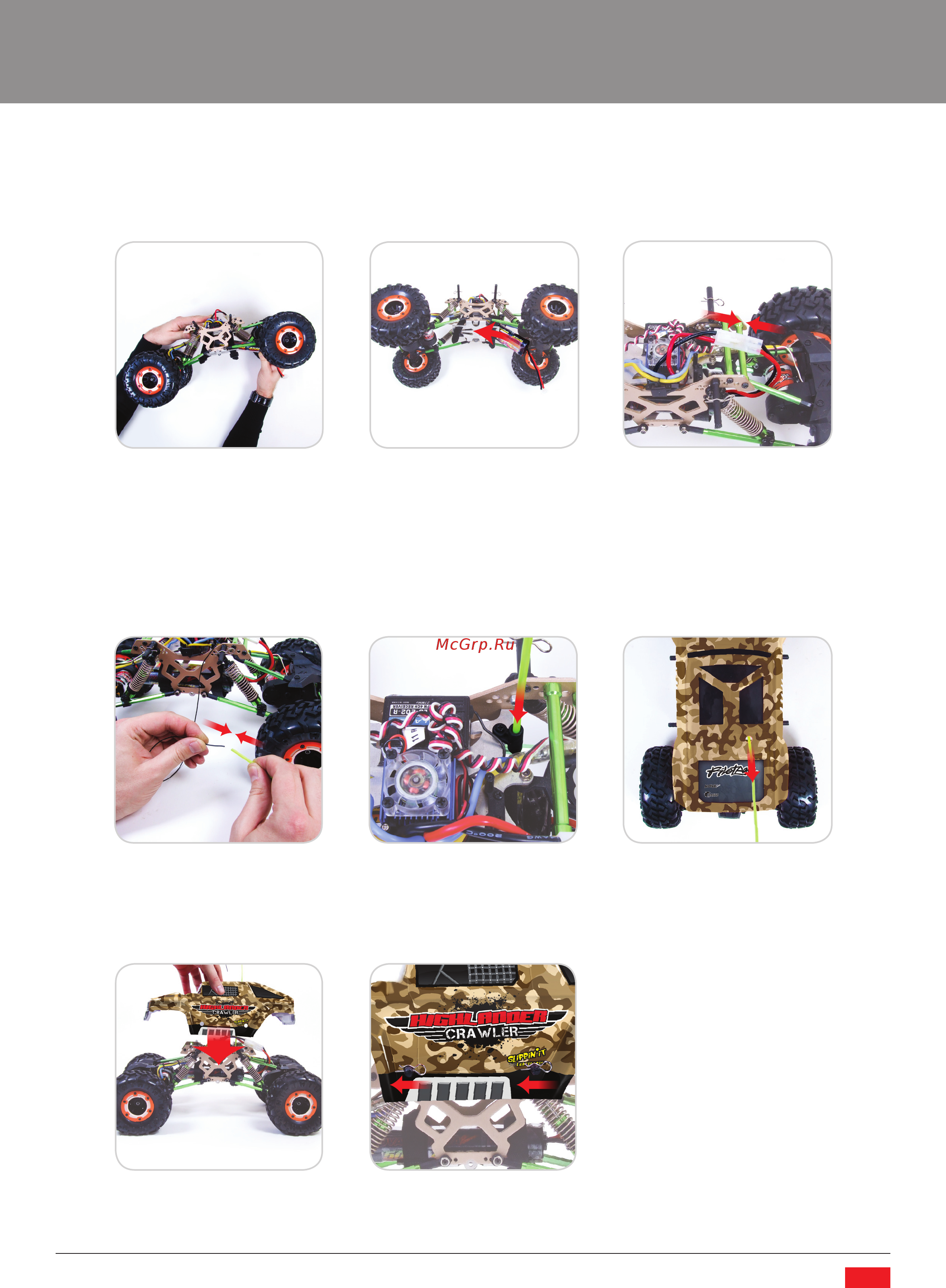

5. Installation of the 7.2V Battery Pack

a. Lift one of the axles to its highest possible position.

b. Slip your selected battery pack underneath the axle and slide it onto the platform designated for it.

c. Lock the battery pack into place by pulling the pre installed hook and loop Velcro straps tight.

d. Connect the battery pack to the corresponding input connector on the ESC.

6. Preparing the Rx Antenna

a. Unravel the Rx antenna to its full length.

b. Thread the antenna though the hard plastic tube.

c. Lock the antenna into place by ﬁtting the rubber cap over the end of the tube with the antenna extending past it.

d. Fit the antenna tube into the provided hole on the chassis.
