Function Check and Model Setup

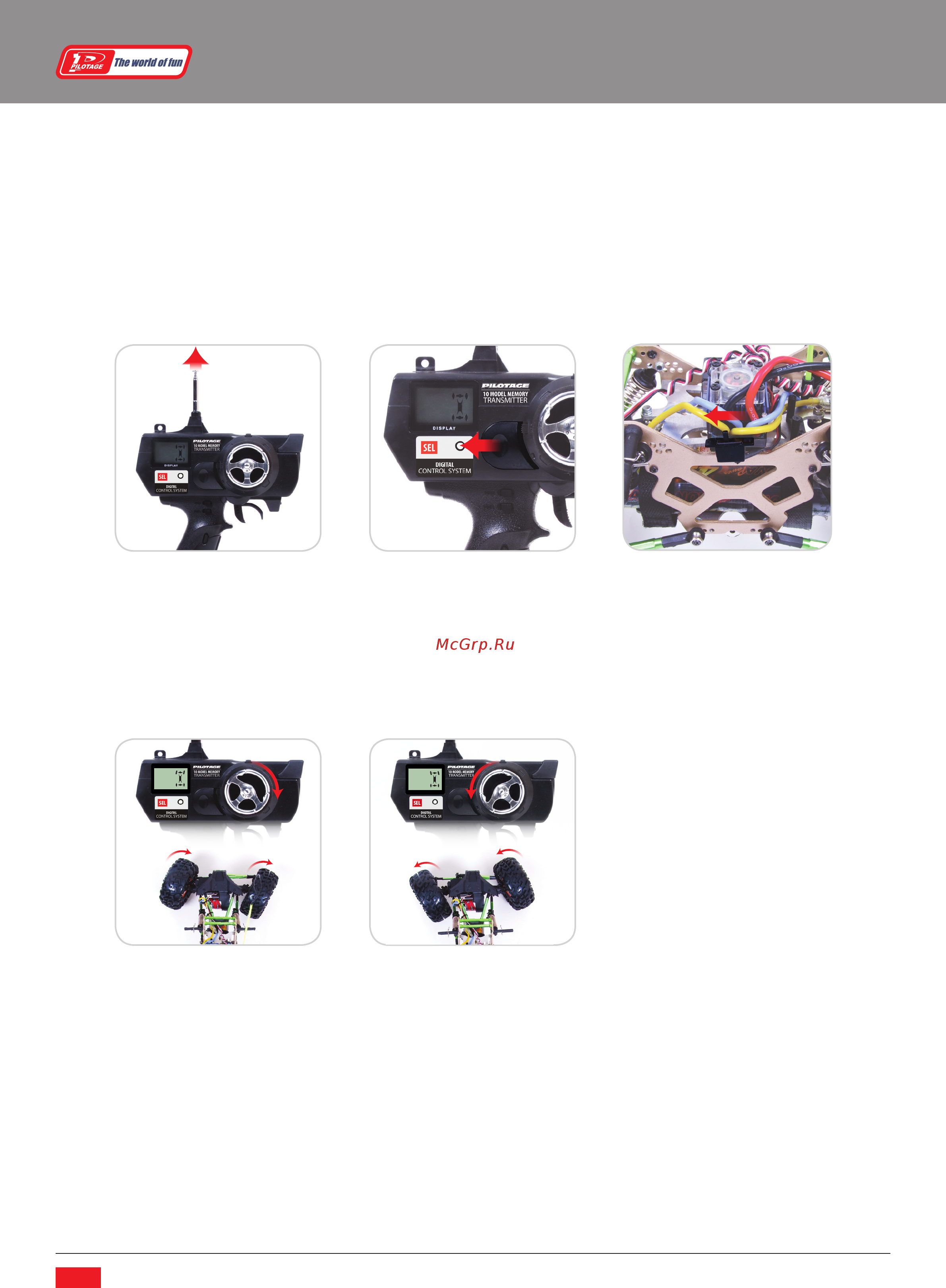

1. Turning on the Model

a. Fully extend the antenna on the Tx.

b. Turn the Tx power switch to the “on” position.

c. Remove 4pcs body clips from the body retaining posts.

d. Lift the lexan body oﬀ of the chassis.

e. Turn the power switch on the model to the “on” position.

f. Replace the body on the model.

g. Secure the body into place with the body clips.

2. Check the Tx and Car Function

a. Rotate the control wheel forward (clockwise) or to the right if viewing the transmitter face. The front wheels should turn

to the right (when the model is viewed from the rear).

b. Rotate the control wheel backwards (counterclockwise) or to the left if viewing the transmitter face. The front wheels

should turn to the left (when the model is viewed from the rear). If the wheels move in the opposite direction check the

servo reversing settings on the Tx and switch the steering servo channel to the opposite setting. For more information

concerning channel reversing, refer to the “Channel Reversing (REV)” portion of the “Transmitter Settings and Setup” sec-

tion.

c. Place the model on an elevated surface such as a brick so that the wheels on the model can rotate freely and do not

touch the ground.

d. Squeeze the trigger on the model and the wheels should rotate in the direction to drive the model forward.

e. If the wheels rotate in the opposite direction switch the throttle reversing setting in your Tx. For more information con-

cerning channel reversing, refer to the “Channel Reversing (REV)” portion of the “Transmitter Settings and Setup” section.

f. Release the trigger on the Tx, the ESC should cease delivering power to the wheels and they should eventually come to a

full stop.

g. Extend the trigger on the Tx forwards. The wheels should rotate in the direction to drive the model backwards.

NOTE: This model has a reverse function. In order to protect the gears from stripping and becoming damaged the model will

not allow the model to go from forward directly into reverse. If moving forward, and then the trigger is extended outward the

breaks will ﬁrst engage until the model is brought to a halt. Then return the throttle trigger to the neutral position and extend

the throttle trigger outward again and the model will move in reverse.
