Sony SLV-SE210B [12/56] Step 3 connecting the vcr
![Sony SLV-SE210B [12/56] Step 3 connecting the vcr](/views2/1029241/page12/bgc.png)
12
Connecting the VCR

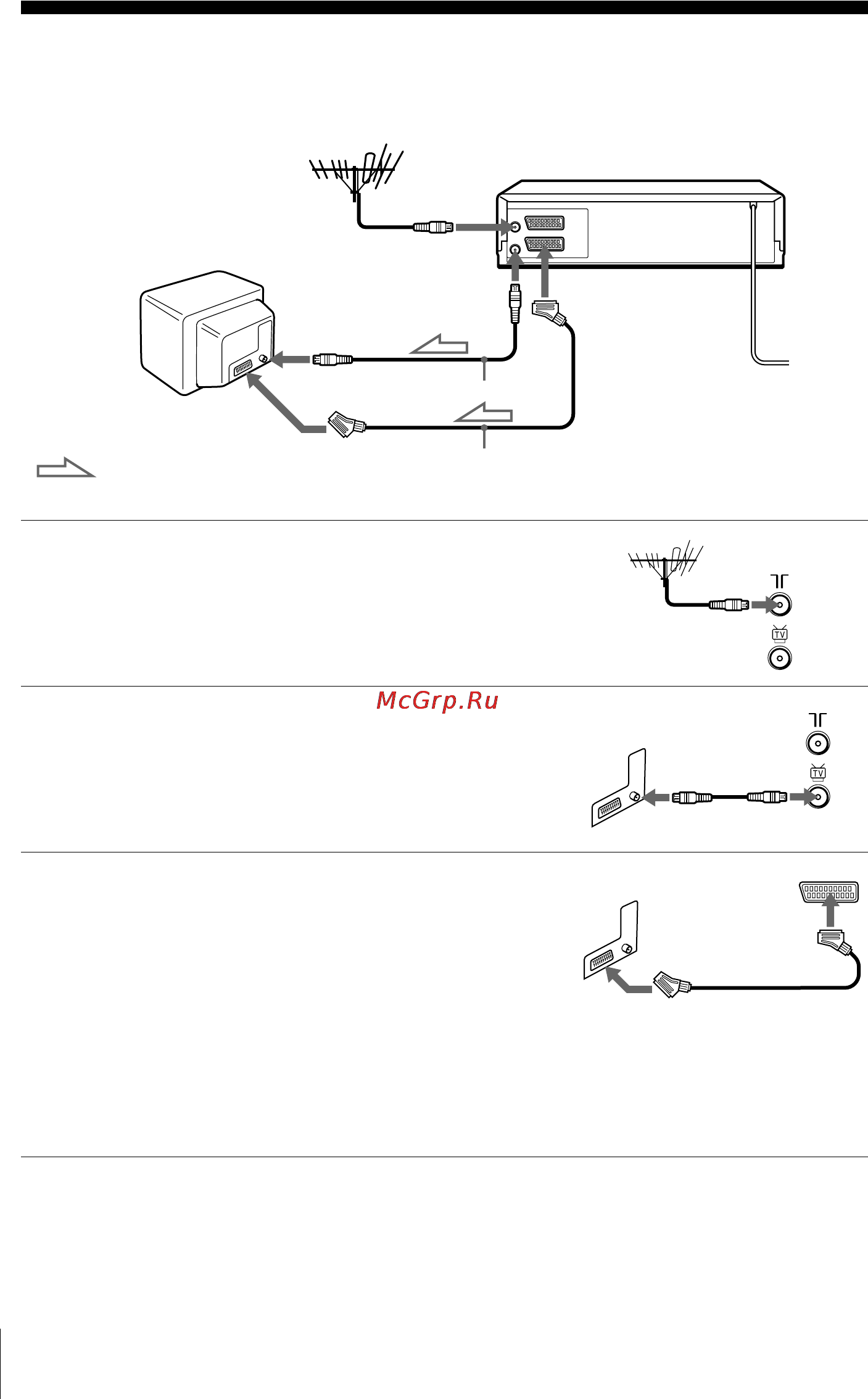

Step 3 : Connecting the VCR
Tip
• If your TV does not have a PERITEL connector, use the VMC-2106HG cable
instead and connect the cable to the line in jacks of your TV.
1
Disconnect the aerial cable from
your TV and connect it to IN
FRONT ANT. on the rear panel of
the VCR.
2
Connect OUT TO TV of the VCR
and the aerial input of your TV
using the supplied aerial cable.
3
Connect AV1 (EURO AV) on the
VCR and the PERITEL connector
on the TV with the supplied
PERITEL cable.
This connection improves picture
and sound quality. Whenever you
want to watch the VCR picture,
press t TV/MAGN to display
the VCR indicator in the display
window.
AV1
(EURO AV)
ANTENNE
ENTREE
PERITEL
Aerial cable (supplied)
OUT TO TV
: Signal flow
PERITEL cable (supplied)
IN FRONT ANT.
