Sony SLV-SE20UX [67/72] Rear panel

Additional Information

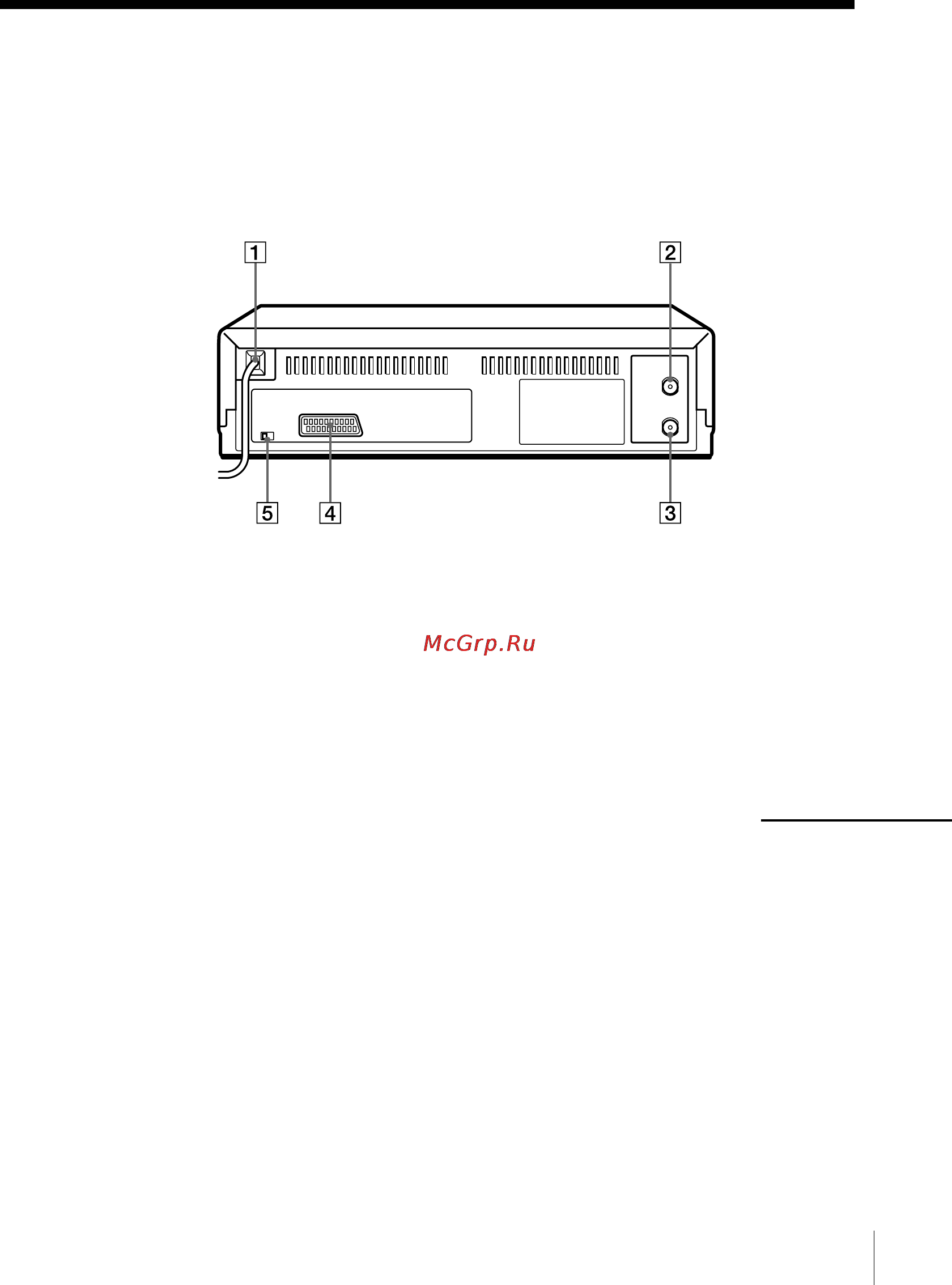

Rear panel

1 Mains lead (8, 9)

2 AERIAL IN

ANTENNE ENTREE connector (8,

3 AERIAL OUT

ANTENNE SORTIE connector (8, 9)

4 : LINE-1 (TV)

: LIGNE-1 (TV) connector (9, 59)

5 NTSC PB (Play Back) switch (32)

continued
