| 9
Basic Operation | Lowrance HDS Gen2 Touch
Basic operation

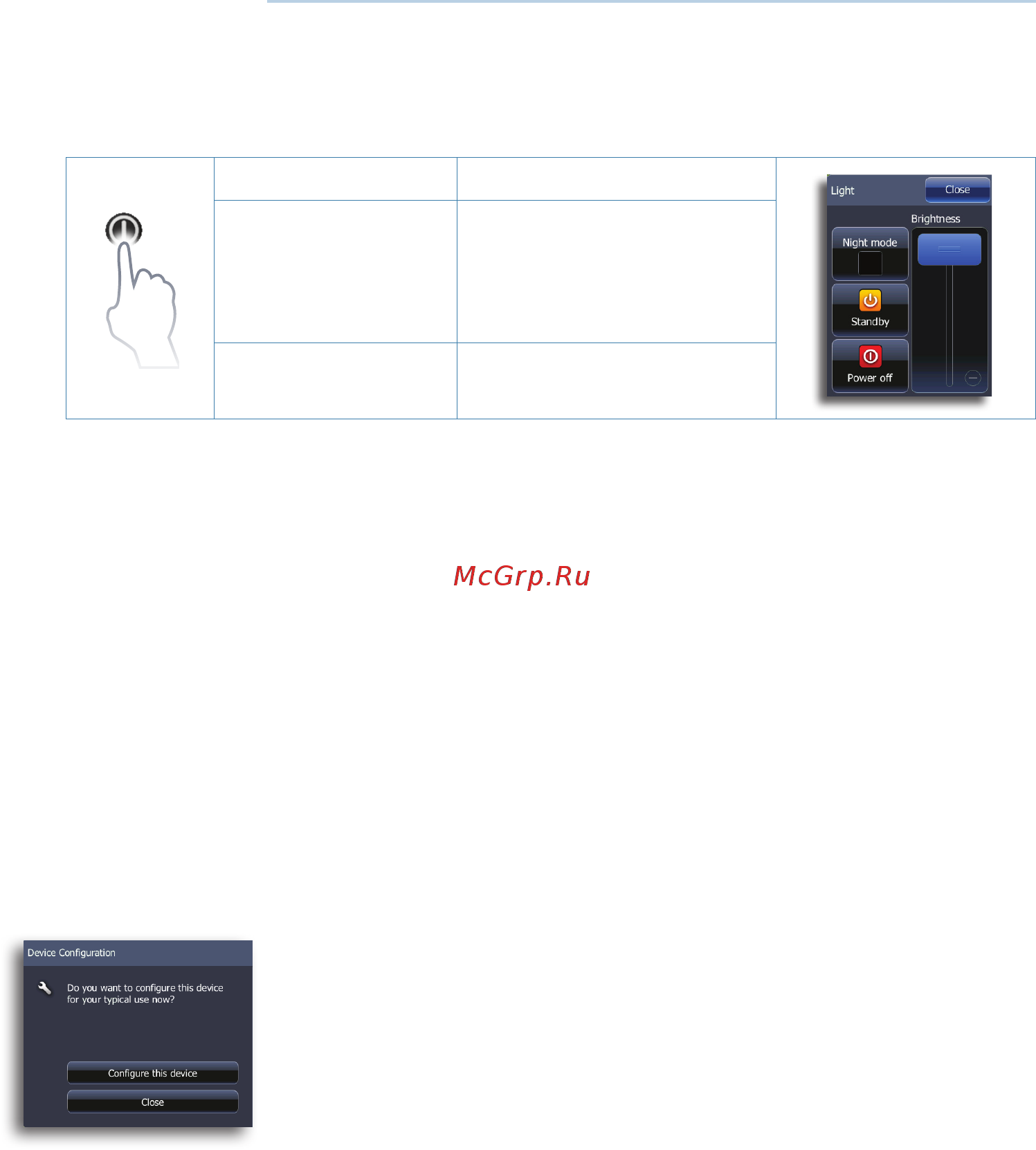

The power key
• Press and hold: Turn unit on/off
• Single press:
Display dialog for
brightness adjustment,
night mode, standby
mode and power off
• Repeated
presses:
Toggle preset brightness
levels (10 - 6 - 3- 1)
¼ Note: If the power key is released before shut-down is completed,
the power off is cancelled.
Night mode
Night mode optimizes the color palette for low light conditions.
¼ Note: Details on the chart may be less visible when Night mode is
selected.
Standby mode
When in Standby mode, the backlight for touchscreen and keys
are turned off to save power. The system will continue to run in the
background. To switch from Standby mode to normal operation,
press the power key.
First time startup
The device configuration dialog appears when you start up the unit
for the first time. Tap Close to manually configure settings.
Using the touchscreen
Basic touchscreen operation on the different pages is shown in the
table.
The Pages section later in this manual has more information about
page-specific touchscreen operation.
2
