10 |
Basic Operation | Lowrance HDS Gen2 Touch
Operation Menu/Dialogs
Pages
Chart Radar
Tap Select/toggle item Activate cursor
Press and
hold
n/a Activate cursor assist mode
Drag
Adjust slider value
Scroll dialog
Hide page menu
(Drag right)
Pan chart
(any direction) Move cursor

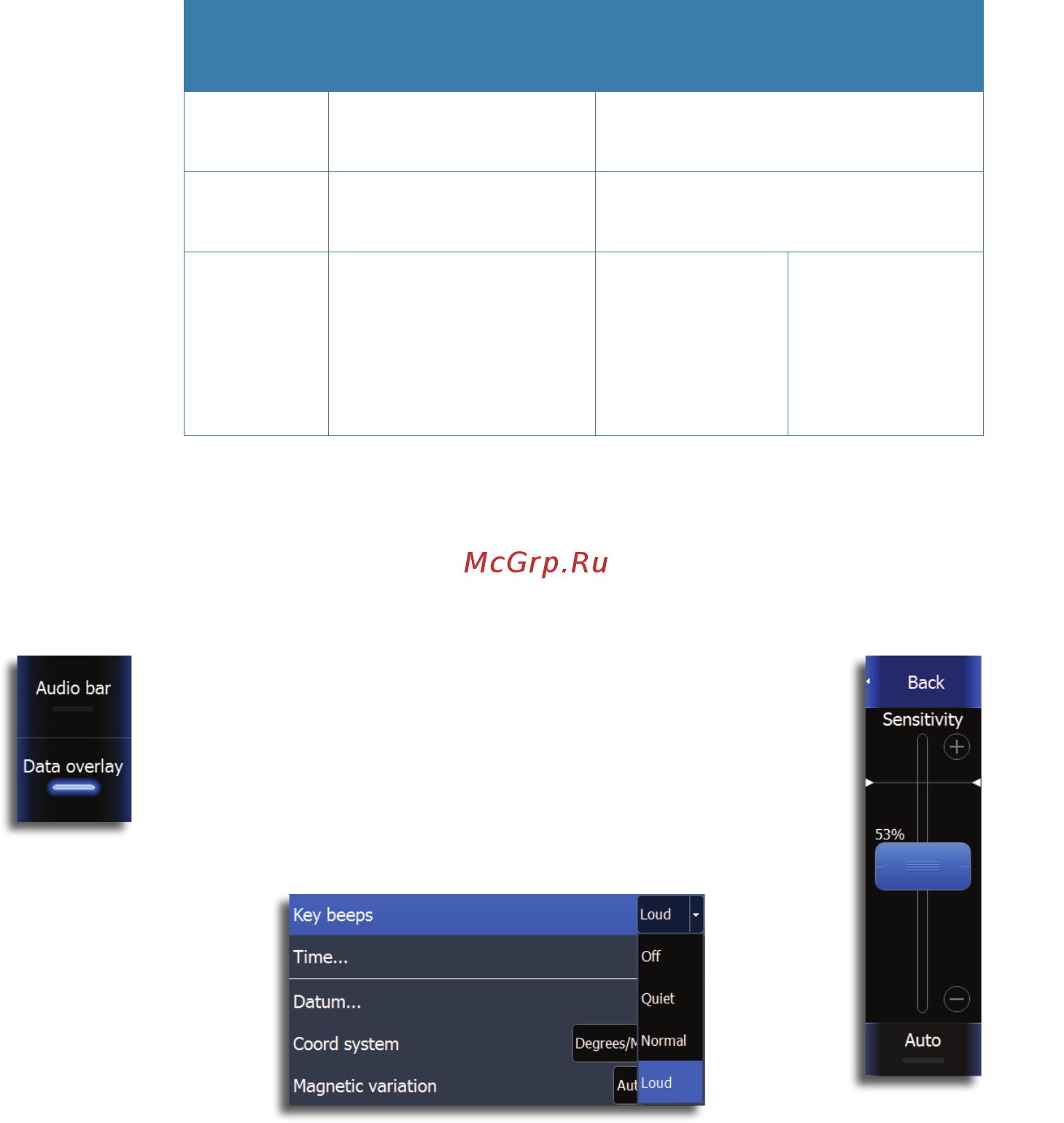

Menus
Menus are used to operate the system and to adjust settings.
• You select a menu item and toggle on/off menu check boxes by
tapping the selected item.
• You adjust slider bar values by dragging your finger
on the slide bar. Minor adjustments can be made by
tapping above or below the slider bar.
• Drop-down menu items are selected by tapping the
item and then the selected value.

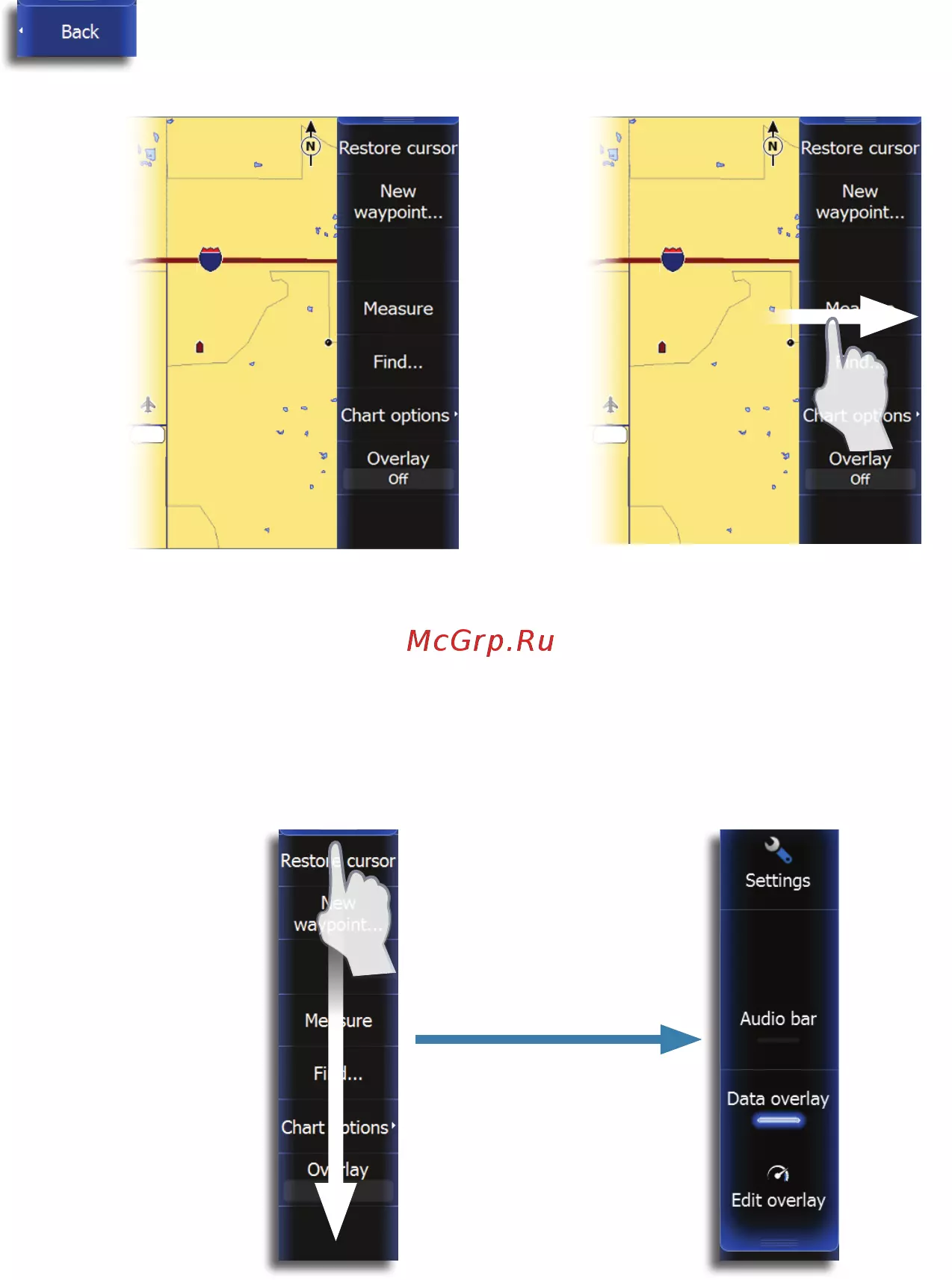

Page menus
Page menus for each operation mode are on the right side of the
screen.
Page menus can be hidden to allow pages to be displayed full
screen. Drag the menu to the right to hide the menu.
¼ Note: When the cursor is active, some features on page menus will
be replaced with cursor mode features.
Slide bar
Dropdown menu
Toggle menu
