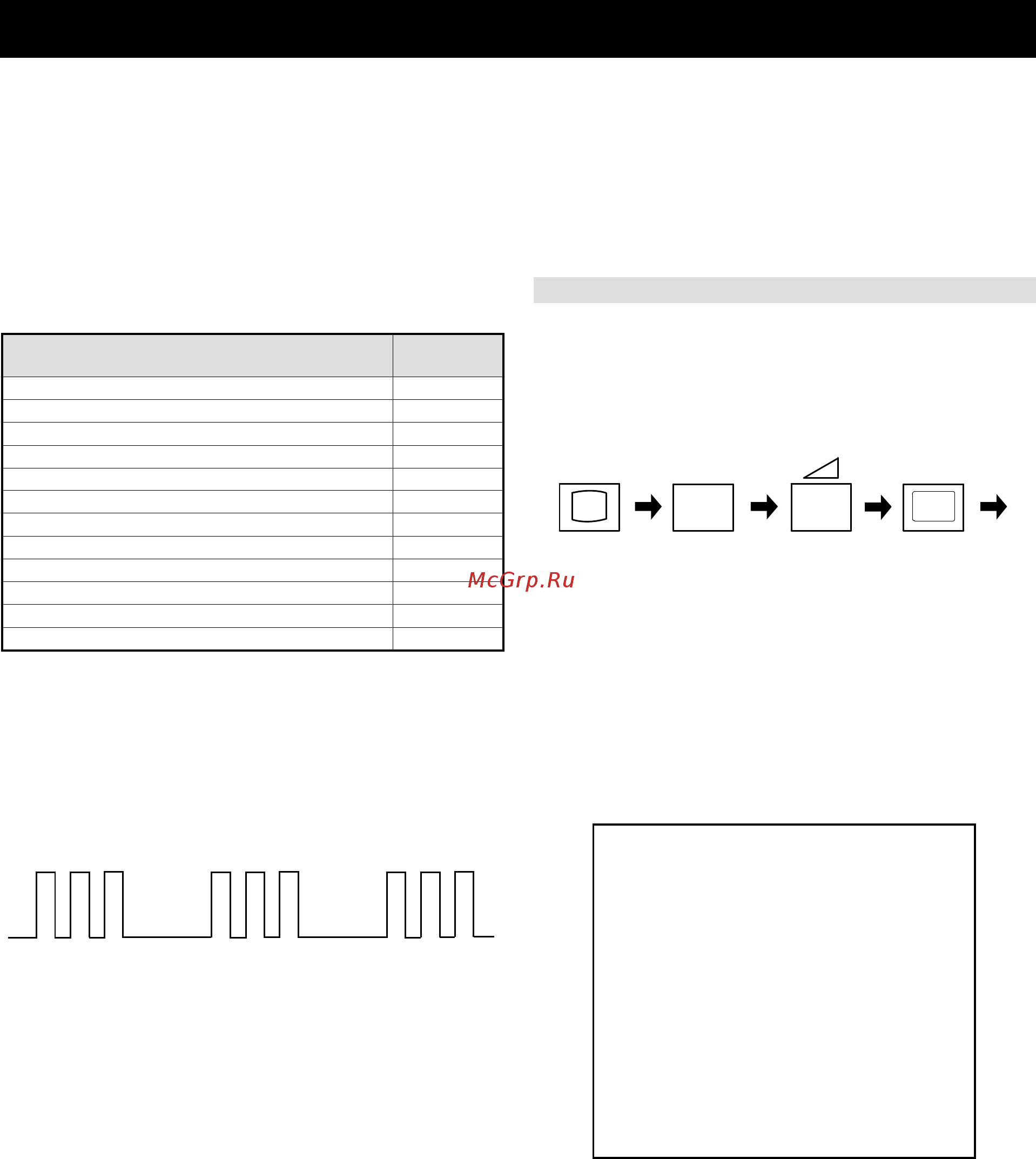

FE 2 SELF DIAGNOSTIC SOFTWARE The identification of errors within the FE 2 chassis is triggered in one of two ways1 Busy or 2 Device failure to respond to DC In the event of one of these situations arising the software will first try to release the bus if busy Failure to do so will report with a continuous flashing LED and then communicate with each device in turn to establish if a device is faulty If a device is found to be faulty the relevant device number will be displayed through the LED Series of flashes which must be counted See table 1non fatal errors are reported using this method Each time the software detects an error it is stored within the NVM See Table 2 How to enter Into Table 2 Table 1 LED Code 00 01 02 03 04 05 06 07 08 OS 10 11 Error Message No error Reserved OCP Over Current Protection Not Used No Vertical Sync IKR Error at power on IIC bus dock and or data lines low at power on NVM no IIC bus acknowledge at power on Not Used Tuner no acknowledge at power on Sound Processor Error Jungle controller 8 volts error 1 Turn on the main power switch of the TV set and enter into the Stanby Mode 2 Press the following sequence of buttons on the Remote Commander 3 The following table will be displayed indicating the error count Flash Timing Example e g error number 3 Table 2 StByLED ON ON ON ERROR MENU E02 E03 E04 E05 E06 E07 E08 E09 ЕЮ E11 OCP OVP N A VSYNC IKR IIC NVM JUNGLE TUNER SOUNDP 8V 0 255 0 255 0 255 0 255 0 255 0 255 0 255 0 255 0 255 0 255 WORKING TIME HOURS MINUTES Note To clear the error count data press 80 on the Remote commander 0 0 0 0 0 0 0 0 0 0 2 11
