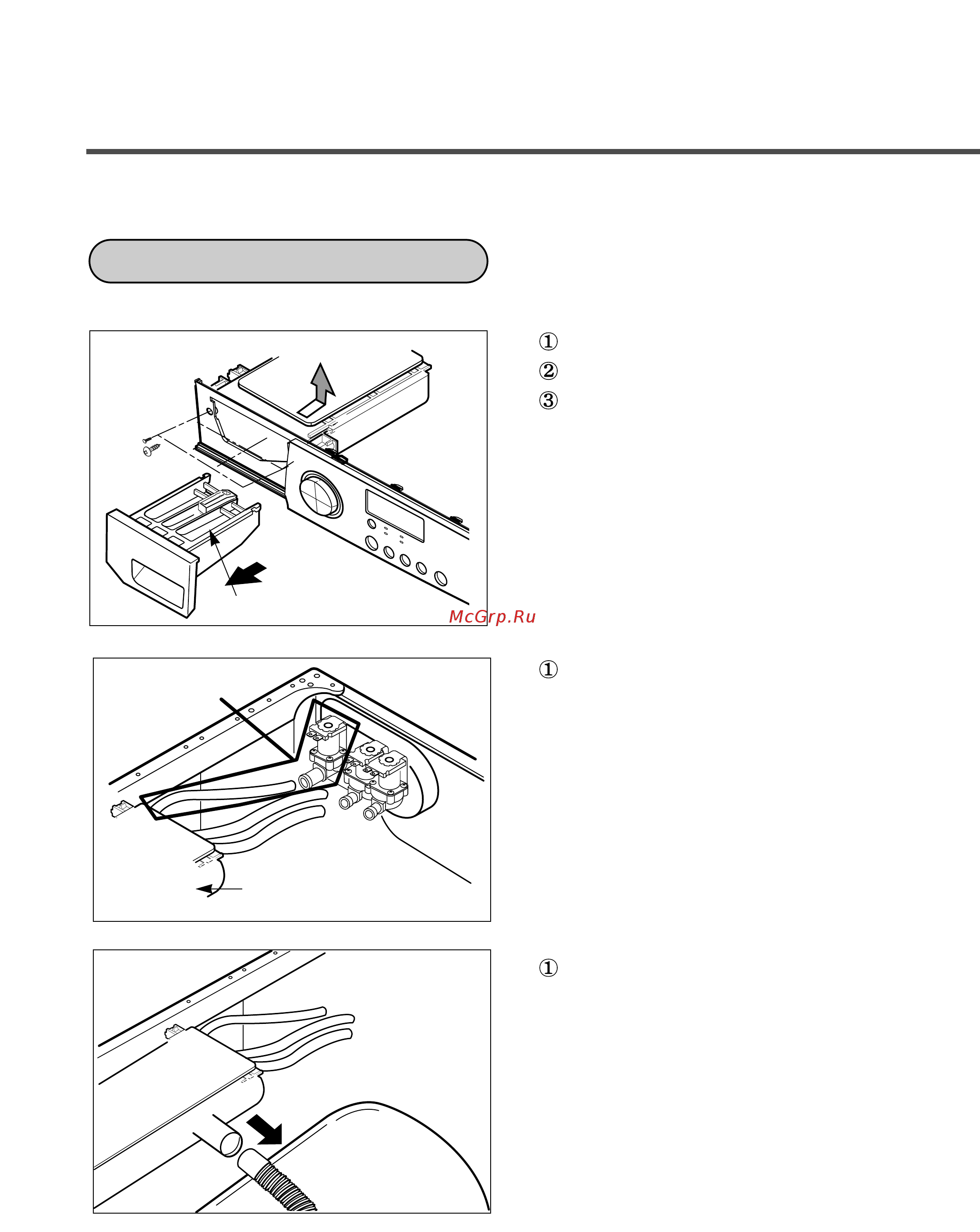

LG WD-12200 ND [25/34] Dispenser assembly
![LG WD-12200 ND [25/34] Dispenser assembly](/views2/1301726/page25/bg19.png)
25
Disassemble the top plate assembly.
Pull out the drawer to arrow direction.
Unscrew 2 screws.
The hose clamps and the hose are disassembled.
The ventilation bellows and the water inlet bellows are
disassembled on the tub.
Option
DISPENSER ASSEMBLY
DISPENSER ASSEMBLY
DRAWER
