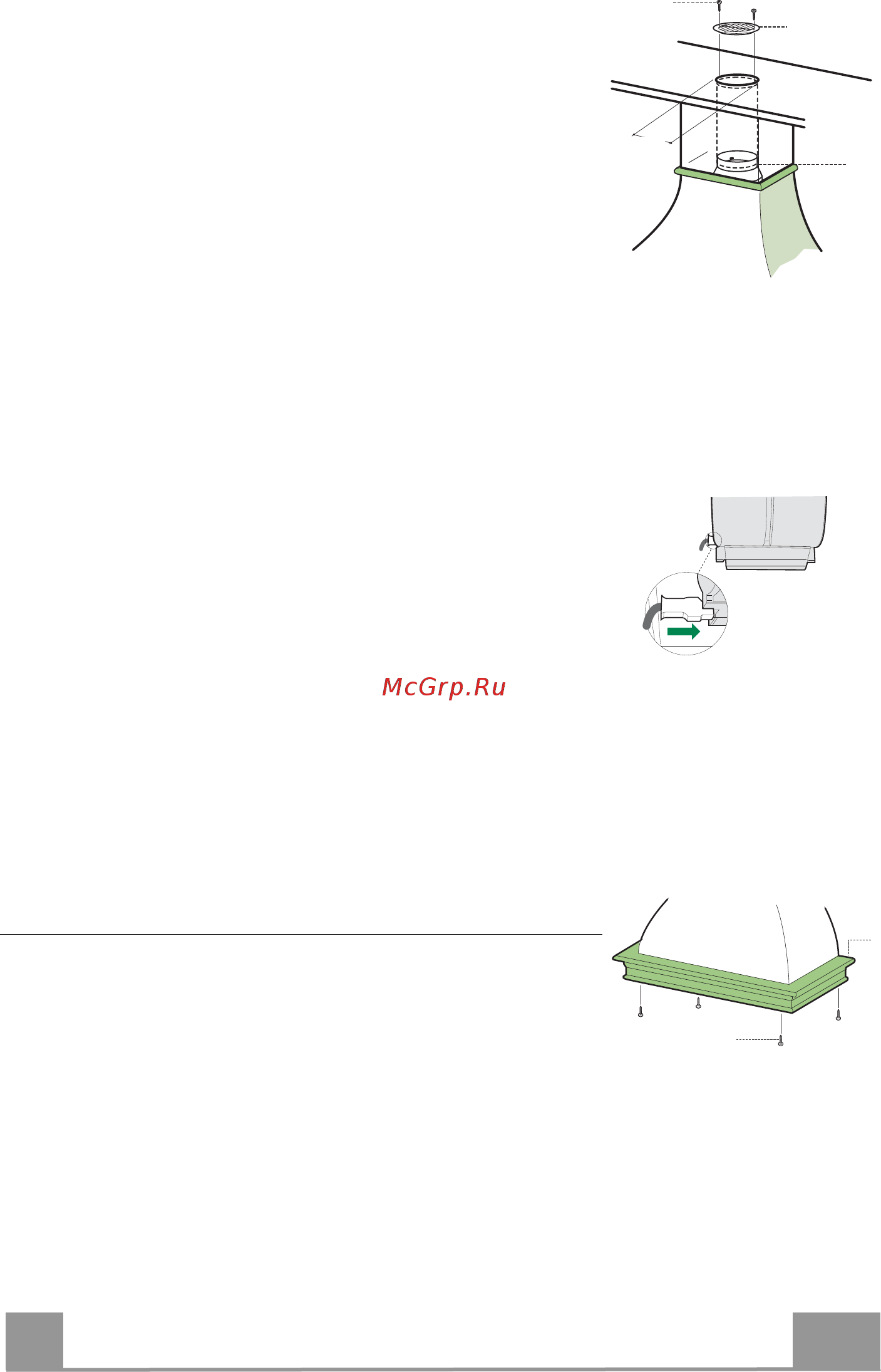

RECIRCULATION VERSION AIR OUTLET

• Cut a hole ø 125 mm in any shelf that may be positioned over

the hood.

• Insert the reducer flange 9 on the hood body outlet.

• Connect the flange to the outlet on the shelf over the hood by

using a flexible or rigid pipe ø120 mm.

• Fix the pipe in position using sufficient pipe clamps (not sup-

plied).

• Fix the air outlet grid 8 on the recirculation air outlet by using

the 2 screws 12e (2,9 x 9,5) provided.

• Ensure that the activated charcoal filters have been inserted.

ø 125

12e

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch hav-

ing a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Maintenance) being

sure that the connector of the feeding cable is correctly inserted

in the socket placed on the side of the fan.

Fitting Shelf frame

• Rest the shelf frame 10 (optional) over the bottom edge of the

hood body, aligning the fixing holes.

• Fix from below using the 4 screws 12n (3.5 x 16) provided..

12n
