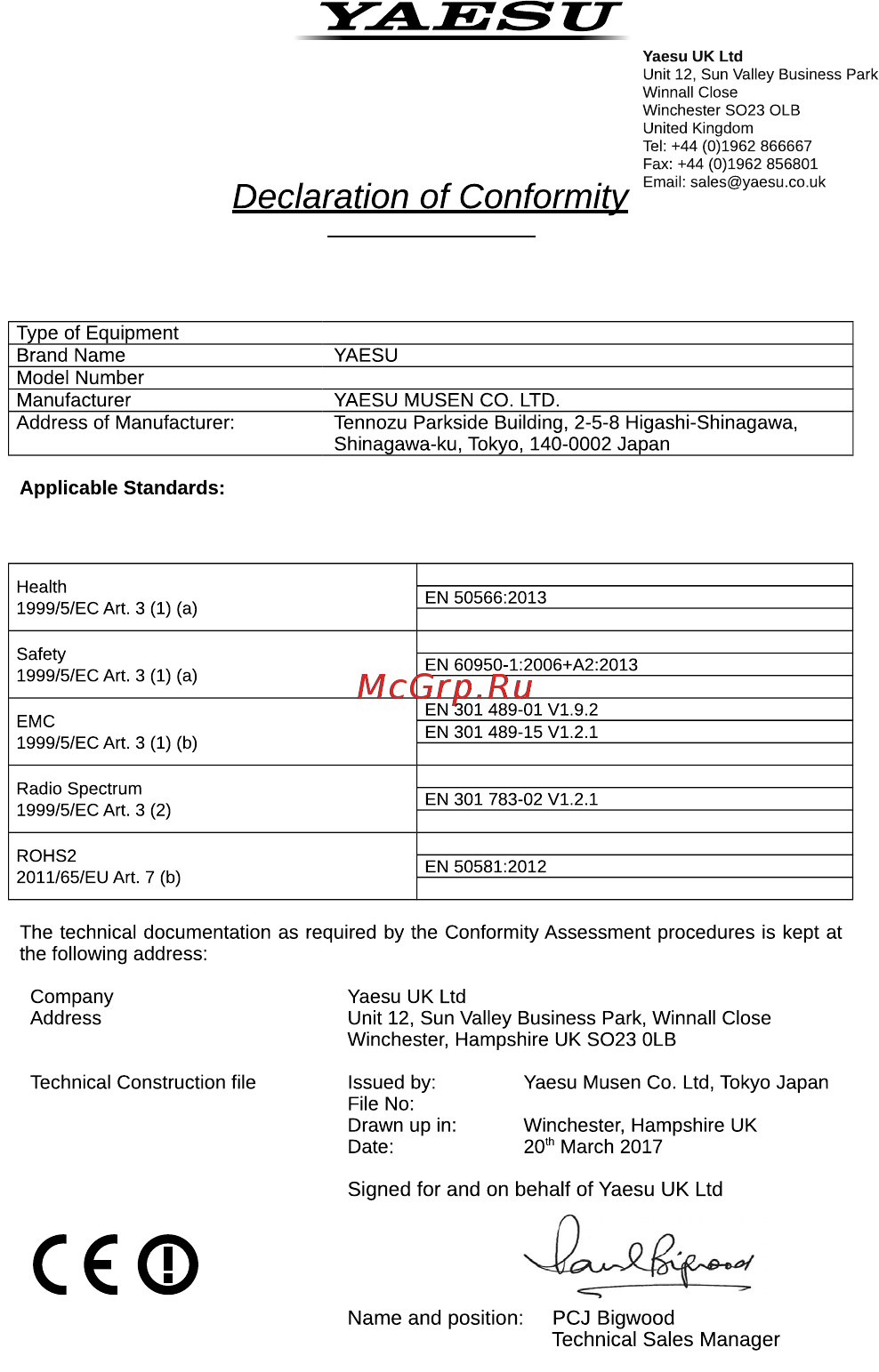

FT-25E
Yaesu UK Ltd. certifies and declares, under our sole responsibility, that the following equipment complies
with the essential requirements of the Directive 1999/5/EC and 2011/65/EU.
This equipment is tested to, and conforms to the essential requirements of the directive, as included
in the following standards:
Nr. YUK-DOC-0305-17
YETA00439
144MHz FM Transceiver
