3. Instructions

(1) Focusing

1 Look through the eyepiece with your eye positioned about 10 cm (4 in) away from the eyepiece to see the BDC reticle (Fig. 3-1)

or the Duplex reticle (Fig. 3-2). Be sure your eye is positioned with proper alignment and with proper eye relief, otherwise the

view will “black out.”

2 Point the objective end of the scope at the sky (NOT point it at the sun) or at a plain unpatterned wall.

3 Turn the eyepiece adjustment counter-clockwise and then turn it clockwise until the reticle appears sharp.

(2) Magnification

• The PROSTAFF 7 Riflescope has variable magnification. For details, see “2. Specifications”.

To change powers, rotate the power selector ring until the desired magnification appears adjacent to the power index dot.

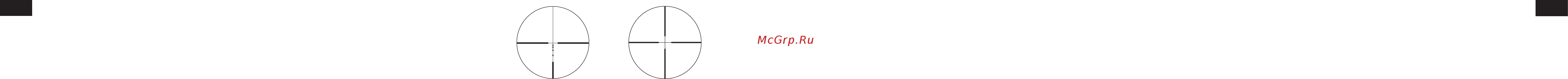

BDC reticle

Duplex reticle

Fig. 3-1 Fig. 3-2

(3) Adjustment of the riflescope

Sighting through the riflescope, align the rifle with your aiming point on the target and shoot a trial round. If the bullet does not hit the aiming point, adjust the elevation and windage as follows:

• If the bullet hits under the aiming point, turn the elevation adjustment turret (counter-clockwise) in the direction of the arrow marked “U” for up. If the bullet hits high, turn the elevation adjustment turret (clock-

wise) in the direction of the arrow marked “D” for down.

• If the bullet hits to the right of the aiming point, turn the windage adjustment turret (clockwise) in the direction of the arrow marked “L” for left. If the bullet hits to the left of the aiming point, turn the windage

adjustment turret (counter-clockwise) in the direction of the arrow marked “R” for right.

• After the reticle has been adjusted to the point of impact, replace the turret cap for both the windage and elevation adjustment turrets.
