Aerial Installation

If you select the AERIAL option in the Search Type screen, the TV set will search for digital terrestrial TV (DVB-T)

broadcasts.

NOTE: You can press the “MENU” button to cancel.

After all the available stations are stored, the Channel List will be displayed on the screen. If you like to sort the

channels according to the LCN (*), please select “Yes” and then press OK.

Press the “MENU” button to quit the channel list and watch TV.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence (if

available).

Cable Installation

If you want to install DVB-C channels, select the “CABLE” option and press the “OK” button on the remote control to

continue. To continue, please select “YES” and press “OK”. To cancel the operation, select “NO” and press “OK”.

Aerial & Cable installation

Using this option TV will search for all available TV channels DVB-C + DVB-T plus Analog and install them on a single

list.

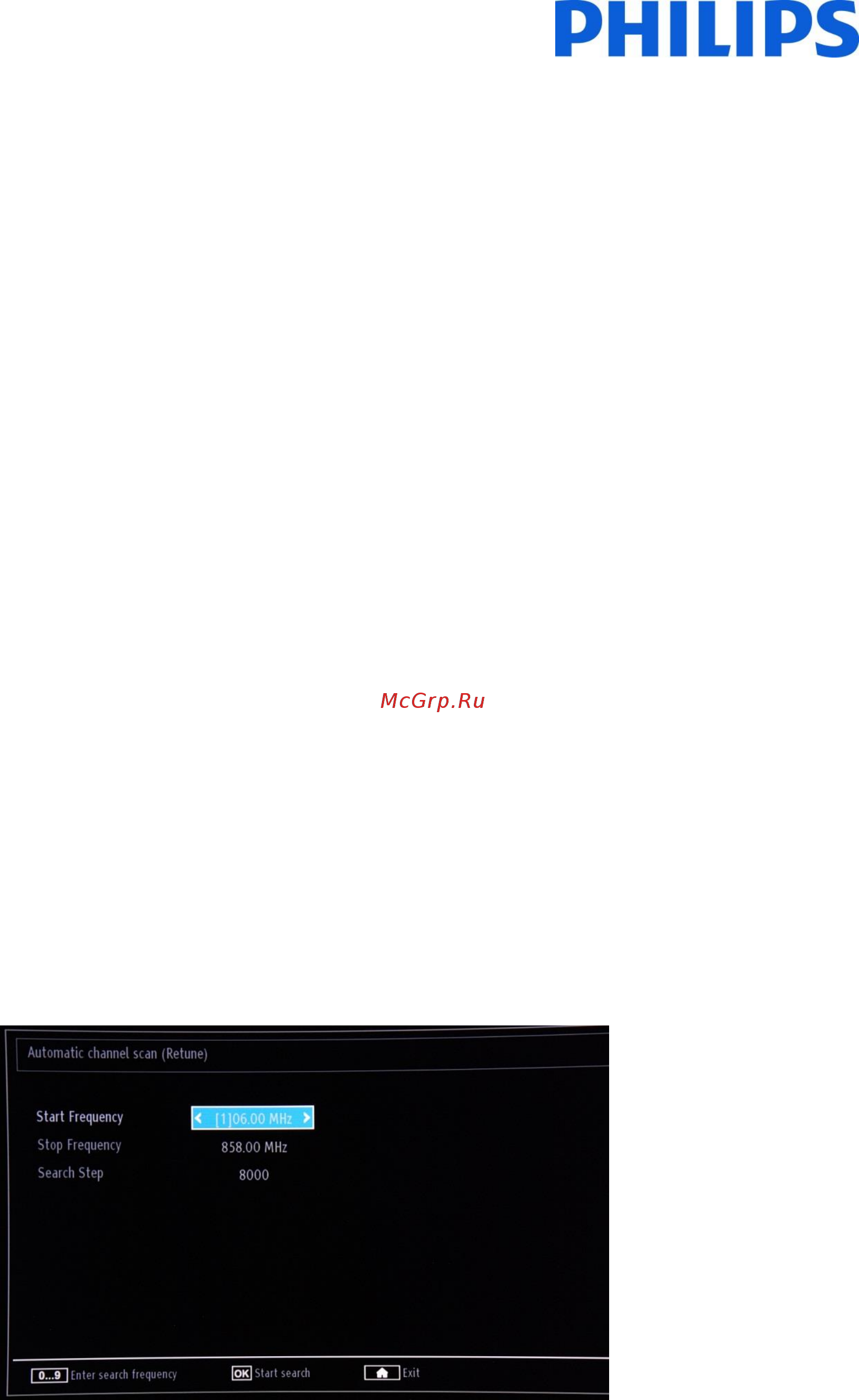

You can select frequency ranges from this screen. For highlighting lines, use the “▼“or “▲” buttons. You can enter

the frequency range manually by using the numeric buttons on the remote control. Set the Start and Stop Frequency

as desired by using the numeric buttons on the remote control. After this operation, you can set the Search Step as

8000 KHz or 1000 KHz.

If you select 1000 KHz the search will take longer, since the TV needs to check more frequencies. Depending on your

Country selection in the first time installation, A 250 KHz search step option might be available on the Network

Channel Scan screen. Note that if you perform the search with 250 KHz option, the search process could take longer.

Press “OK” to start the installation process. During this progress the bar will fill and found channels will be added to

the list.
