21

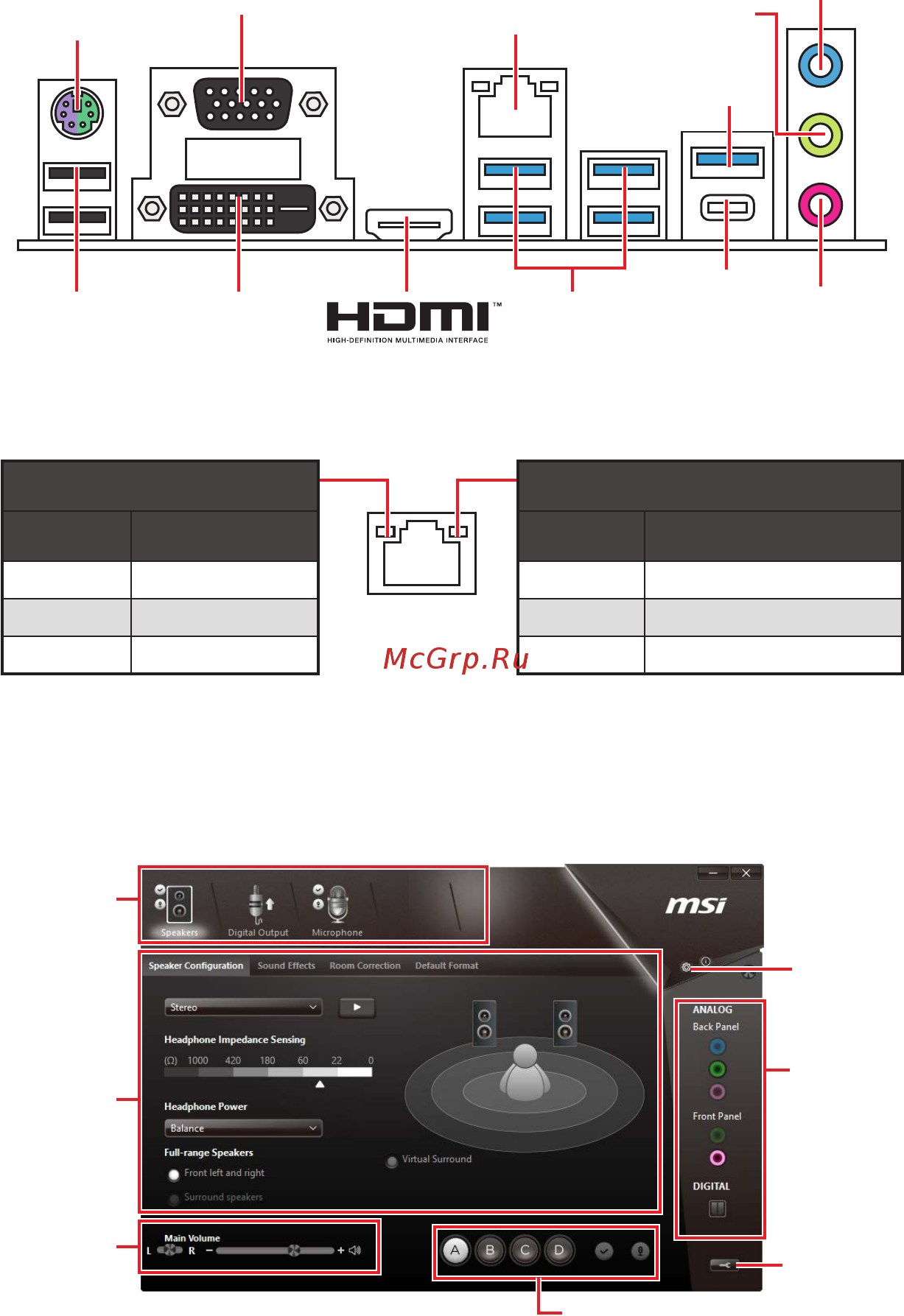

Rear I/O Panel
Rear I/O Panel
PS/2
LAN
USB 2.0
DVI-D
VGA
Line-in
Line-out
Mic in
USB 3.1
Gen2
Type-C
USB 3.1 Gen2
USB 3.1 Gen1
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Jack Status
Device
Selection
Connector
Settings
Profiles
Main Volume
Application
Enhancement
Advanced
Settings
Realtek HD Audio Manager
After installing the Realtek HD Audio driver, the Realtek HD Audio Manager icon will
appear in the system tray. Double click on the icon to launch.
