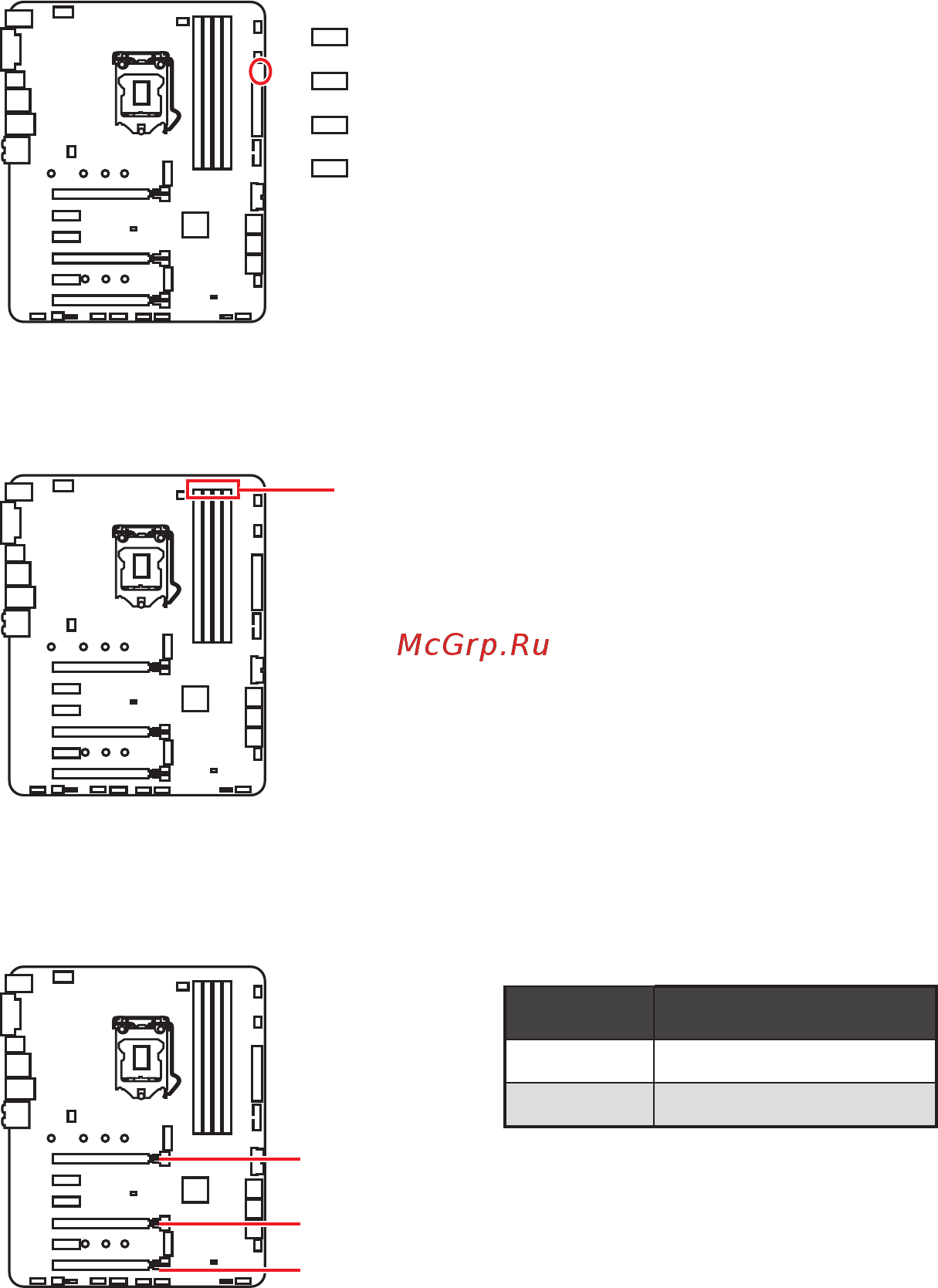

Onboard LEDs
Onboard LEDs
PCI_E1 LED
PCI_E4 LED
PCI_E6 LED
EZ Debug LEDs
These LEDs indicate the status of key components during booting process. When an
error is occurred, the corresponding LED stays lit until the problem is solved.
PCIe x16 slot LEDs
These LED indicate the PCIe x16 slots status.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected
or fail.
LED Color PCIe slot speed status
Red x16
White x8, x4, x1
DIMM LEDs
DIMM LEDs
These LED indicate the memory modules are installed.
