92
Intel® Optane™ Memory Configuration

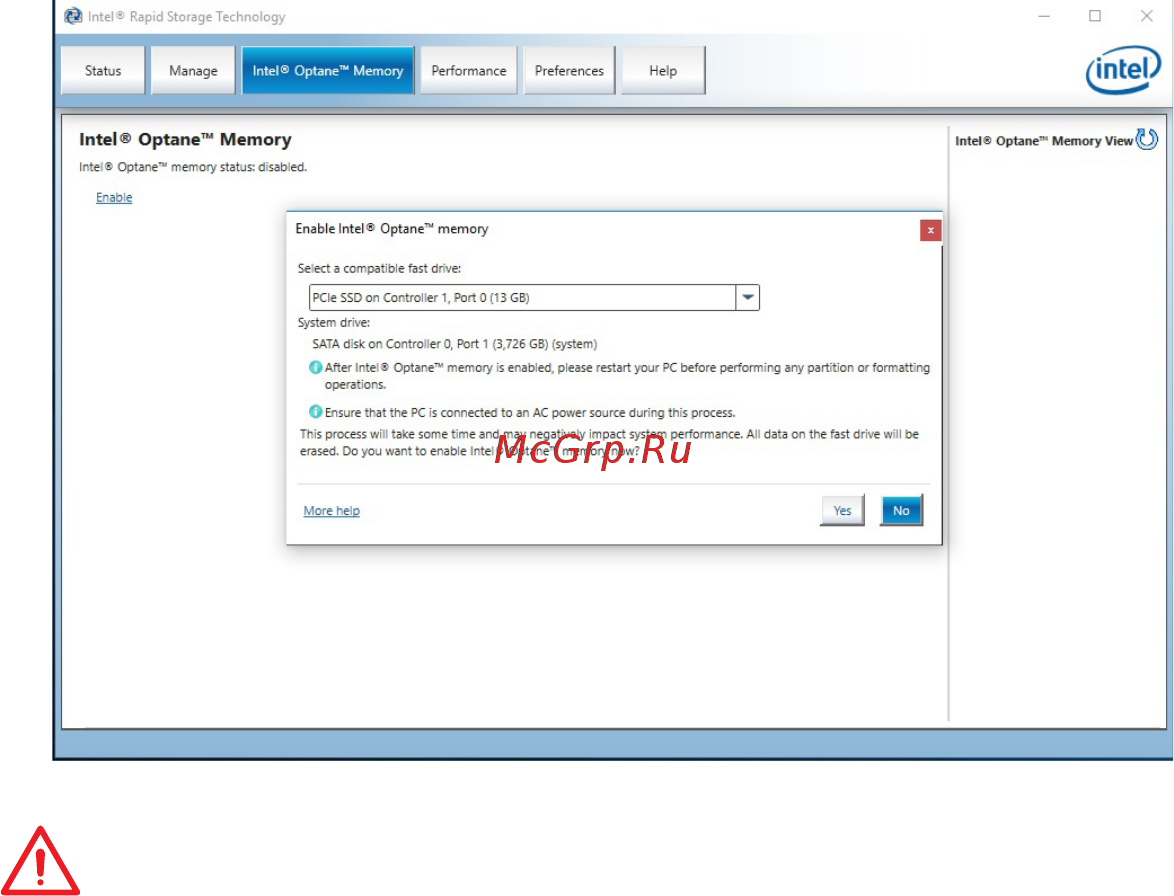

5. Enable Intel
®
Optane™ Memory.
Enable Intel
®
Optane™ Memory via the Intel
®
Optane™ memory application
(auto-launches upon reboot).
Click Yes in the dialog.
Reboot System.
WARNING
Once you enable Intel
®
Optane™ memory, in order to prevent seriously damage your
operating system, please follow the cautions listed below.
y
DO NOT set the SATA mode back to AHCI in BIOS.
y
DO NOT revert back to older version of the BIOS.
y
DO NOT remove the Intel
®
Optane™ memory module.
y
DO NOT replace the CPU that is not supported by Intel
®
Optane™ Memory.
