72
Software Description

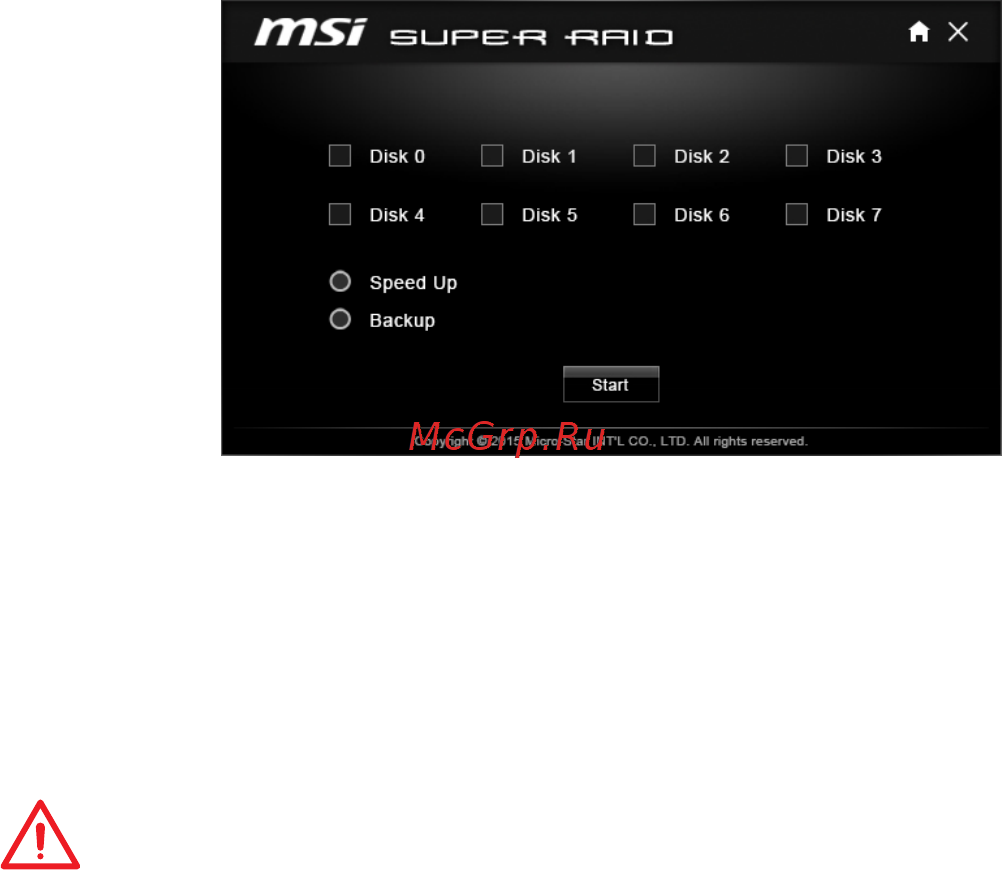

Super RAID
This utility allows you to create a Super RAID in Windows system.
To create a Super RAID:
1. Use checkboxs to select the disks you want included in your RAID.
2. Choose Speed Up or Backup for RAID type.
y Speed Up = RAID0
y Backup = RAID1
3. Click Start.
4. When prompt Finish!, click OK.
Important
Super RAID can't include the system disk.
