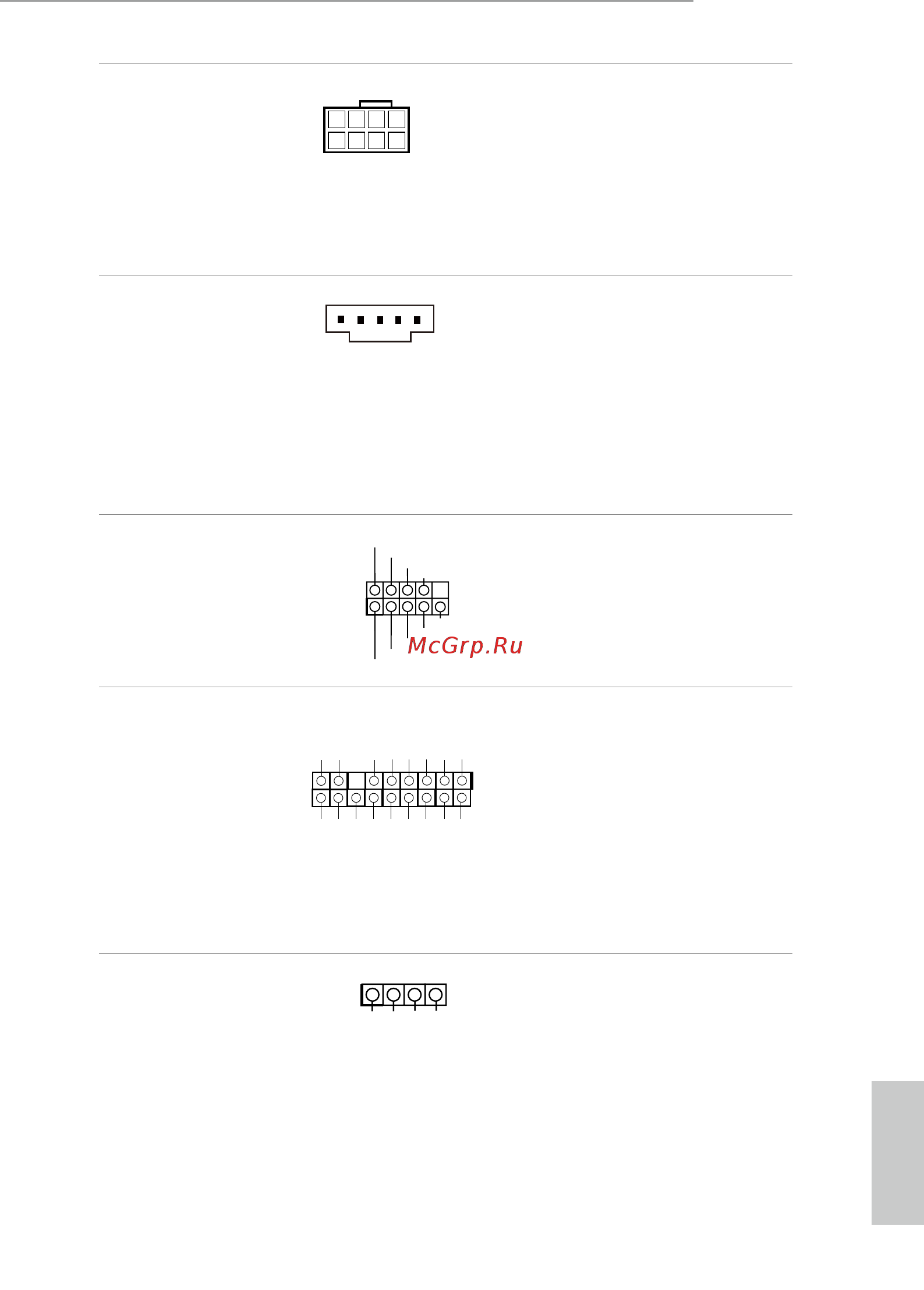

![ASRock Z370 Extreme4 [31/100] English](/views2/1307856/page31/bg1f.png)
English
25
Z370 Extreme4
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.8, No. 1)
is motherboard
provides an 8-pin ATX
12V power connector. To
use a 4-pin ATX power
supply, please plug it along
Pin 1 and Pin 5.
underbolt AIC
Connectors
(5-pin TB1)
(see p.8, No. 23)
Please connect a underbolt™
add-in card (AIC) to the
underbolt AIC connector via
the GPIO cable.
*Please install the underbolt™
AIC card to PCIE6 (default
slot).
Serial Port Header
(9-pin COM1)
(see p.8, No. 17)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.8, No. 21)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
RGB LED Header
(4-pin RGB_LED)
(see p.8, No. 24)
RGB header is used to connect
RGB LED extension cable which
allows users to choose from vari-
ous LED lighting eects.
Caution: Never install the RGB
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
*Please refer to page 49 for
further instructions on on this
header.
4 1
8 5
1
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
12V GRB
1
1
GN D
SM B_DAT A_MAIN
LA D2
LA D1
GN D
S_ PWRDW N #
SE RIRQ #
GN
D
P CICL K
P CIRST
#
LA D3
+3 V
LA D0
+3VS B
GN D
FR AM E
SM B_CLK _MAIN
