25
English
X99 OC Formula/3.1

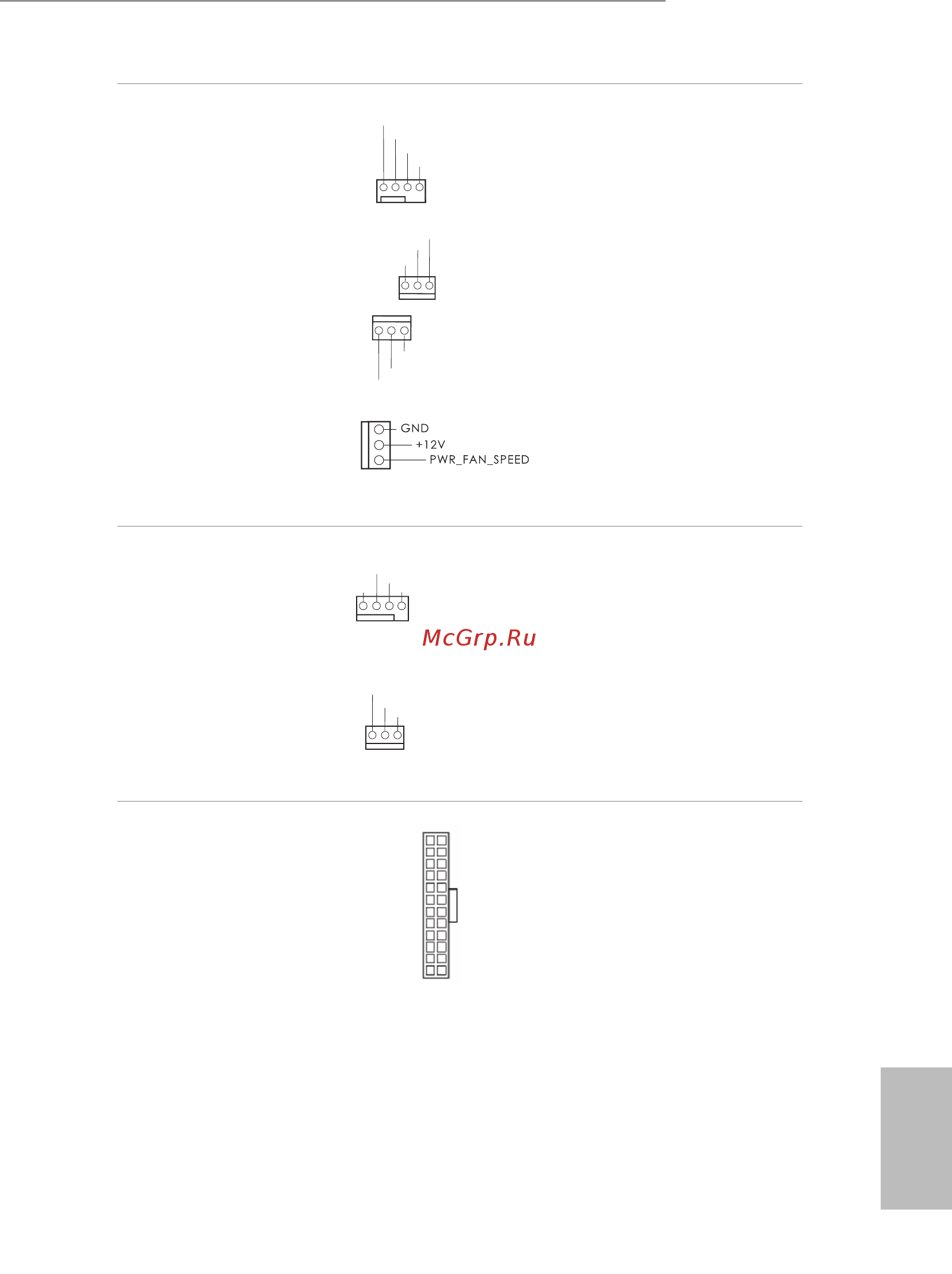

Chassis and Power Fan
Connectors
(4-pin CHA_FAN1)
(see p.7, No. 40)
(3-pin CHA_FAN2)
(see p.7, No. 36)
(3-pin CHA_FAN3)
(see p.7, No. 20)
(3-pin PWR_FAN1)
(see p.7, No. 46)
Please connect fan cables
to the fan connectors and
match the black wire to
the ground pin. CHA_
FAN fan speed can be
controlled through UEFI
or Formula Drive.
CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.7, No. 5)
(3-pin CPU_FAN2)
(see p.7, No. 8)
is motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.7, No. 17)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
GND
FAN_VOLTAG
E
CHA_FAN_SPEED
GN
D
CPU_FA
N_SPEED
FAN_VOLTAGE
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
12
1
24
13
GND
FAN_VOLTAGE
CHA
_
FAN
_
SPEED
