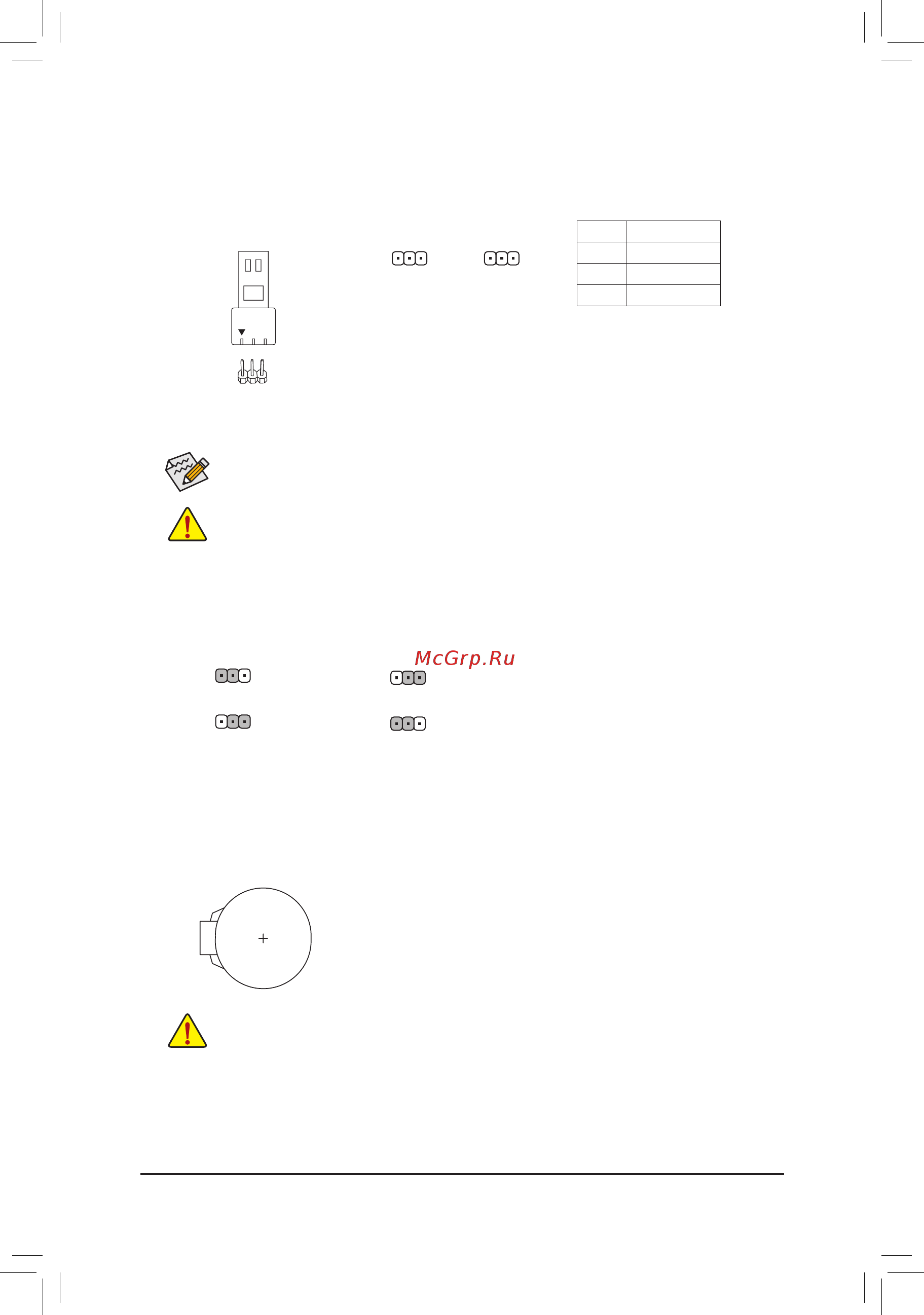

Gigabyte Z370 AORUS Gaming 5 [19/60] D_led1 d_led2 digitalledstripheaders

11) DLED_V_SW1/DLED_V_SW2(DigitalLEDStripPowerSelectJumpers)

The jumpers allow you to select the supply voltage of the D_LED1 and D_LED2 headers. Be sure to

verify the voltage requirements of your digital LED strip and set the correct voltage with this jumper before

connection. Incorrect connection may lead to the damage of the LED strip.

1-2: 5V

2-3: 12V

DLED_V_SW1 DLED_V_SW2

1-2: 5V

2-3: 12V

10) D_LED1/D_LED2(DigitalLEDStripHeaders)

The headers can be used to connect a standard 5050 digital LED strip, with maximum power rating of 2A

(12V or 5V) and maximum length of 5m or maximum number of 300 LEDs.

Pin No. Denition

1 V

2 D

3 G

Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

Connect your digital LED strip to the header. There are 12V and 5V

digital LED strips. Be sure to verify the voltage requirements of your

digital LED strip and set the DLED_V_SW1 and DLED_V_SW2 jumpers

accordingly. The power pin (marked with a triangle on the plug) of the

LED strip must be connected to Pin 1 of the digital LED strip header.

Incorrect connection may lead to the damage of the LED strip.

Digital LED Strip

For how to turn on/off the lights of the LED strip, refer to the instructions on in Chapter 2, "BIOS

Setup," "Peripherals."

D_LED1 D_LED2

12) BAT (Battery)

The battery provides power to keep the values (such as BIOS congurations, date, and time information)

in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low

level, or the CMOS values may not be accurate or may be lost.

You may clear the CMOS values by removing the battery:

1. Turn off your computer and unplug the power cord.

2. Gently remove the battery from the battery holder and wait for one minute.

(Or use a metal object like a screwdriver to touch the positive and negative

terminals of the battery holder, making them short for 5 seconds.)

3. Replace the battery.

4. Plug in the power cord and restart your computer.

• Always turn off your computer and unplug the power cord before replacing the battery.

• Replace the battery with an equivalent one. Damage to your devices may occur if the battery is

replaced with an incorrect model.

• Contact the place of purchase or local dealer if you are not able to replace the battery by yourself

or uncertain about the battery model.

• When installing the battery, note the orientation of the positive side (+) and the negative side (-)

of the battery (the positive side should face up).

• Used batteries must be handled in accordance with local environmental regulations.

- 19 -
