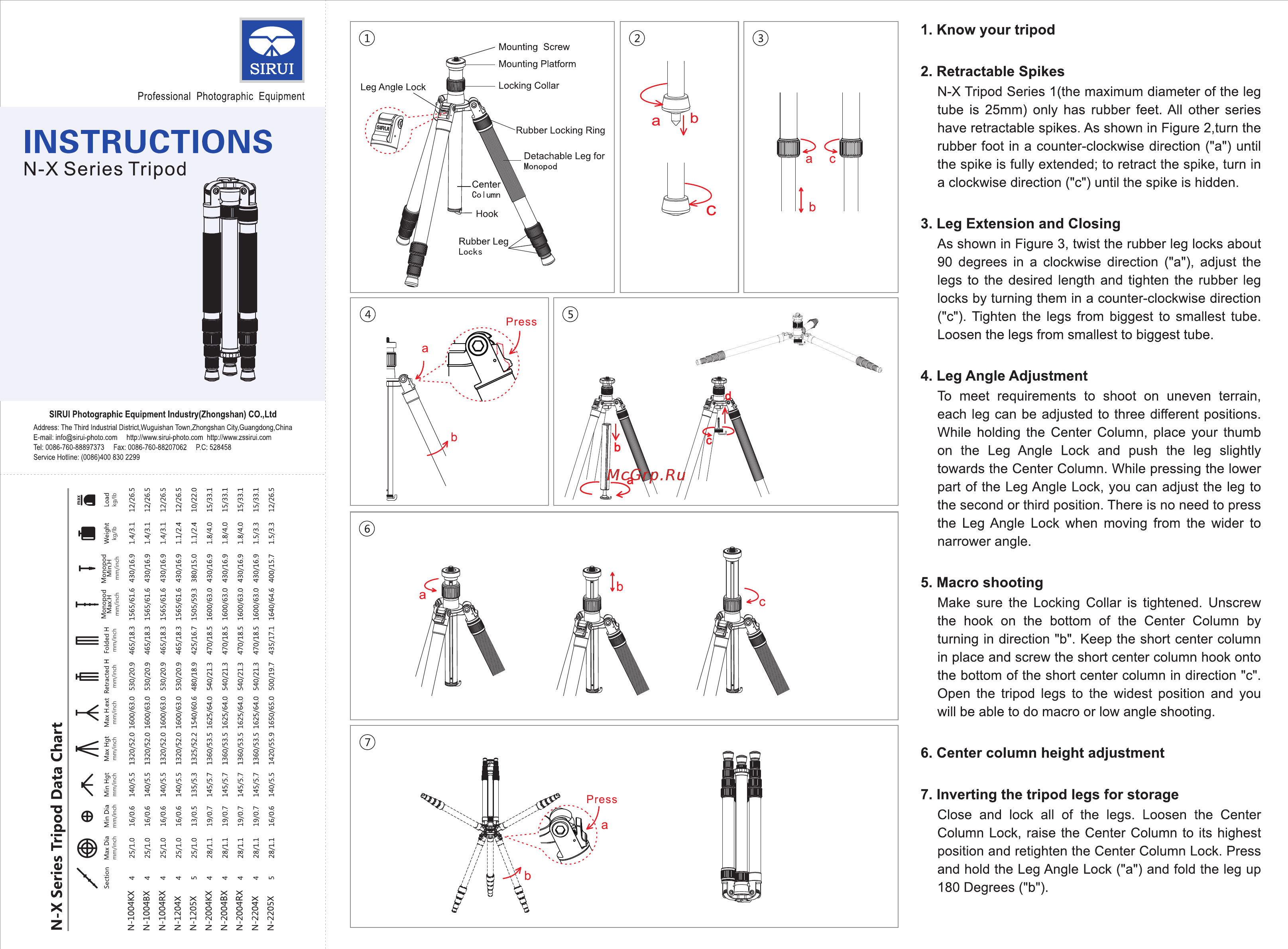

1 Know your tripod 2 Retractable Spikes Professional Photographic Equipment INSTRUCTIONS N X Series Tripod N X Tripod Series 1 the maximum diameter of the leg tube is 25mm only has rubber feet All other series have retractable spikes As shown in Figure 2 turn the rubber foot in a counter clockwise direction a until the spike is fully extended to retract the spike turn in a clockwise direction c until the spike is hidden 3 Leg Extension and Closing As shown in Figure 3 twist the rubber leg locks about 90 degrees in a clockwise direction a adjust the legs to the desired length and tighten the rubber leg locks by turning them in a counter clockwise direction c Tighten the legs from biggest to smallest tube Loosen the legs from smallest to biggest tube 4 Leg Angle Adjustment SIRUI Photographic Equipment Industry Zhongshan CO Ltd Address The Third Industrial District Wuguishan Town Zhongshan City Guangdong China E mail info sirui photo com http www sirui photo comhttp www zssirui com Tel 0086 760 88897373 Fax 0086 760 88207062 P C 528458 Service Hotline 0086 400 830 2299 To meet requirements to shoot on uneven terrain each leg can be adjusted to three different positions While holding the Center Column place your thumb on the Leg Angle Lock and push the leg slightly towards the Center Column While pressing the lower part of the Leg Angle Lock you can adjust the leg to the second or third position There is no need to press the Leg Angle Lock when moving from the wider to narrower angle 5 Macro shooting Make sure the Locking Collar is tightened Unscrew the hook on the bottom of the Center Column by turning in direction b Keep the short center column in place and screw the short center column hook onto the bottom of the short center column in direction c Open the tripod legs to the widest position and you will be able to do macro or low angle shooting 6 Center column height adjustment 7 Inverting the tripod legs for storage Close and lock all of the legs Loosen the Center Column Lock raise the Center Column to its highest position and retighten the Center Column Lock Press and hold the Leg Angle Lock a and fold the leg up 180 Degrees b
