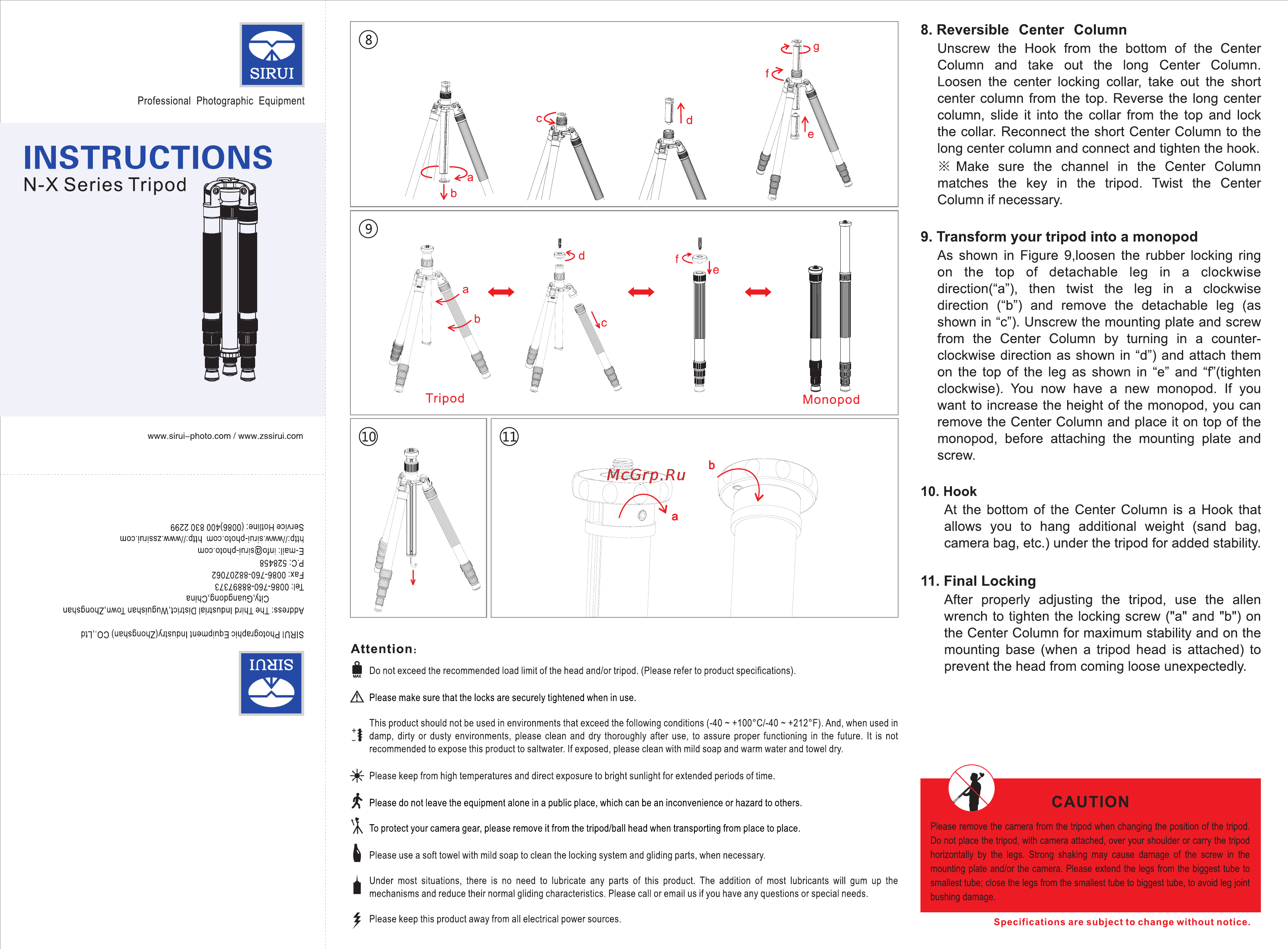

8 Reversible Center Column Unscrew the Hook from the bottom of the Center Column and take out the long Center Column Loosen the center locking collar take out the short center column from the top Reverse the long center column slide it Into the collar from the top and lock the collar Reconnect the short Center Column to the long center column and connect and tighten the hook Make sure the channel in the Center Column matches the key in the tripod Twist the Center Column if necessary Professional Photographic Equipment INSTRUCTIONS 9 Transform your tripod into a monopod As shown in Figure 9 loosen the rubber locking ring on the top of detachable leg in a clockwise direction a then twist the leg in a clockwise direction b and remove the detachable leg as shown in c Unscrew the mounting plate and screw from the Center Column by turning in a counter clockwise direction as shown in d and attach them on the top of the leg as shown in e and f tighten clockwise You now have a new monopod If you want to increase the height of the monopod you can remove the Center Column and place it on top of the monopod before attaching the mounting plate and screw www sirui photo com www zssirui com 10 Hook At the bottom of the Center Column is a Hook that allows you to hang additional weight sand bag camera bag etc under the tripod for added stability 6633 ose 00H9800 au OH aniAjag uioo njissz MMM du4 wootoioqd injis MMM duii Luoo oioqd injis ojui iew 3 89 839 0 d S90Z0388 09 9800 6888 9800 W Euiio BuopBuBng Xjig UBqsBuoqz uMOi uBqsinBn puisio BU snpu pjiqi aqi ssejppv 11 Final Locking P1Ï00 ueqs6uoi z Msnpu luewdinbg oiqdejBojopd mais Attention 6 Do not exceed the recommended load limit of the head and or tripod Please refer to product specifications After properly adjusting the tripod use the alien wrench to tighten the locking screw a and b on the Center Column for maximum stability and on the mounting base when a tripod head is attached to prevent the head from coming loose unexpectedly A Please make sure that the locks are securely tightened when in use This product should not be used in environments that exceed the following conditions 40 100 C 40 212 F And when used in damp dirty or dusty environments please clean and dry thoroughly after use to assure proper functioning in the future It is not recommended to expose this product to saltwater If exposed please clean with mild soap and warm water and towel dry Please keep from high temperatures and direct exposure to bright sunlight for extended periods of time CAUTION Please do not leave the equipment alone in a public place which can be an inconvenience or hazard to others X To protect your camera gear please remove it from the trlpod ball head when transporting from place to place Please remove the camera from the tripod when changing the position of the tripod Do not place the tripod with camera attached over your shoulder or carry the tripod Please use a soft towel with mild soap to clean the locking system and gliding parts when necessary horizontally by the legs Strong shaking may cause damage of the screw in the mounting plate and or the camera Please extend the legs from the biggest tube to Under most situations there is no need to lubricate any parts of this product The addition of most lubricants will gum up the smallest tube close the legs from the smallest tube to biggest tube to avoid leg joint mechanisms and reduce their normal gliding characteristics Please call or email us if you have any questions or special needs bushing damage i Please keep this product away from all electrical power sources Specifications are subject to change without notice
