Chapter 1: Before You Start

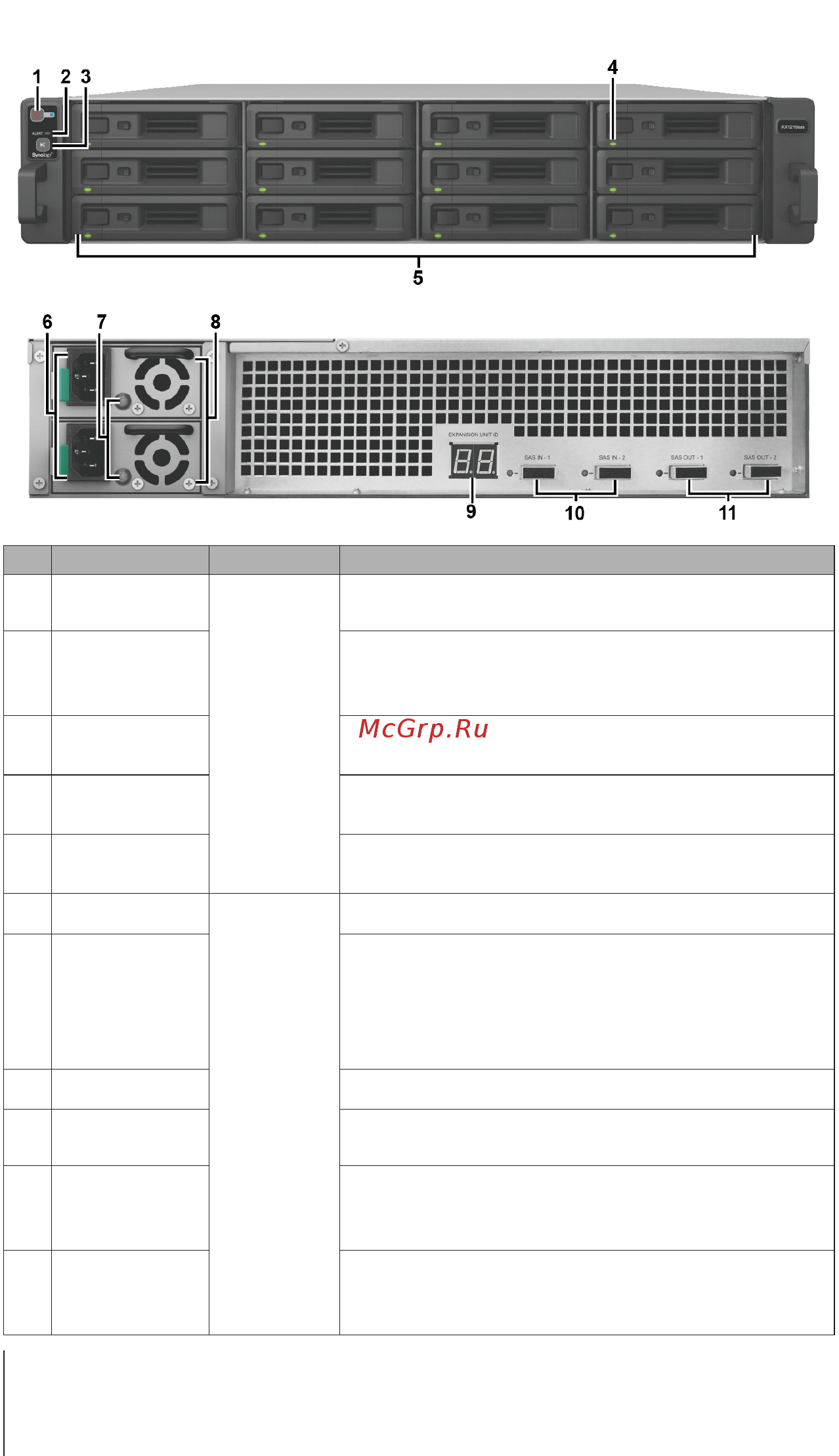

At a Glance
No. Article Name Location Description
1
Power Button
and Indicator
Front
Press to manually power on the expansion unit.
2
ALERT
Indicator
Displays warnings regarding fan or temperature
status. For more information, please see "Appendix
B: LED Indicator Table".
3
Beep Off Button
Press to deactivate the beeping sound that is
emitted when a malfunction occurs.
4
Drive Status
Indicators
Displays the status of drives. For more information,
please see "Appendix B: LED Indicator Table".
5
Drive Tray
Install drives (hard disk drives or solid state drives)
here.
6
Power Port
Back
Connect power cords here.
7
PSU Indicator
and
Beep Off Button
Displays the status of the power supply unit (PSU).
Press to deactivate the beeping sound that is
emitted when a malfunction occurs. For more
information, please see "Appendix B: LED Indicator
Table".
8
PSU Fan
Disposes of excess heat and cools the PSU.
9
Expansion Unit
ID Indicator
Indicates the ID number of the expansion unit.
10
SAS-IN Port
and Indicator
Connects to the SAS-OUT port of a RackStation
or another expansion unit. For more information,
please see "Appendix B: LED Indicator Table".
11
SAS-OUT Port
and Indicator
Connects to the SAS-IN port of another expansion
unit. For more information, please see "Appendix B:
LED Indicator Table".
