Vitek VT-4003 [14/20] English
![Vitek VT-4003 [14/20] English](/views2/1030925/page14/bge.png)
2. При подключении аудио/видео кабелей необходимо ориентироваться на цветное оформление разъемов.
Штепсели должны быть плотно зафиксированы в разъемах.
• Видео клемма обозначена желтым цветом
• Аудио клемма обозначена белым цветом
• Аудио клемма обозначена красным цветом

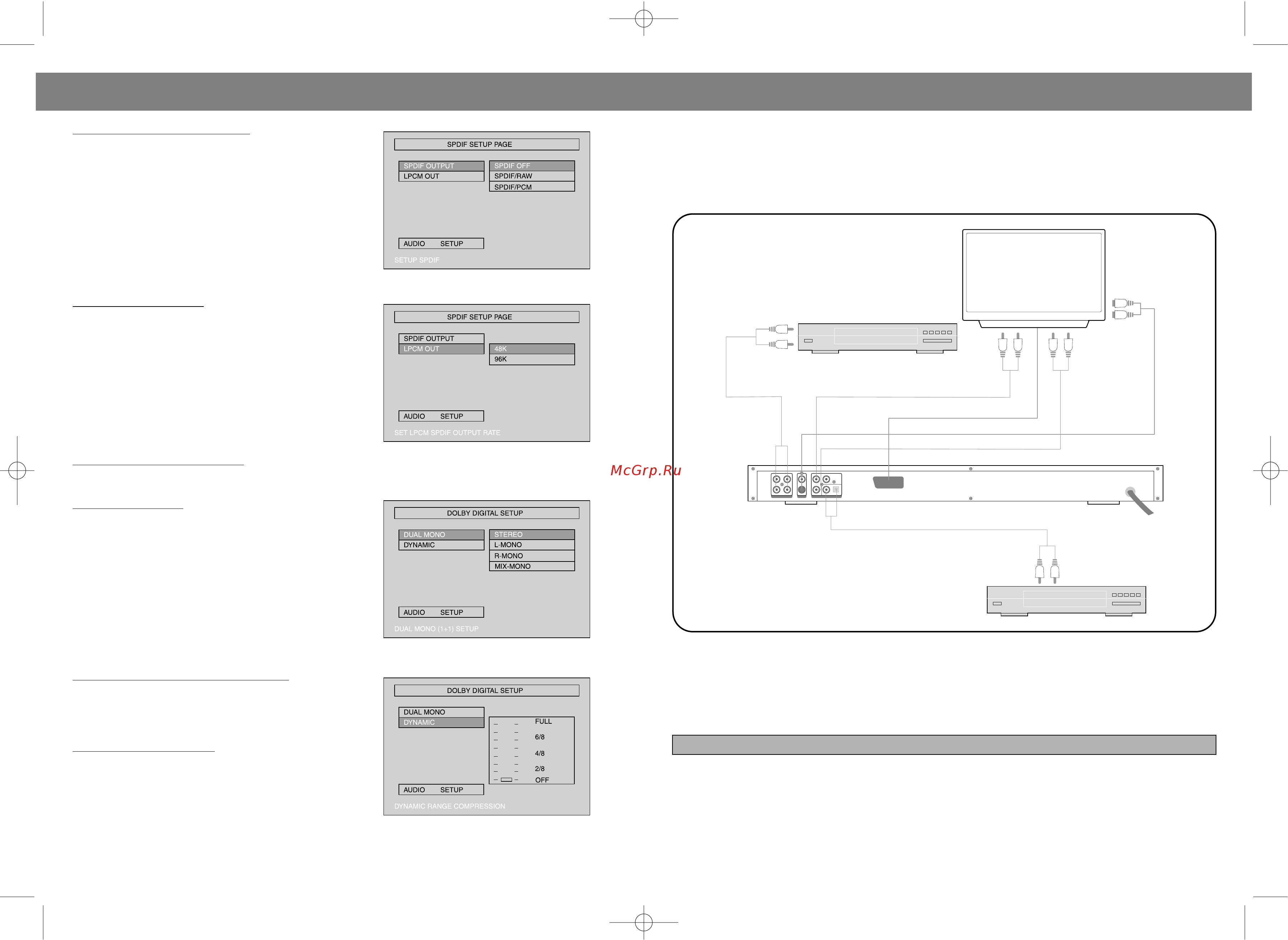

3. Схема соединений
2.4 Настройки режима воспроизведения
В случае если изображение не заполняет экран, либо изображение не цветное, выберите необходимый видео
режим PAL, NTSC или АВТО, нажатием клавиши N/P. DVD диски поддерживают изображения различных
размеров, в соответствии с экранным форматом телевизионных приемников. Пользователь может выбрать
формат экрана в зависимости от воспроизводимого диска. Выберите режимы "Нормальный/Полный экран",
"Нормальный экран/формат "почтовый ящик", либо "широкий экран" по Вашему желанию. Сделав выбор,
нажмите клавишу <PLAY> (ВОСПРОИЗВЕДЕНИЕ).
После того, как выполнены все системные соединения, проигрыватель готов к использованию. Перед тем как
приступить к воспроизведению, убедитесь в том, что Вы выполнили следующие подготовительные действия:
1. Включен телевизионный приемник в режиме "Аудио/Видео". При работе с выходом SВидео в режиме S
Видео.
2. Усилитель, при наличии его в системе, включен в режиме AC3 или DVD.
3. DVD проигрыватель включен в сеть.
Шаг 1: Нажмите клавишу POWER (СЕТЬ).
DISC LOADING (ЗАГРУЗКА ДИСКА) На экране высветится надпись: LOADING (ЗАГРУЗКА)
27
РУССКИЙ
1.2.2.1 DIGIAL AUDIO OUTPUT
Dolby digital or DTS signals can be output through
OPTICAL or COAXIAL in rear panel.
Follow the operation Instructions stated In "DVD menu
setup" In combination with desired option in the follow
ing figure.
1.2.2.2 LPCM OUTPUT
To avoid disturbing nelghboures at night, use this func
tion to low down the volume without changing the orig
inal tone.
1.2.3 DOLBY DIGITAL SETTUP
Dolby digital setup includes L+R and dynamic range compress.
1.2.3.1 L+R SETUP
Follow the operation Instructions stated in "DVD menu
setup" in combination with desired option in the follow
ing figure.
If you have Dolby digital output in your
amplifier/decoder, you may select stereo. Left, right
and mixed sound accordingly.
1.2.3.2 D
YNAMIC RANGE COMPRESS
Follow the operation Instructions stated In "DVD menu
setup" in combination with desired option in the follow
ing figure.
1.2.4 EQUALIZER SETUP
Includes equalizer type, bass boost super bass and
clear boost.
14
ENGLISH
3. ОСНОВНЫЕ ОПЕРАЦИИ
4003.qxd 21.08.03 11:44 Page 28
