4. Cancel the repeat function, folder will be on screen.
Other functions:
When a MP3 disc is played, the features of mute, volume control, pause and forward and backward
search will also be available. The operations are the same with those of CDs.
JPEG adopting the most efficient compression is widely used as picture storage type flattened and stored
format. Even if pictures are compressed 1520 times, they still have good effect. Supported by most pic
tures processing software, fit for picture storage, it has small data and easy use. This machine can read
JPEGformatmade picture CD disc. Press revelant number key to select picture display.
1.Put In disc correctly the machine begins to search disc information.
2. Press number key to select picture.
3. It's efficient only in present picture when press number key.
Select to play by menu
1. Put in disc machine searches disc information and main menu displays on screen. Press number key
from 1 to select picture. Press play key to make sure.
2. Press direction key to select picture then press play key.
3. In condition of stop. Press direction key to select other pictures.
4. In condition of stop. Select the first line file item on the right. Then press play key to return to upper
menu.
Other functions:
1. When play JPEG this machine has functions of pause. Play repeatand browse.
2. Press PREV and NEXT to select pictures.
3. You can zoom the picture to press zoom key. Pressing it again will return to normal play status.
4. When zoom on press fast forward or fast return key to get picture zoom in or out function.
5. When zoom off press direction key to get picture turnover.
21

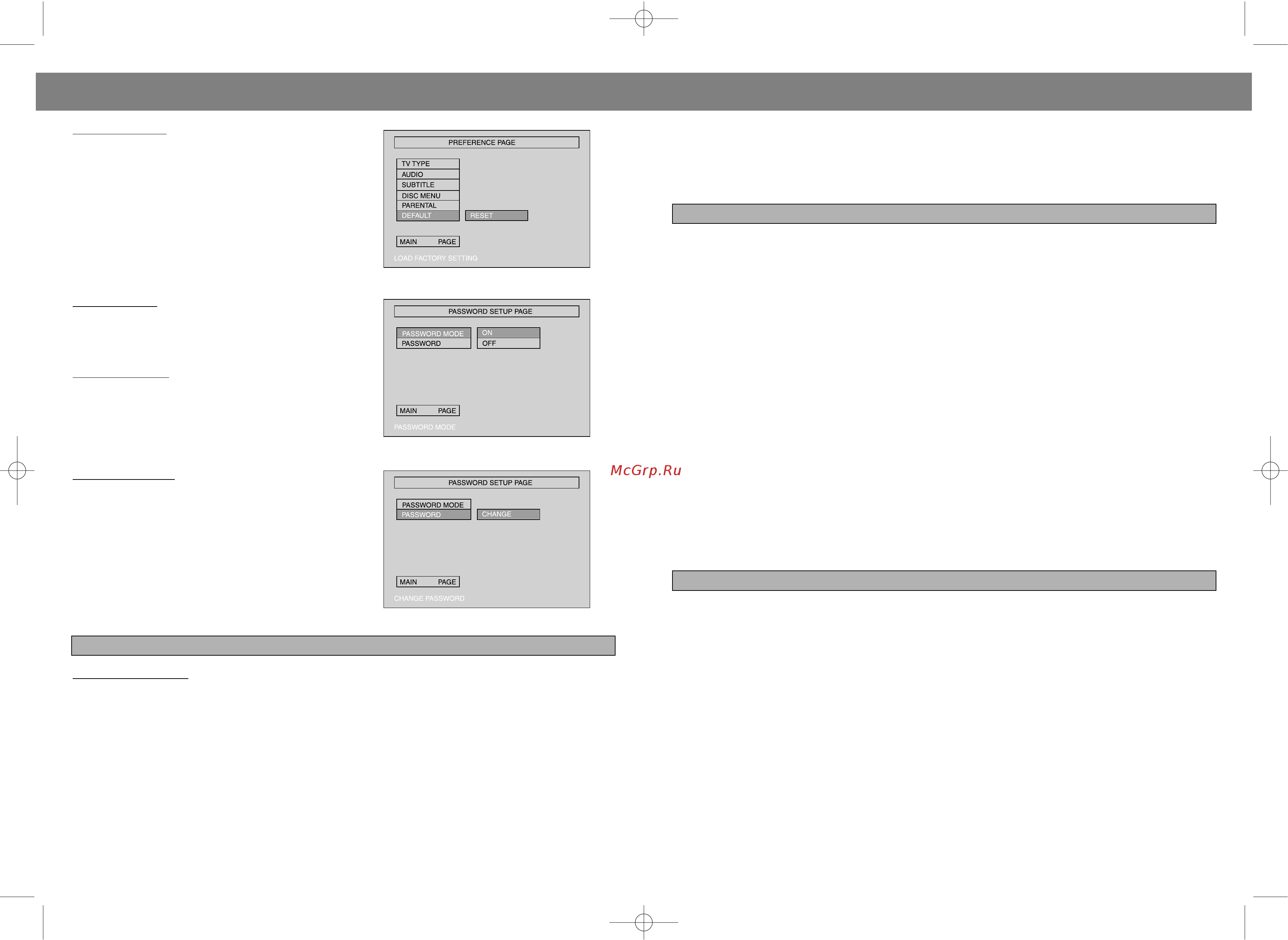

1.4.6 DEFAULTS
This option will resume the original settings of this
machine.
Follow the operating instructions stated in "DVD MENU
SETUP" in combination with the desired option in the
following figure.
1.5 PIN SETUP
Follow the operation instructions stated In "DVD menu
setup" in combination with desired option in the follow
ing figure.
1.5.1 PIN SETUP
1.5.2 P
ASSWORD
The default is "8888". The user may change it using
this option.
Follow the operating instructions stated in "DVD MENU
SETUP" in combination with the desired option in the
following figure.
T
O PLAY A MP3DISC
Select the track using numbered buttons
1. Follow the basic operating Instructions to insert a MP3 disc. This machine will start to search the
Information on the disc and show It In the display.
2. Press the number buttons to select the tack number desired.
3. Press stop key then direction key to select to other menu.
Repeat play
Using this function, the user will be able to enjoy a particular song or all the songs on the disc over and
over again.
1. Choose a particular song to be repeated.
2. Press the REPEAT button to show "REPEAT ONE" on the TV screen.
3. Exit repeat play, the screen will display as illustrated: Exit repeat
20
ENGLISH ENGLISH
6. OPERATION OF MP3 FUNCTION
7. JPEG
8. TROUBLE SHOOTING GUIDE
No sound
• Make sure the good connection between play
er and other appliances such as power amplifi
er or TV.
• Make sure the right operation on TV and power
amplifier.
No picture
• Make sure the good connection between play
er and other appliances such as TV.
• Make sure TV works on well.
Disc does not play
• Make sure the disc is loaded correctly (label
side Is facing up on the disc tray).
• Make sure the disc is dear.
Remote controller does not work
• Move the obstacle between player and remote
controller away.
• Point the remote controller at the remote con
trol sensor.
• Check the battery.
Picture dividing
• Make sure the disc is clear and no any scratch
on it
• For the player is controlled by microcomputer, if
encountering problem, switch off the power
first, and switch on again in a few second
