32
Abb. 5.31 I
2
C AudioswitchAbb. 5.30 MP3 for music (Option)

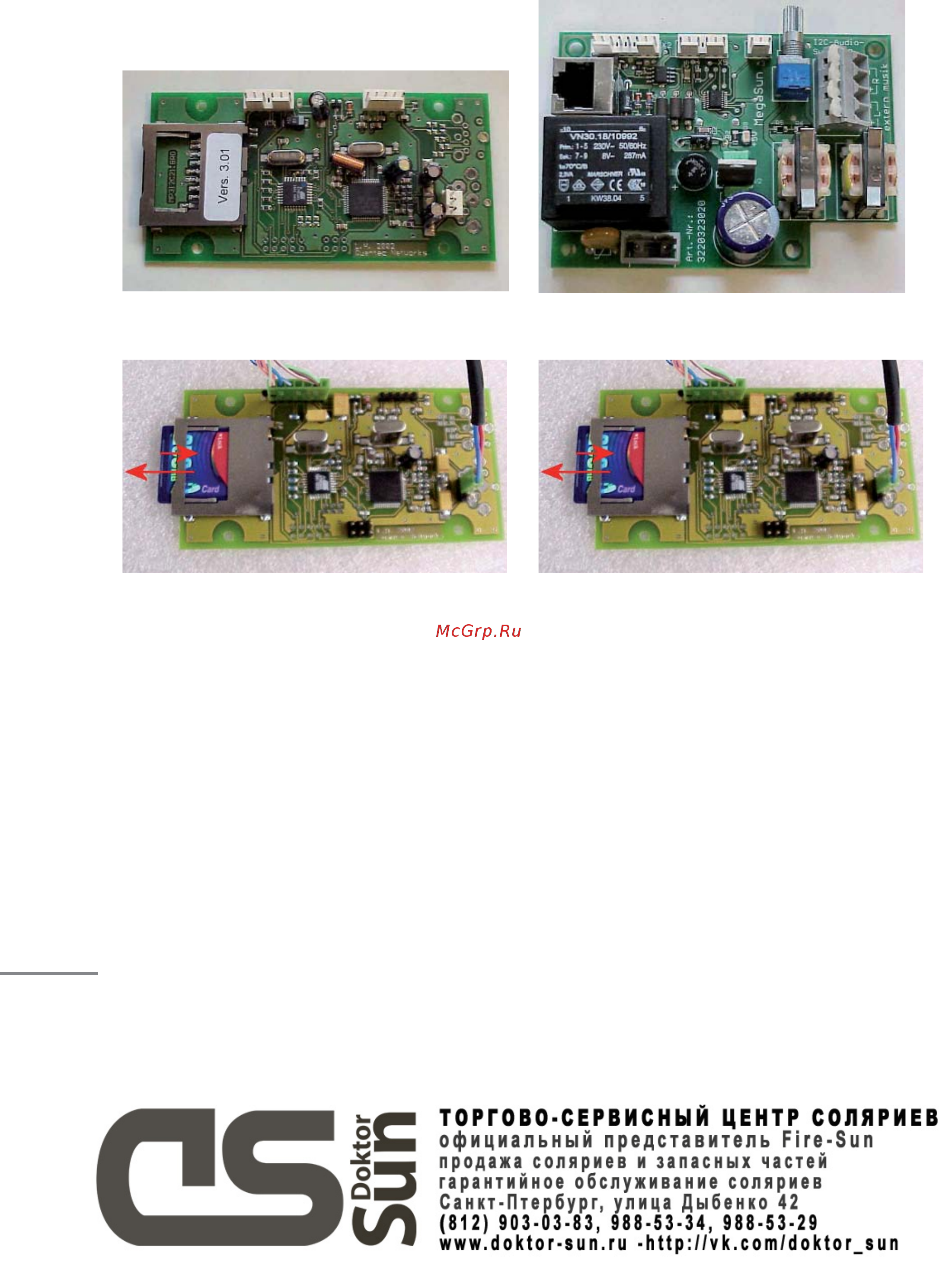

Abb. 5.32 Memory card;
Unlock: press it and then remove
the card.
Abb. 5.33 New memory card:
insert and press until it is looked.
Operation and Service megaSun 5600
5.15 Replacing the aquaCool nozzles
After 1000 hours of operation, the aquaCool nozzles have to be
replaced in order to ensure that aquaCool stays fully operative
and efficient. The installation instructions will be enclosed in
your spare parts consignment.
