Liebherr WTI 2050 [8/12] Fitting the unit door

Liebherr WTI 2050 [8/12] Fitting the unit door
u
by
screwing
long
Spax
screws

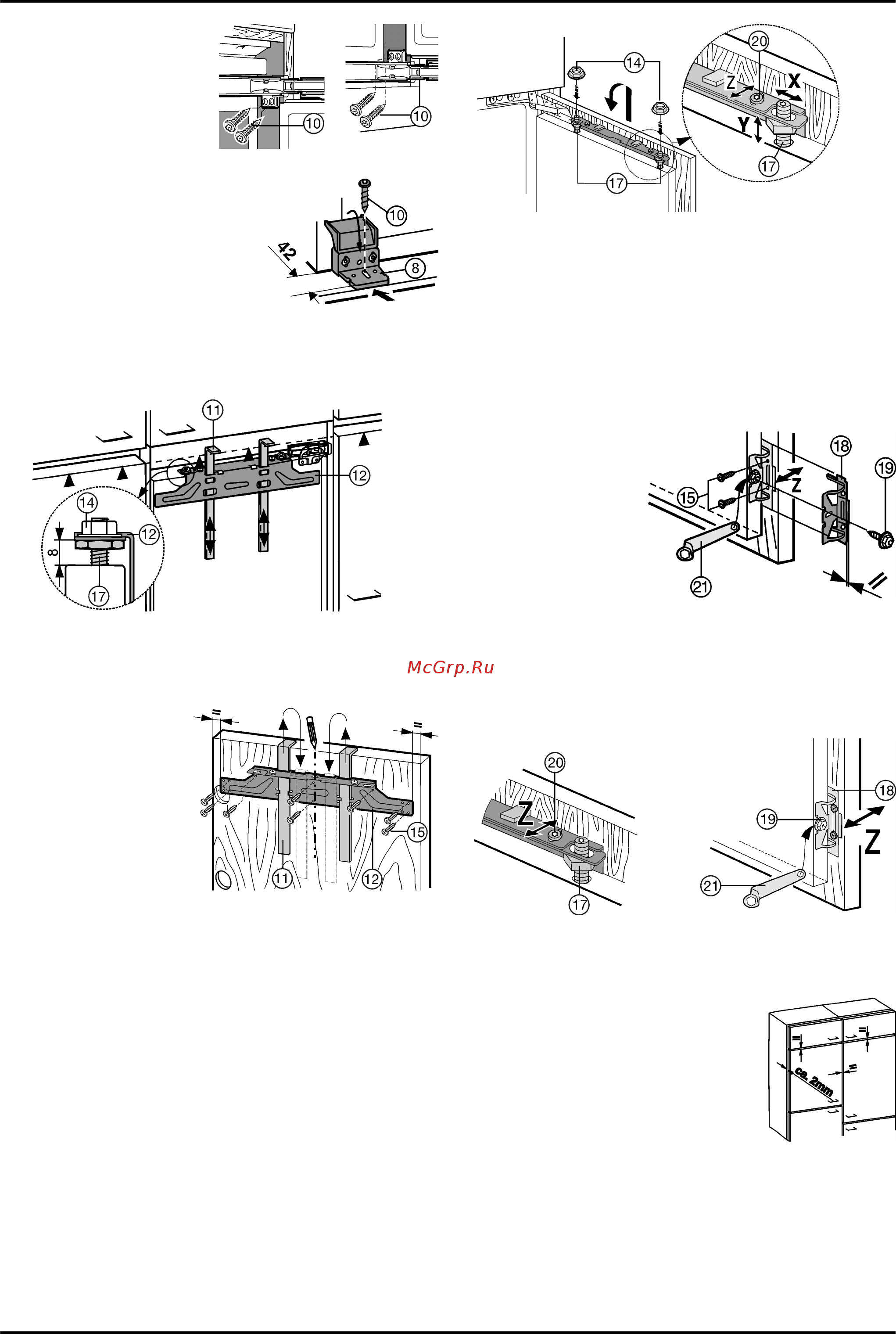

Fig. 20 (10)
through
the top and bottom
hinge plates.
Fig. 20
u
Pre-assemble by passing a
long screw
Fig. 21 (8)
through
the centre of the oblong hole
in the plastic bracket
Fig. 21 (10)
.
u
Fold down the cover of the
plastic bracket
Fig. 21 (8)
.
Fig. 21
u
Close the appliance door.
4.4.2 Fitting the unit door
Fig. 22
u
Check 8 mm presetting. (Distance between appliance door
and lower edge of crosspiece)
u
Push up assembly aids
Fig. 22 (11)
to unit door height.
Lower edge ▲of the assembly aid = top edge of the unit
door to be fitted.
u
Unscrew fastening
crosspiece
Fig. 23 (12)
by
undoing the lock-
nuts
Fig. 22 (14)
.
u
Attach the fastening
crosspiece using
Fig. 23 (12)
the
assembly aids
Fig. 23 (11)
to the
inside of the unit
door.
Fig. 23
u
Centre the fastening crosspiece
Fig. 23 (12)
: mark a short
centre line on the unit door and put the tip of the arrow on
the crosspiece above it.
w
Distances to the outer edge are equal at the left and right.
For chipboard doors:
u
secure fastening crosspiece
Fig. 23 (12)
with at least 6
screws.
For frame and panel doors:
u
secure fastening crosspiece
Fig. 23 (12)
with 4 screws at
the edge.
u
Raise the assembly aids
Fig. 23 (11)
for removal, turn them
and insert them into the adjacent openings.
Fig. 24
u
Attach the unit door to the adjusting bolts
Fig. 24 (17)
and
loosely screw the locknuts
Fig. 24 (14)
onto them.
u
Close the door.
u
Check the gap between the door and the surrounding unit
doors.
u
To laterally align the unit door: move the unit door in the X
direction.
u
To align the unit door in height Y and in lateral inclination:
adjust the adjusting bolt
Fig. 24 (17)
with a screwdriver.
w
The unit door is flush and in alignment with the surrounding
unit fronts.
u
Tighten the locknuts
Fig. 24 (14)
.
u
Screw mounting
bracket
Fig. 25 (18)
with
hexagon screw
Fig. 25 (19)
into
the pilot holes in
the appliance
door.
Fig. 25
Ensure that both metal edges are flush (symbol //):
u
Drill pilot holes in the door of the unit (possibly make prelimi-
nary hole with a bradawl).
u
Screw the appliance door to the unit door with screws
Fig. 25 (15)
passed through the mounting brackets
Fig. 25 (18)
.
Fig. 26
u
To align the unit door in depth Z: undo screws
Fig. 26 (20)
at
the top, hexagon screws
Fig. 26 (19)
at the door, then move
the door.
u
Allow an air
gap of approx. 2 mm
between the unit door and the body of
the unit.
Do not allow knobs and sealing lips to
contact the door - important for function!
For large or sectioned unit doors:
u
fit a 2nd pair of mounting brackets
Fig. 25 (18)
.
u
Use the holes pre-drilled in the handle
area of the appliance door for this
purpose.
Putting into operation
20
