20
Appliance description
GB

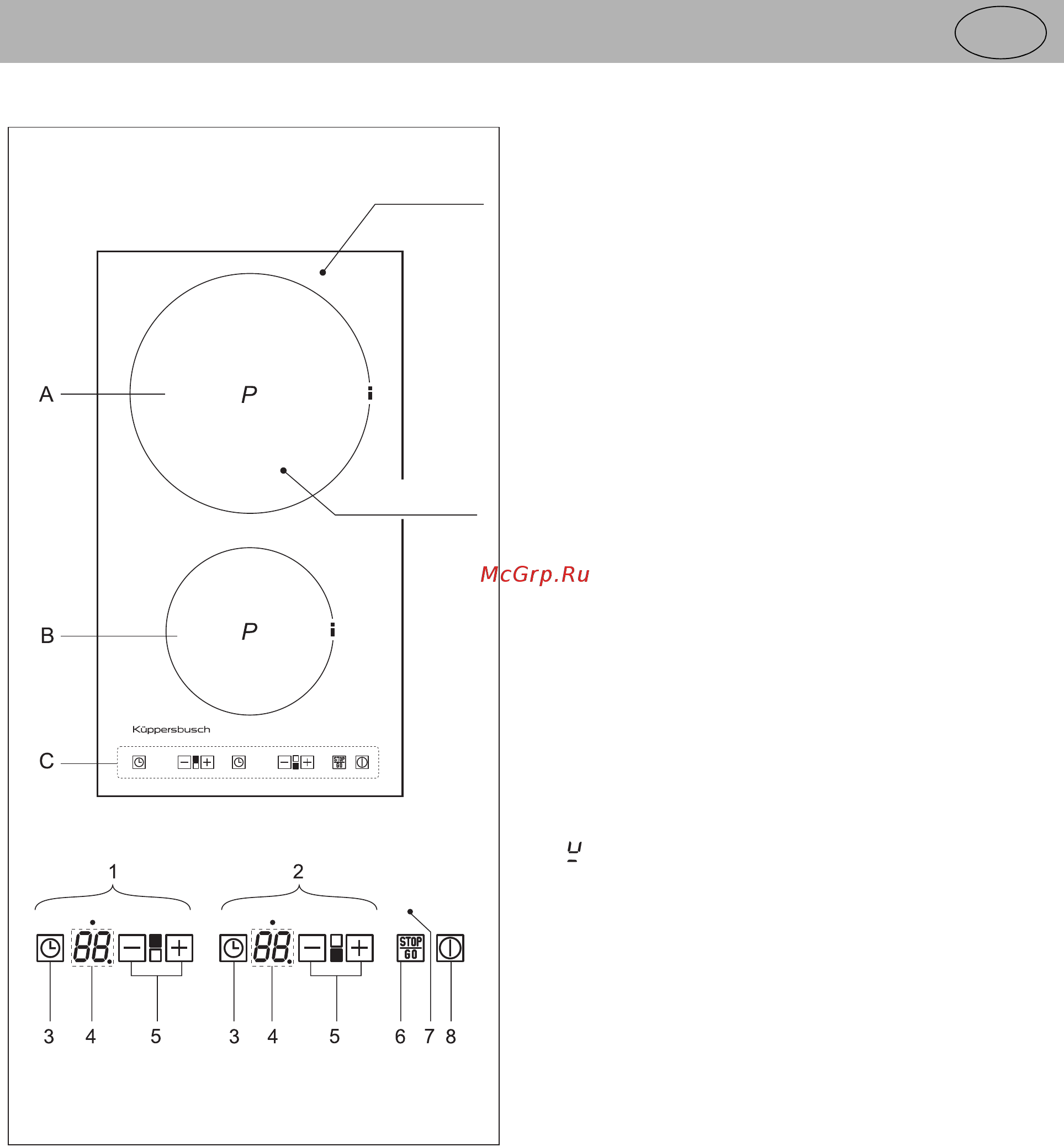

Appliance description
A. Rear induction cooking zone
B. Front induction cooking zone
C. Touch-control operating panel
1. Rear cooking zone controls
2. Front cooking zone controls
3. Automatic switch-off (timer)
4. Cooking setting and timer displays
5. Plus and minus buttons
6. STOP button
7. Lock control lamp
8. ON/OFF button
Operating the hob with the sensor buttons
The ceramic glass hob is operated with touch control sensor
buttons. The sensor buttons are operated as follows: lightly touch
a symbol on the surface of the ceramic glass plate. A buzzer will
indicate when the controls have been operated correctly. The
touch control sensor button will then be indicated as „button“.
ON/OFF button (8)
This button is used to switch the entire hob on and off. It is, as it
were, the main switch.
Minus button / Plus button (5)
These buttons are used to set the cooking levels, the automatic
switch-off device and the minute minder.
The minus button reduces the setting and the plus button raises
it.
The setting can be deleted by pressing both buttons simultane-
ously.
Power setting display (4)
The power setting display shows the power setting which has
been selected, or:
H................ Residual heat
P................ Power boost setting
.............. Pan recognition device
A................ Automatic parboiling mode
Lo .............. Warming mode
STOP ........ Stop function
STOP button (6)
The STOP function can be used to briefly stop the cooking
process.
Automatic switch-off button (3)
For programming the automatic switch-off device (timer) and the
minute minder.
Hob
Cooking zone
