Smeg ALFA 135 VE [4/15] Electrical connection

Instructions for the Installer

2. INSTALLING THE OVEN

The oven is designed for free-standing installation on a horizontal work-

top. It must be far enough from the wall behind it to allow easy access to

the terminal board for connection of the power supply lead. Installation

must be carried out by a qualified engineer in compliance with the

relevant EEC DIRECTIVES.

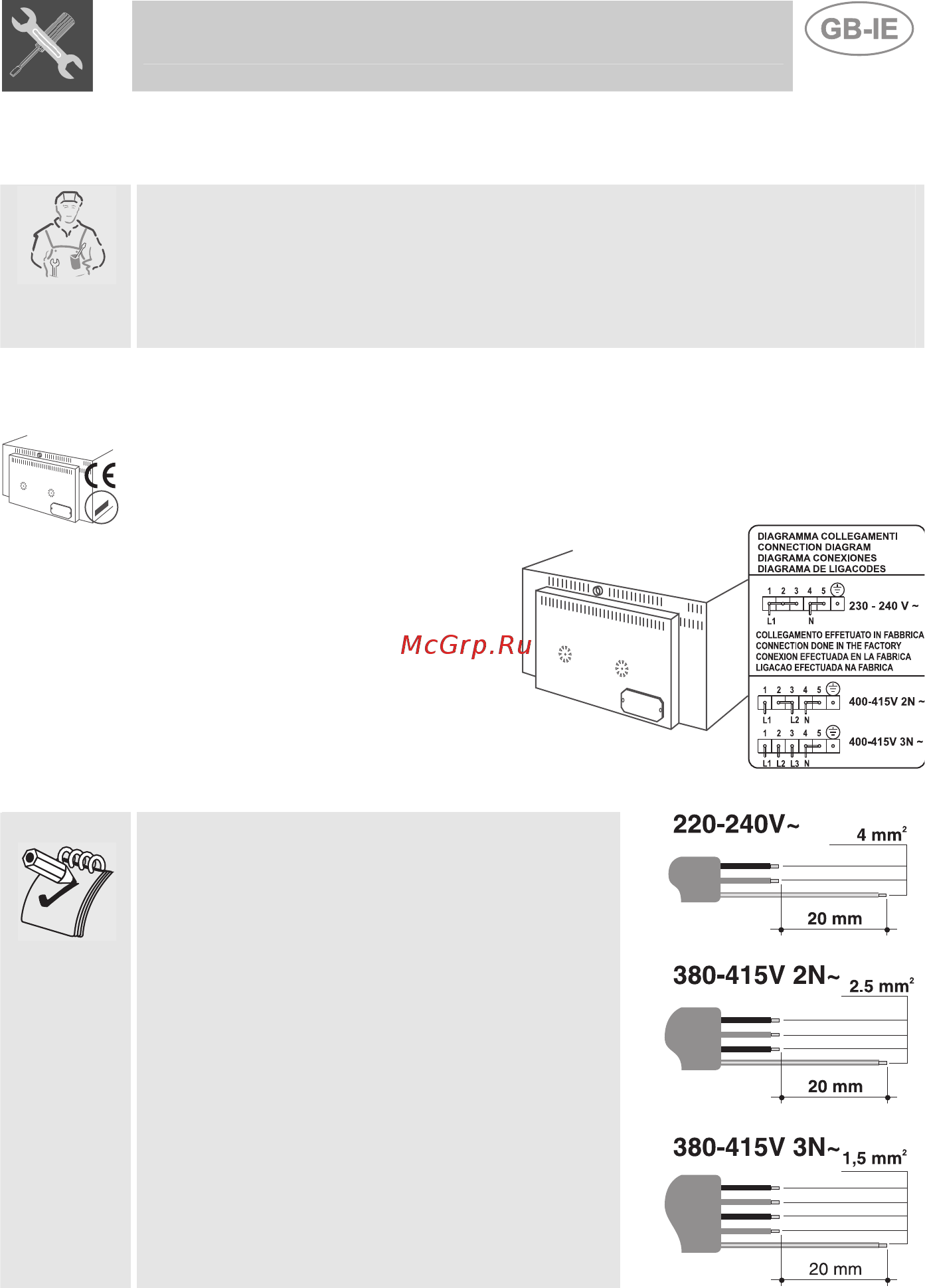

2.1 Electrical connection

Check that the power supply voltage and size are as specified on the

nameplate on the side of the oven. This nameplate must never be

removed.

The oven is fitted with a H07RN-F

three-core cable for operation at

240-240V∼.

For operation at 380-415V2N∼ or

380-415V3N∼, the power supply

cable has to be replaced and the

connection to the terminal board

modified. The terminal board can

be accessed by removing the

panel on the back of the oven.

The power supply lead supplied is of

H07RN-F type, gauge 3 x 4 mm

For operation at 380-415V2N

∼

or 380-

415V3N

∼

, the power supply cable has to be

replaced with one of H07RN-F type. The

gauge of the wires in the new cable must be

at least 2.5-1.5 mm

(4 x 2.5 mm

-5 x

1.5 mm

), bearing in mind that the earth wire

(yellow-green) must be at least 20 mm

longer at the end for connection to the oven.
