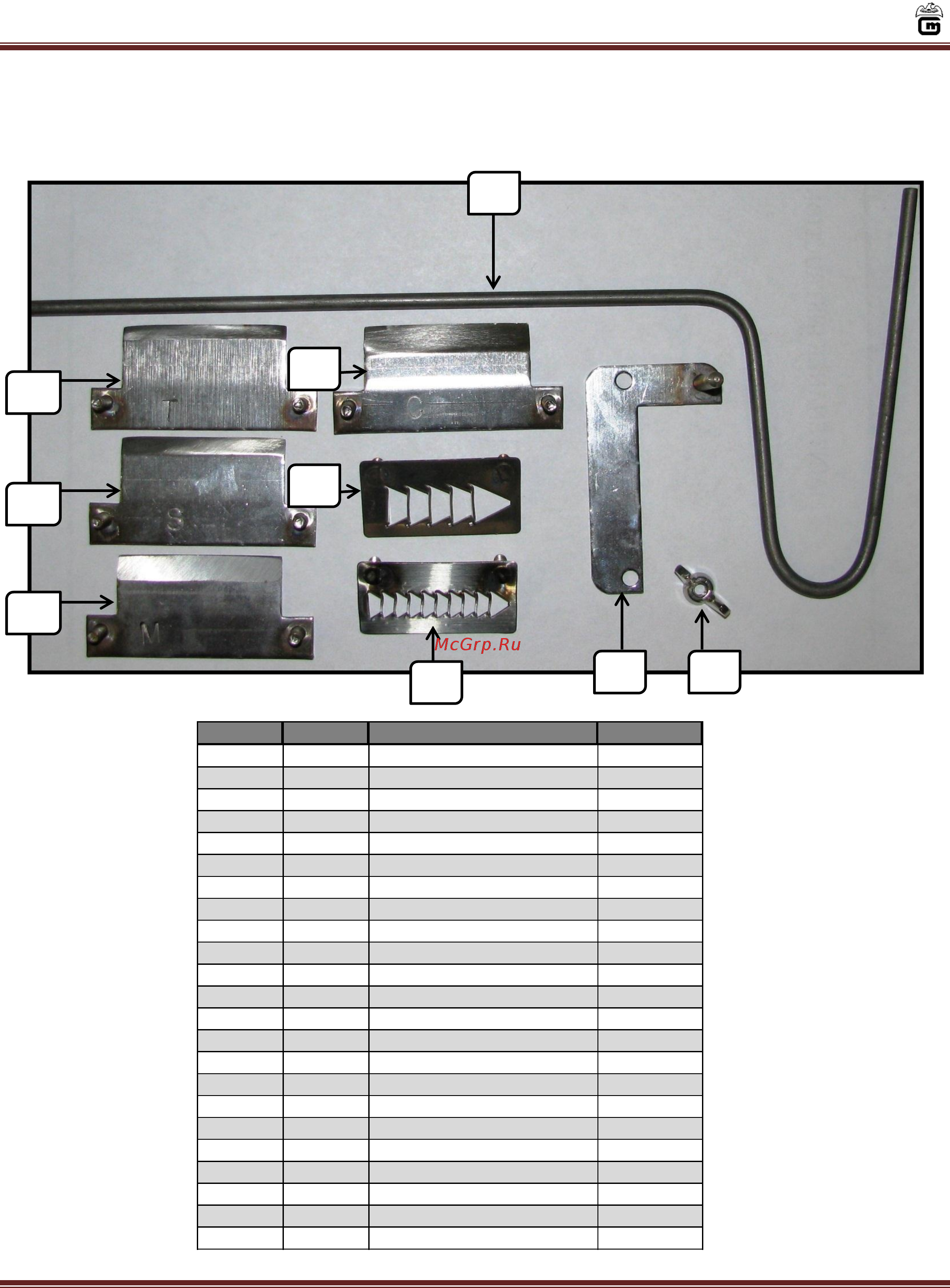

Gold Medal 5280MX [10/15] Parts breakdown

Spiral Slicer Model No. 5280, 5280M, 5280MX

http://www.gmpopcorn.com Page 10

Number Part No. Description Quantity

1 12368 Knob, Handwheel 1

2 12369 Tube Hand Wheel Pivot 1

3 12384 1/4-20 x 2 PAN HD PH M/S 1

4 82803 Crank Arm 1

5 82810 Support Stand Weldment 1

6 82859 Stop Angle 1

7 82864 Clamping Knob 2

8 12385 8-32 Acorn Nut SS 4

9 12466 1/4-20 Wing Nut 4

10 82805 Front Support Rod 2

11 82811 Driver 1

12 82816 Drive Plate 1

13 82808 Assembly Plate Weldment 1

14 44017 Rubber Suction Feet 4

15 82818 Medium Shred Blade 1

16 82819 Coarse Shred Blade 1

17 82827 Thin Slicing Blade "T" 1

18 63640 Saratoga Blade "S" 1

19 82826 Medium Slicing Blade "M" 1

20 82825 Coarse Slicing Blade "C" 1

21 82814 Slicer Pin Weldment 1

22 63530 Potato Pierce 1

23 89126 8-32 Wing Nut 2

PARTS BREAKDOWN (Continued)

Model 5280
