Gold Medal 5280MX [11/15] Parts breakdown

Gold Medal 5280MX [11/15] Parts breakdown
Spiral Slicer Model No. 5280, 5280M, 5280MX
http://www.gmpopcorn.com Page 11
Number Part No. Description Quantity
1 82859 (ALL) Stop Angle 1
2 82864 (ALL) Clamping Knob 4
3 82862 (ALL) Base Pan 1
4 82877 (ALL) Dirt Seal (Front Face) 1
5 82861 (ALL) Slide 2
6 44017 (ALL) Suction Cup Feet 6
7 12385 (ALL) Acorn Nut 6
8 67069 (ALL) Handle 2
9 82857 (ALL) Motor Cover 1
10 42369 (5280MX) Export Power Supply Cord 1
11 22038 (5280M) Lead-In Cord, 15A Plug 1
12 76026 (ALL) Strain Relief 1
Number Part No. Description Quantity
13 38971 (ALL) Momentary Switch 2
14 82816 (ALL) Drive Plate 1
15 82818 (ALL) Medium Shred Blade 1
16 82819 (ALL) Coarse Shred Blade 1
17 82827 (ALL) Thin Slicing Blade "T" 1
18 63640 (ALL) Saratoga Blade "S" 1
19 82826 (ALL) Medium Slicing Blade "M" 1
20 82825 (ALL) Coarse Slicing Blade "C" 1
21 82814 (ALL) Slicer Pin Weldment 1
22 69815 (ALL) 1/2 IN I.D. Split Collar 2
23 89126 (ALL) 8-32 Wing Nut (Not Shown) 2
24 12466 (ALL) 1/4-20 Wing Nut (Not Shown) 2
25 82860 (ALL) Motor Coupling (Not Shown) 1

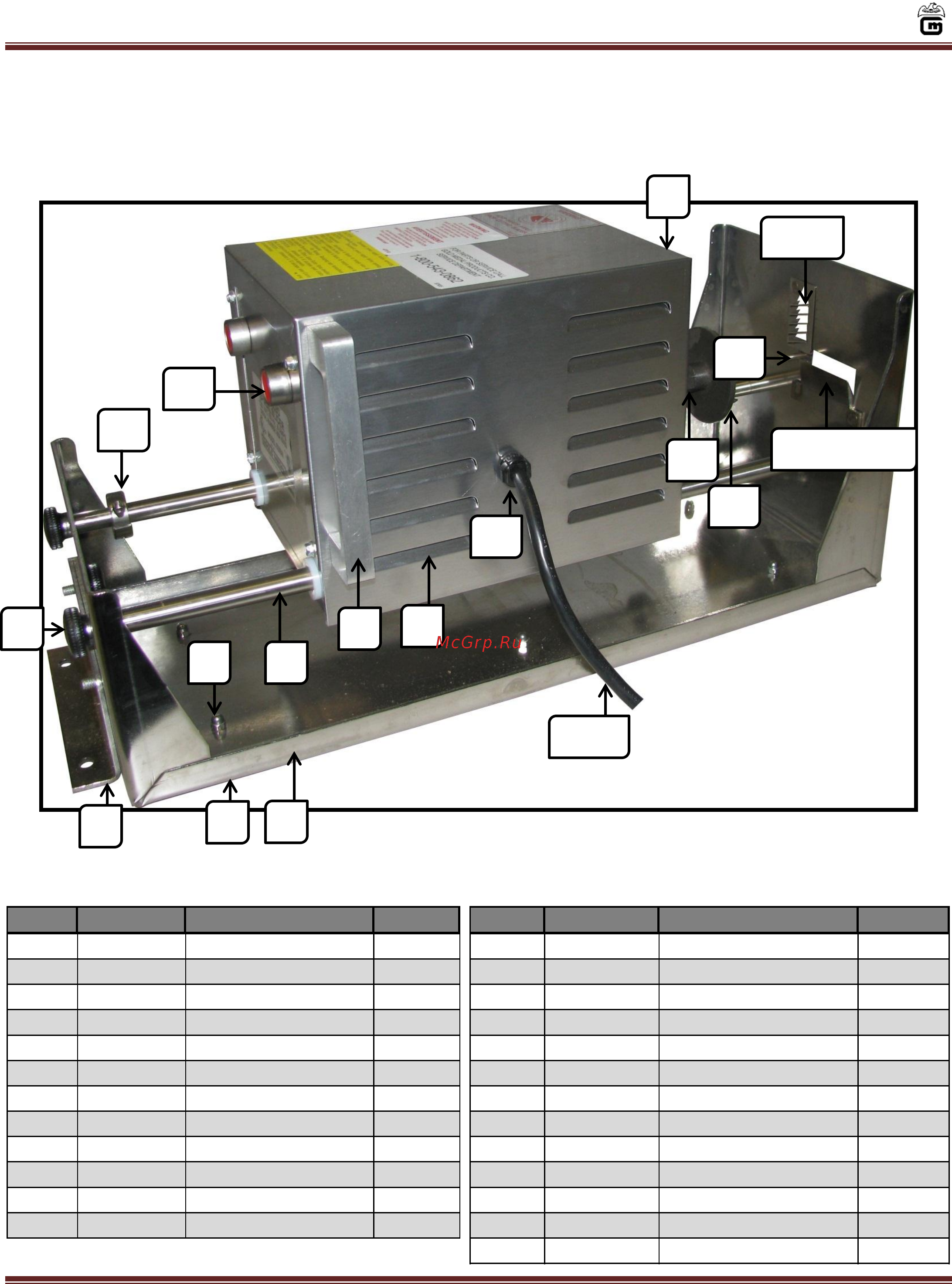

PARTS BREAKDOWN (Pg. 11-12)
Model 5280M, 5280MX
1
2
3
5
6
7
8
9
10, 11
12
13
14
15, 16
17, 18, 19, 20
21
22
4
25
