Gold Medal Breeze w/Lock n Go [7/24] Whirl grip clip installation instructions
![Gold Medal Breeze [7/24] Whirl grip clip installation instructions](/views2/1321683/page7/bg7.png)
The Breeze
7 Models: 3030, 3030SR, 3030EX, 3040 and 3040SR
Whirl Grip-Clip Installation Instructions
The whirl grip-clip has been designed to provide better air flow by keeping the
whirl grip (netting) off the floss pan.
To install, please follow these simple steps:

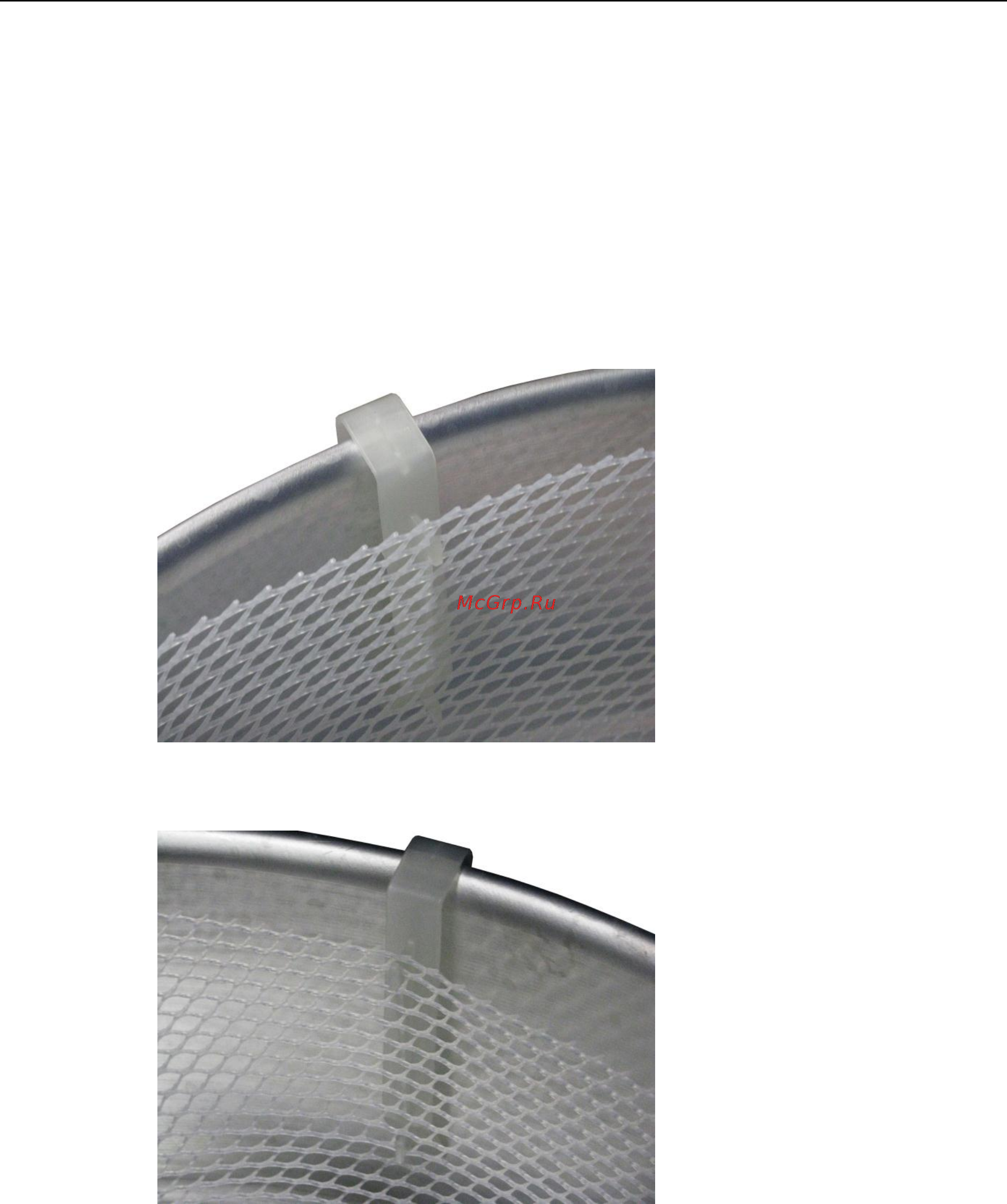

1. Insert the hooked side of the clip into the whirl grip-approximately (2) holes down from the
top, inserting from the back-as shown below.
2. Push the whirl grip through, leaving about (5) spaces in-between, and re-insert through the
back side of the whirl grip.
3. Continue this process with all (6) clips, keeping equal spacing around the pan, and slide
the long flat side of the clip down the outside of the floss pan.
