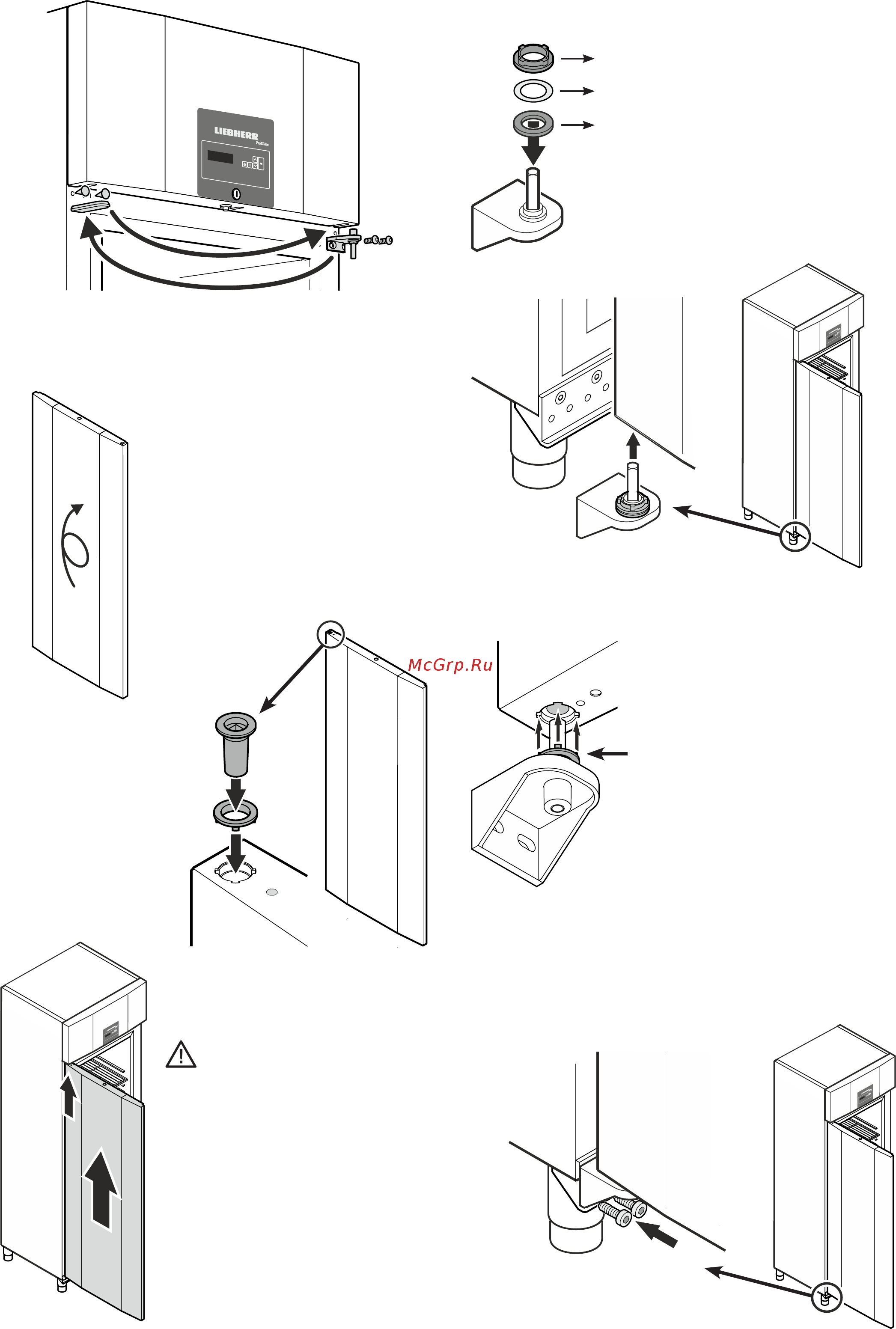

10. Keeping door open at 90°, suspend

in top square pin.

WARNING!

It is essential that the door is

open at an angle of 90° during

installation.

If the door is installed in the

closed position, this will lead to

destruction of the self-closing

mechanism on the rst opening

and closing of the door.

Important

As a result of its heavy weight, the door

must be held secure by one person.

12. Installthehingebracketwiththefitted

hinge components in the lower door

mounting.

Bearing ring

Brass washer

Plastic washer

11. Fitthehingecomponentsonthehingebracket.

Note on point 12

Thetabsonthebearingringmusttinto

the recesses of the door mounting during

installation.

If necessary, gently rotate the upper ring.

13. Screwhingebracketintoplace.

9. Insert the bearing ring and

hinge bushing in the upper

door mounting.

7. Transfertheupperhingebracketandcoverstothe

opposite side.

8. Turn the door by 180°.
