Adjustments
Conveyor and Motor Gears:

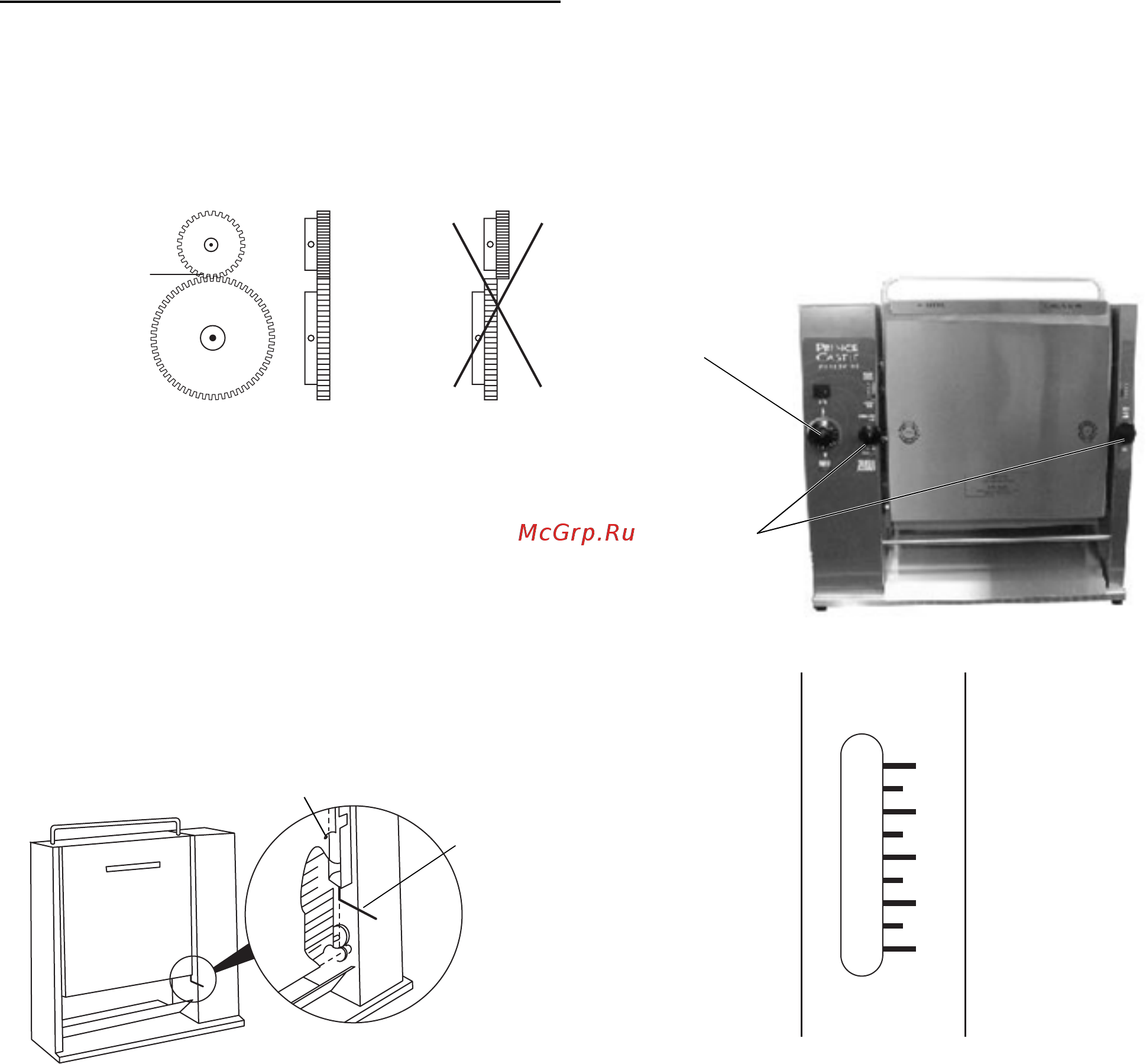

There will be a 1/64" clearance between the conveyor gear
and motor gear when properly aligned. Improper alignment
will cause the conveyor to periodically bind.
Figure 6
1. Working from the “back side” of the toaster, loosen the
2 setscrews at the bottom of the conveyor guide until
they are even with the conveyor stop. Note: the
conveyor assembly may need to be removed for easier
access.
2. Use the Allen Wrench to tighten the left setscrew (end
housing side) until the setscrew just touches the
conveyor slide.
Figure 7
3. Tighten the right setscrew (motor housing side) until
the bottom of the conveyor housing is parallel to the top
of the base.
4. Carefully tighten each setscrew another 1/2 turn.
5. Remove the conveyor assembly.
6. Apply a drop of wicking grade thread locking fluid to
each setscrew.
7. Replace conveyor assembly.
Bun Compression:
The toaster platen can be adjusted to provide the necessary
compression needed on various products.
• Turn the two platen adjustment knobs clockwise to
compensate for use on thicker bread products. Turn
the two platen adjustment knobs counterclockwise
for thinner products. The numbers on the front of the
end and motor housing will indicate the settings, 1 for
thinnest product, 5 for thickest.
Figure 8
Figure 9
Platen Temperature:
The temperature of the platen can be adjusted to
compensate for darker or lighter toasting requirements.
• Turn the thermostat adjustment knob clockwise for
darker toasting. Turn the thermostat adjustment knob
counterclockwise for lighter toasting.
IMPORTANT:
Allow 15 minutes for toaster to stabilize after
adjusting the thermostat.
Tools Needed: 3/32" Allen wrench
Wicking grade thread locking fluid
1/64" Clearance
Gears
Properly
Mesh
Top of the #10-32 Setscrew
Both Sides
3/32 Hex
Head Key
Thermostat Knob
Platen Adjustment
Knobs
THICKER
5
4
3
2
1
THINNER
