197-538revC-EN 5 Printed in USA 6/06 © 2006
Troubleshooting

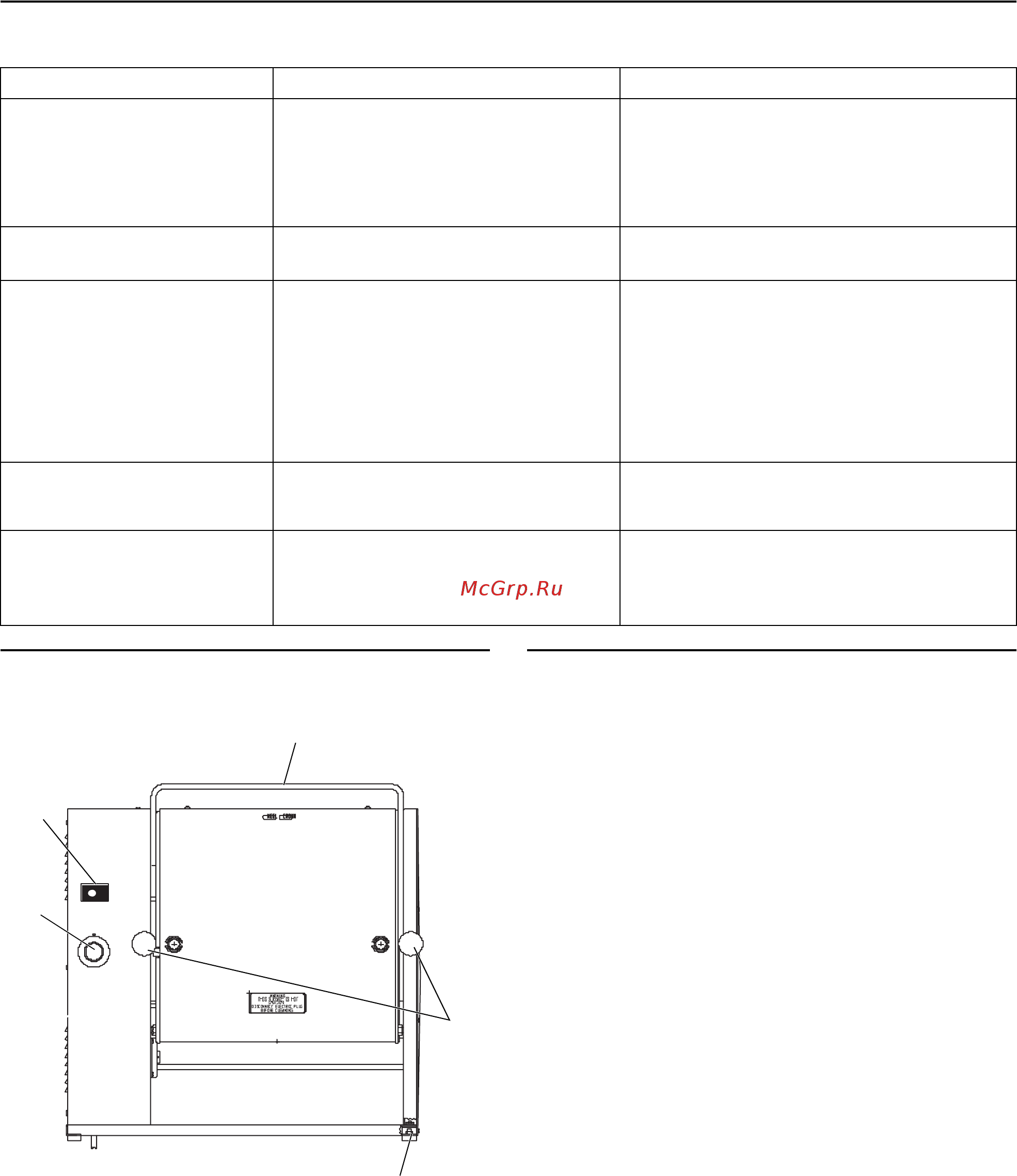

Front View Parts List
* Not shown.
PROBLEM PROBABLE CAUSE SOLUTION
Unit will not heat up. No power to unit. Ensure power cord is connected to proper
receptacle and the power inlet.
Power rocker switch light off. Inoperable power cord. Replace power cord.
Loose connection on power switch. Tighten power switch connections.
Inoperable power switch. Replace power switch.
Unit will not heat up. Inoperable thermostat. Replace thermostat.
Power rocker switch light on. Inoperable platen. Replace platen.
Unit heats up, but the conveyor
does not run.
Loose motor switch connection. Tighten motor switch connection.
Inoperable motor. Replace motor.
Stripped drive gear. Replace drive gear.
Loose chain sprockets. Adjust and tighten sprockets.
Gears not meshing. Adjust conveyor setscrews (see Conveyor and
Motor Gears on page 3).
Inoperable motor switch. Replace switch.
Unit under- and over-heats
(does not respond to thermostat
adjustments).
Inoperable thermostat. Replace thermostat.
Buns under or over done. Check platen adjustment. (See Bun
Compression on page 3.)
Adjust platen for proper compression.
Check platen temperature.
(See Platen
Temperature on page
3.)
Adjust thermostat for proper temperature.
5
2
4
3
1
Item
Part
Number Description
1 78-184S Power Lighted Rocker Switch
2 197-185S Platen Adjustment Knob (Pkg of 2)
3 70-012 Thermostat Knob
4 197-232S Foot (Pkg of 4)
5 197-124 Conveyor Guide with Handle
* 197-475 Overlay (Motor Housing)
* 197-259 Release Sheet Conversion Kit,
197/297
* 197-402 Release Sheet (Pkg of 2)
Conversion Kit 296 Series
* 297-151 Release Sheet (Pkg of 4)
297-T12PHH only
* 297-149 Clamp Bar
297-T12PHH only
* 197-260 Release Sheets (Pkg of 2),
297 Series
