Samsung MWR-WE10N [10/24] Group control with your wired remote controller
![Samsung MWR-WE10N [10/24] Group control with your wired remote controller](/views2/1331247/page10/bga.png)
9
ENGLISH
Outdoor Unit
Indoor Unit
Wired Remote
Controller
Outdoor Unit
Indoor Unit
COM1(F1, F2)
COM2(F3, F4)
COM1(F1, F2)
COM2(F3, F4)
Outdoor Unit
COM1(F1, F2) COM1(F1, F2)
Wired Remote
Controller
COM2(F3, F4) COM2(F3, F4)
COM1(F1, F2)
Indoor Unit Indoor Unit Indoor Unit
Group Control with Your Wired Remote Controller
X
Group control means that you are using one Wired Remote Controller to control two or more indoor units and
ventilator(ERV) at the same time.
When Connected to an Indoor Unit Only
• Regardless of the indoor unit’s group address (RMC address), only the indoor units connected to COM2 are
controlled in group.
• Regardless of your outdoor units, you can control a maximum of 16 indoor units as a group.

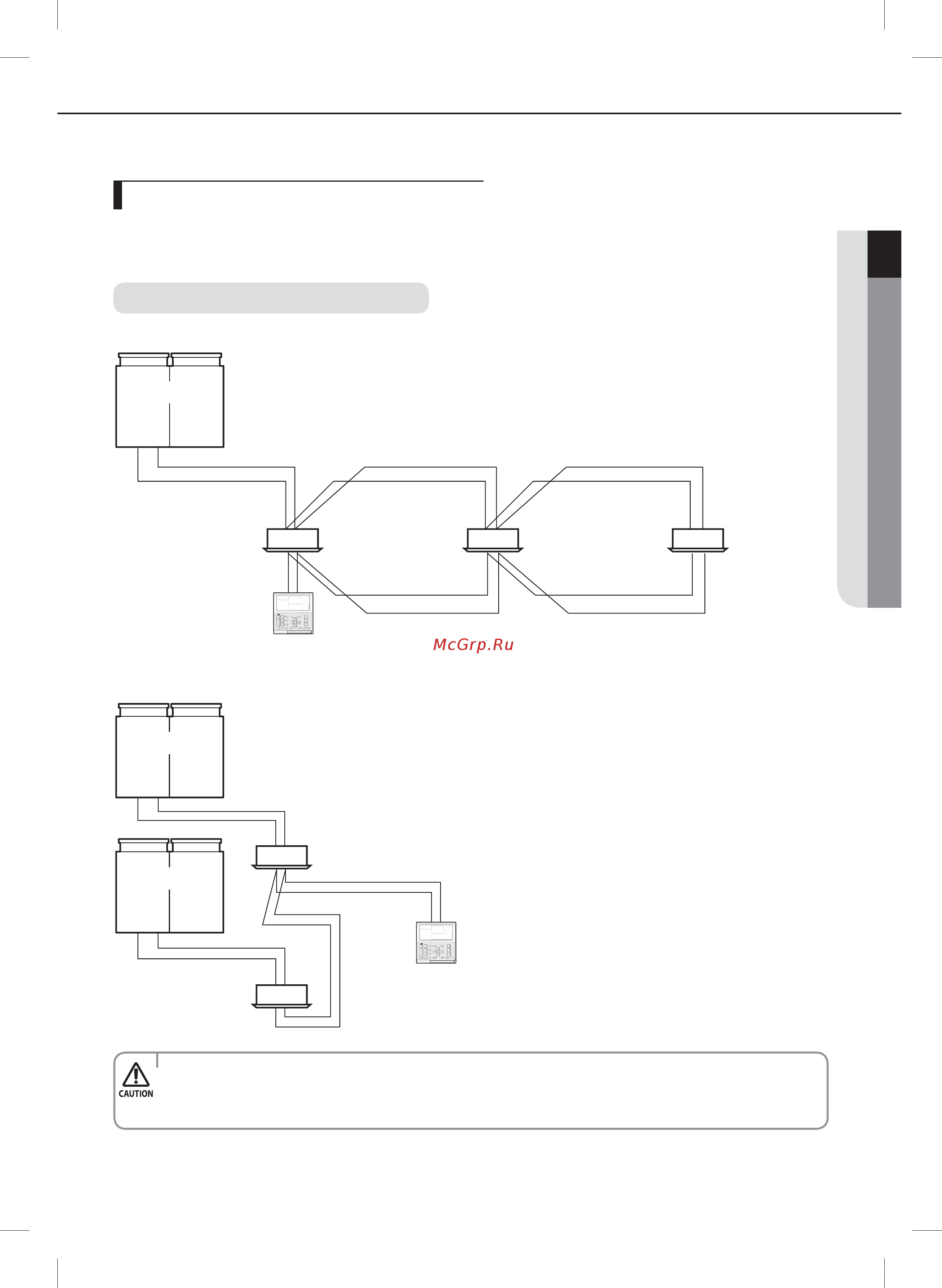

(1) Using One Wired Remote Controller to control three indoor Units
(2) Using One Wired Remote Controller to control indoor units connected to dierent outdoor unit
