11
ENGLISH
Outdoor Unit
COM1(F1, F2) COM1(F1, F2)
Wired Remote
Controller
COM2(F3, F4) COM2(F3, F4)
COM1(F1, F2)
Indoor Unit Indoor Unit
Indoor Unit
COM2(F3, F4)
Ventilator(ERV)

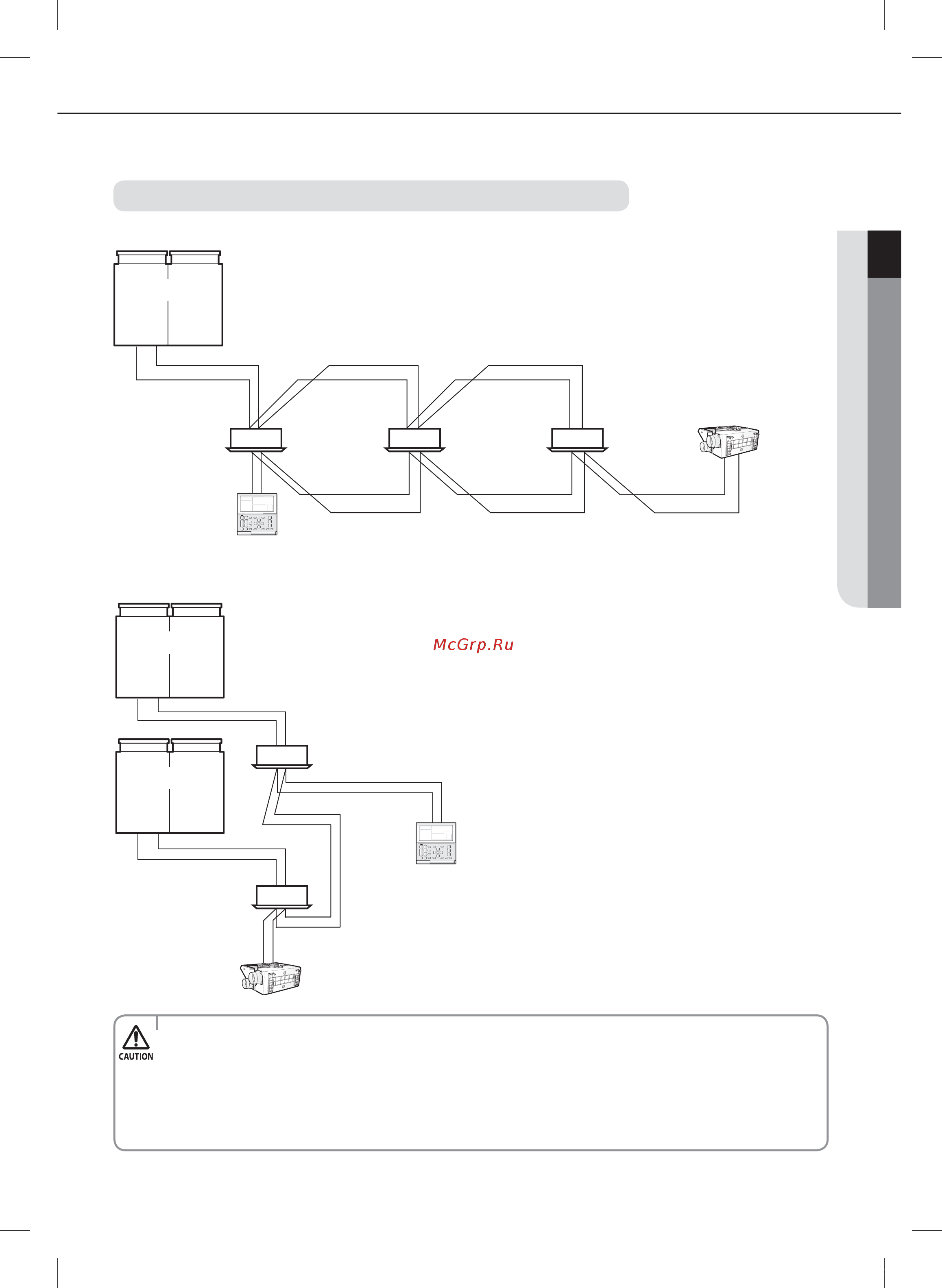

When Connected to an Indoor Unit and an ventilator(ERV) together
• Regardless of the indoor unit’s group address (RMC address), only the indoor units and ventilator(ERV) connected
to COM2 are controlled in group.
• When controlling indoor units and ventilator(ERV) together in group, you can control maximum of 16 indoor units
and ventilator(ERV).
• If you want to use the power saving function, you have to connect Wired Remote Controller to only one indoor
unit and one ventilator(ERV).
(1) Using One Wired Remote Controller to control multiple indoor units and ventilator(ERV)
(2)
Using One Wired Remote Controller to control indoor units connected to dierent outdoor unit and
ventilator(ERV)
Outdoor Unit
Indoor Unit
Wired Remote
Controller
Outdoor Unit
Indoor Unit
COM1(F1, F2)
COM2(F3, F4)
COM1(F1, F2)
Ventilator(ERV)
COM2(F3, F4)
uhzh~GyGjt~yT~lXWuluptWZ^X]hOXPUGGGXX YWXZTWYTWXGGG㝘䟸G]aZ[aW`
