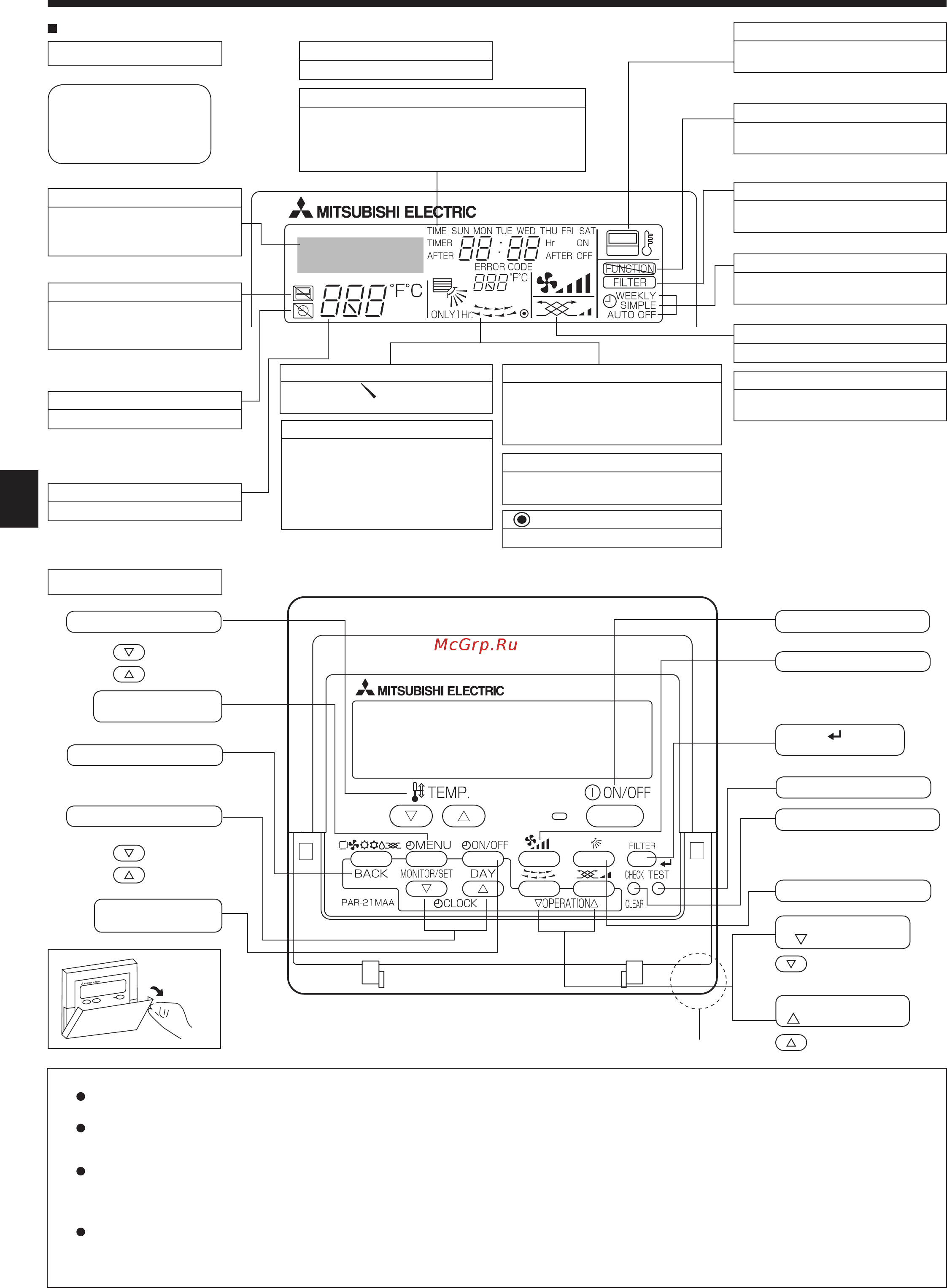

Mitsubishi Electric PKFY-P25VBM-E [4/40] Parts names

Wired Remote-Controller

Display Section

Identifies the current operation

Shows the operating mode, etc.

* Multi-language display is sup-

ported.

“Centrally Controlled” indicator

Indicates that operation of the

remote controller has been pro-

hibited by a master controller.

“Timer is Off” indicator

Indicates that the timer is off.

Temperature Setting

Shows the target temperature.

Day-of-Week

Shows the current day of the week.

Time/Timer Display

Shows the current time, unless the simple or Auto

Off timer is set.

If the simple or Auto Off timer is set, shows the

time remaining.

“Sensor” indication

Displays when the remote controller

sensor is used.

“Locked” indicator

Indicates that remote controller but-

tons have been locked.

“Clean The Filter” indicator

Comes on when it is time to clean

the filter.

Timer indicators

The indicator comes on if the corre-

sponding timer is set.

Up/Down Air Direction indicator

The indicator

shows the direction

of the airflow.

“One Hour Only” indicator

Displays if the airflow is set to Low and

downward during COOL or DRY mode.

(Operation varies according to model.)

The indicator goes off after one hour

when the airflow direction also changes.

Room Temperature display

Shows the room temperature. The room

temperature display range is 8 - 39°C.

The display blinks if the temperature is

less than 8°C or 39°C or more.

Louver display

Indicates the action of the swing louver.

Does not appear if the louver is stationary.

(Power On indicator)

Indicates that the power is on.

Fan Speed indicator

Shows the selected fan speed.

Ventilation indicator

Appears when the unit is running in

Ventilation mode.

Operation Section

Set Temperature buttons

Down

Mode button (Return button)

Set Time buttons

Timer On/Off button

(Set Day button)

Opening

the cover

ON/OFF button

Fan Speed button

Filter button

(<Enter> button)

Test Run button

Check button (Clear button)

Airflow Up/Down button

Louver button

(

Operation button)

To return operation

number

Ventilation button

(

Operation button)

Note:

“PLEASE WAIT” message

This message is displayed for approximately 3 minutes when power is supplied to the indoor unit or when the unit is recovering from a power failure.

Operation mode blinking display

When multiple indoor units are connected to a single outdoor unit and an operation mode is selected for one indoor unit that is different from the current

operation mode of another indoor unit, the operation mode display blinks. Select the same operation mode of the other indoor unit.

“NOT AVAILABLE” message

This message is displayed if a button is pressed to operate a function that the indoor unit does not have.

When the same remote controller is used to operate multiple indoor units, this message is displayed if the main indoor unit is not equipped with the

selected function.

Room temperature display

The indoor unit temperature sensors or the remote controller temperature sensor can be selected to measure the room temperature. The indoor unit

temperature sensors are the initial setting. When the indoor unit temperature sensors are selected to measure the room temperature, the room tem-

perature measured at the main indoor unit is displayed on the remote controller that operates multiple indoor units.

2. Parts Names

Built-in temperature sensor

To go to next operation number

Back

Ahead

For purposes of this explana-

tion, all parts of the display are

shown. During actual operation,

only the relevant items will be

displayed.

Timer Menu button

(Monitor/Set button)
