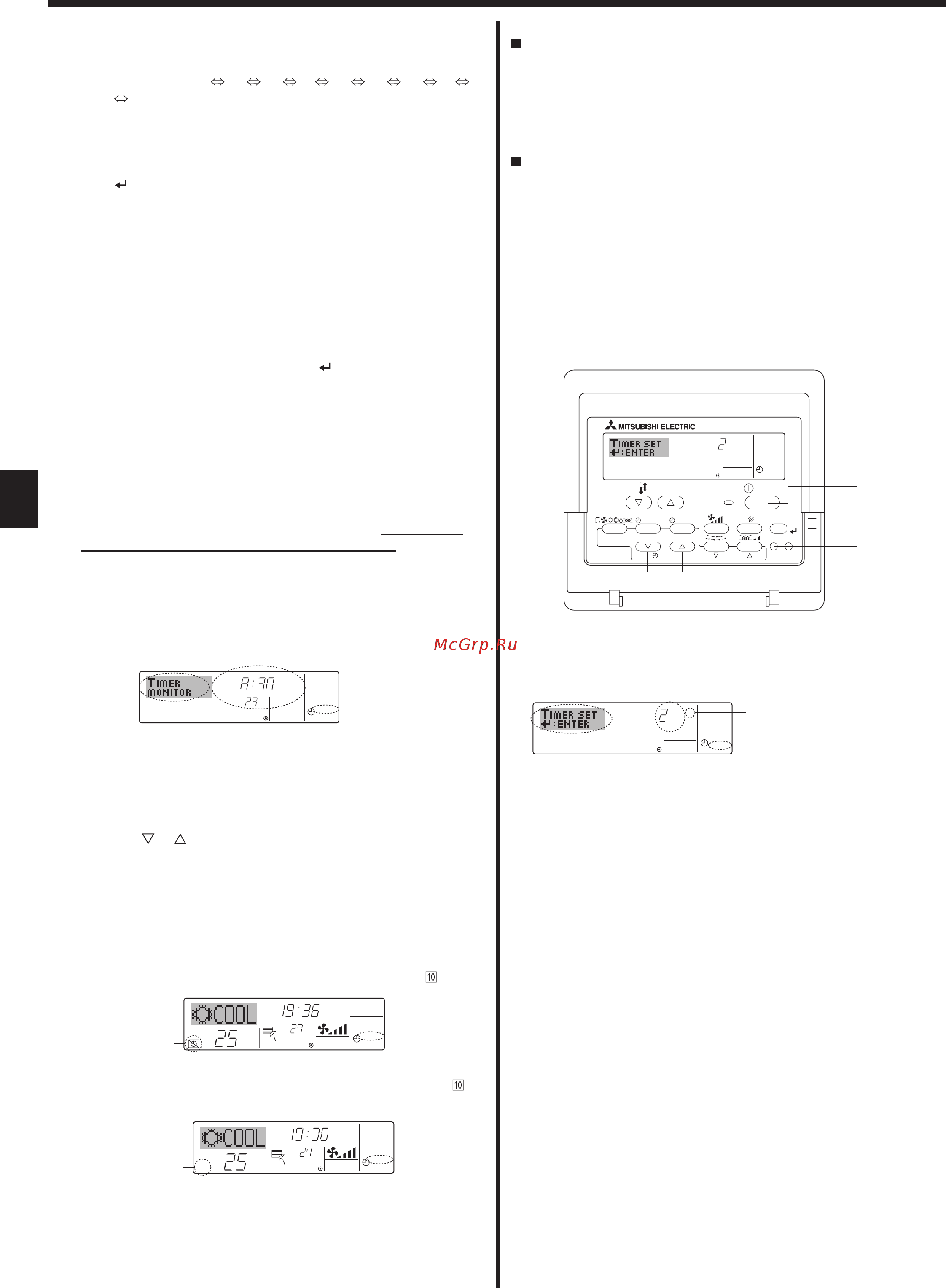

7. Press the appropriate Temperature set button 3 to set the desired

temperature (at 7).

* Each press changes the setting, in the following sequence: No

display (no setting)

24 25 ... 29 30 12 ...

No display.

(Available range: The range for the setting is 12 °C to 30 °C.

The actual range over which the temperature can be controlled,

however, will vary according to the type of the connected unit.)

8. After making the appropriate settings at Steps 5, 6 and 7, press the

Filter

button 4 to lock in the values.

To clear the currently set values for the selected operation, press

and quickly release the Check (Clear) button 0 once.

* The displayed time setting will change to “—:—”, and the On/Off

and temperature settings will all disappear.

(To clear all weekly timer settings at once, hold down the Check

(Clear) button 0 for 2 seconds or more. The display will begin

flashing, indicating that all settings have been cleared.)

Note:

Your new entries will be cancelled if you press the Operation mode

(Back) button 2 before pressing the Filter

button 4.

If you have set two or more different operations for exactly the same

time, only the operation with the highest Operation No. will be carried

out.

9. Repeat Steps 3 to 8 as necessary to fill as many of the available

cells as you wish.

10. Press the Operation mode (Back) button 2 to return to the

standard control screen and complete the setting procedure.

11. To activate the timer, press the Timer On/Off button 9, so that the

“Timer Off” indication disappears from the screen. Be sure that

the “Timer Off” indication is no longer displayed.

* If there are no timer settings, the “Timer Off” indication will flash

on the screen.

1. Be sure that the weekly timer indicator is visible on the screen (at

1).

2. Press the Timer Menu button 2 so that “Monitor” is indicated on

the screen (at 8).

3. Press the Timer On/Off (Set Day) button 9 as necessary to select

the day you wish to view.

4. Press the

or operation button (7 or 8) as necessary to

change the timer operation shown on the display (at 9).

* Each press will advance to the next timer operation, in order of

time setting.

5. To close the monitor and return to the standard control screen,

press the Operation mode (Back) button 2.

Press the Timer On/Off button 9 so that “Timer Off” appears at

Press the Timer On/Off button 9 so that the “Timer Off” indication (at )

goes dark.

6.1.2. Simple Timer

You can set the simple timer in any of three ways.

• Start time only:

The air conditioner starts when the set time has elapsed.

• Stop time only:

The air conditioner stops when the set time has elapsed.

• Start & stop times:

The air conditioner starts and stops at the respective elapsed times.

The simple timer (start and stop) can be set only once within a 72-

hour period.

The time setting is made in hour increments.

Note:

*1. Weekly Timer/Simple Timer/Auto Off Timer cannot be used at the same

time.

*2. The simple timer will not operate when any of the following conditions is

in effect.

The timer is off; the system is in malfunction state; a test run is in

progress; the remote controller is undergoing self-check or remote

controller check; the user is in the process of selecting a function; the

user is in the process of setting the timer; the system is under central

control. (Under these conditions, On/Off operation is prohibited.)

1. Be sure that you are at a standard control screen, and that the simple

timer indicator is visible in the display (at 1).

When something other than the Simple Timer is displayed, set it to

SIMPLE TIMER using the function selection of remote controller (see

8.[4]–3 (3)) timer function setting.

2. Press the Timer Menu button 2, so that the “Set Up” appears on the

screen (at 2). (Note that each press of the button toggles the display

between “Set Up” and “Monitor”.)

3. Press the ON/OFF button 1 to display the current ON or OFF simple

timer setting. Press the button once to display the time remaining to

ON, and then again to display the time remaining to OFF. (The ON/

OFF indication appears at 3).

• “ON” timer:

The air conditioner will start operation when the specified number of

hours has elapsed.

• “OFF” timer:

The air conditioner will stop operation when the specified number of

hours has elapsed.

4. With “ON” or “OFF” showing at 3: Press the appropriate Set Time

button 1 as necessary to set the hours to ON (if “ON” is displayed) or

the hours to OFF (if “OFF” is displayed) at 4.

• Available Range: 1 to 72 hours

5. To set both the ON and OFF times, repeat Steps 3 and 4.

* Note that ON and OFF times cannot be set to the same value.

6. To clear the current ON or OFF setting: Display the ON or OFF setting

(see step 3) and then press the Check (Clear) button 0 so that the

time setting clears to “—” at 4. (If you want to use only an ON setting

or only an OFF setting, be sure that the setting you do not wish to use

is shown as “—”.)

ONHr

AFTER

SIMPLE

PAR-21MAA

ON/OFF

FILTER

CHECK

OPERATION

CLEAR

TEST

TEMP.

BACK DAY

MONITOR/SET

CLOCK

ON/OFF

2a9

ONHr

AFTER

SIMPLE

Timer Setting

Action (On or Off)

* “— —” is displayed if there is no

setting.

°C

TIME SUN

WEEKLY

6. Timer

°C

TIMER

SUN

OFF

WEEKLY

°C

TIME SUN

WEEKLY

Timer Settings
