6.1. For Wired Remote-controller

You can use Function Selection of remote controller to select which of

three types of timer to use: 1 Weekly timer, 2 Simple timer, or 3 Auto

Off timer.

6.1.1. Weekly Timer

The weekly timer can be used to set up to eight operations for each

day of the week.

• Each operation may consist of any of the following: ON/OFF time

together with a temperature setting, or ON/OFF time only, or

temperature setting only.

• When the current time reaches a time set at this timer, the air

conditioner carries out the action set by the timer.

Time setting resolution for this timer is 1 minute.

Note:

*1. Weekly Timer/Simple Timer/Auto Off Timer cannot be used at the same

time.

*2. The weekly timer will not operate when any of the following conditions is

in effect.

The timer feature is off; the system is in an malfunction state; a test run

is in progress; the remote controller is undergoing self-check or remote

controller check; the user is in the process of setting a function; the user

is in the process of setting the timer; the user is in the process of setting

the current day of the week or time; the system is under central control.

(Specifically, the system will not carry out operations (unit on, unit off, or

temperature setting) that are prohibited during these conditions.)

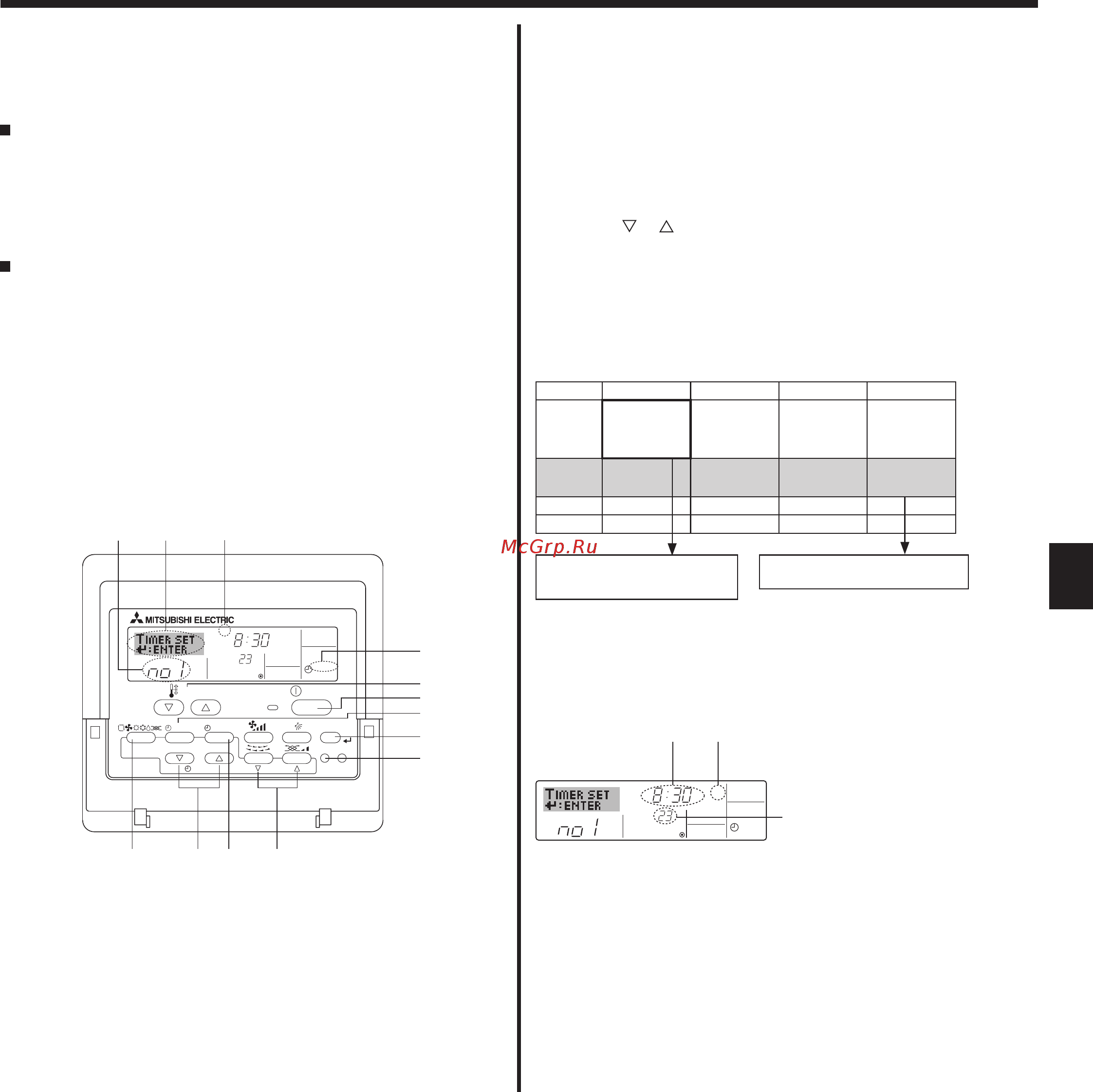

°C

SUN

WEEKLY

PAR-21MAA

ON/OFF

FILTER

CHECK

OPERATION

CLEAR

TEST

TEMP.

BACK DAY

MONITOR/SET

CLOCK

ON/OFF

42 3

Operation No.

Day Setting

1. Be sure that you are at a standard control screen, and that the weekly

timer indicator 1 is shown in the display.

2. Press the Timer Menu button 2, so that the “Set Up” appears on the

screen (at 2). (Note that each press of the button toggles the display

between “Set Up” and “Monitor”.)

3. Press the Timer On/Off (Set Day) button 9 to set the day. Each

press advances the display at 3 to the next setting, in the following

sequence: “Sun Mon Tues Wed Thurs Fri Sat” → “Sun” →... → “Fri”

→ “Sat” → “Sun Mon Tues Wed Thurs Fri Sat”...

4. Press the

or operation button (7 or 8) as necessary to select

the appropriate operation number (1 to 8) 4.

* Your inputs at Steps 3 and 4 will select one of the cells from the

matrix illustrated below.

(The remote-controller display at left shows how the display would

appear when setting Operation 1 for Sunday to the values indicated

below.)

Setup Matrix

Op No. Sunday Monday ... Saturday

No. 1

• 8:30

• ON

• 23 °C

No. 2

• 10:00

• OFF

• 10:00

• OFF

• 10:00

• OFF

• 10:00

• OFF

...

No. 8

Note:

By setting the day to “Sun Mon Tues Wed Thurs Fri Sat”, you can set the

same operation to be carried out at the same time every day.

(Example: Operation 2 above, which is the same for all days of the week.)

5. Press the appropriate Set Time button 1 as necessary to set the

desired time (at 5).

* As you hold the button down, the time first increments in minute

intervals, then in ten-minute intervals, and then in one-hour

intervals.

6. Press the ON/OFF button 1 to select the desired operation (ON or

OFF), at 6.

* Each press changes the next setting, in the following sequence:

No display (no setting) → “ON” → “OFF”

6. Timer

°C

SUN

WEEKLY

Shows the selected operation (ON or OFF)

* Does not appear if operation is not set.

Shows the temperature setting

* Does not appear if temperature is

not set.

Shows the time

setting

Start the air conditioner at 8:30, with

the temperature set to 23 °C.

Turn off the air conditioner at 10:00.
