2
H
W
D
123
45
67
► Before installing the unit, make sure you read all the “Safety precau-
tions”.
► Please report to your supply authority or obtain their consent before
connecting this equipment to the power supply system.
1. Safety precautions
3. Installing the indoor unit
3.1. Check the indoor unit accessories (Fig. 3-1)
The indoor unit should be supplied with the following accessories
(contained in the inside of the intake grille).
Accessory name Q’ty
1
Washer 4 pcs
2
Pipe cover 1 pc Large size (For gas tubing)
3
Pipe cover 1 pc Small size (For liquid tubing)
4
Band 4 pcs
5
Joint socket 1 pc Marked with “UNIT”
6
Socket cover 1 pc
7
Drain tubing cover 1 pc

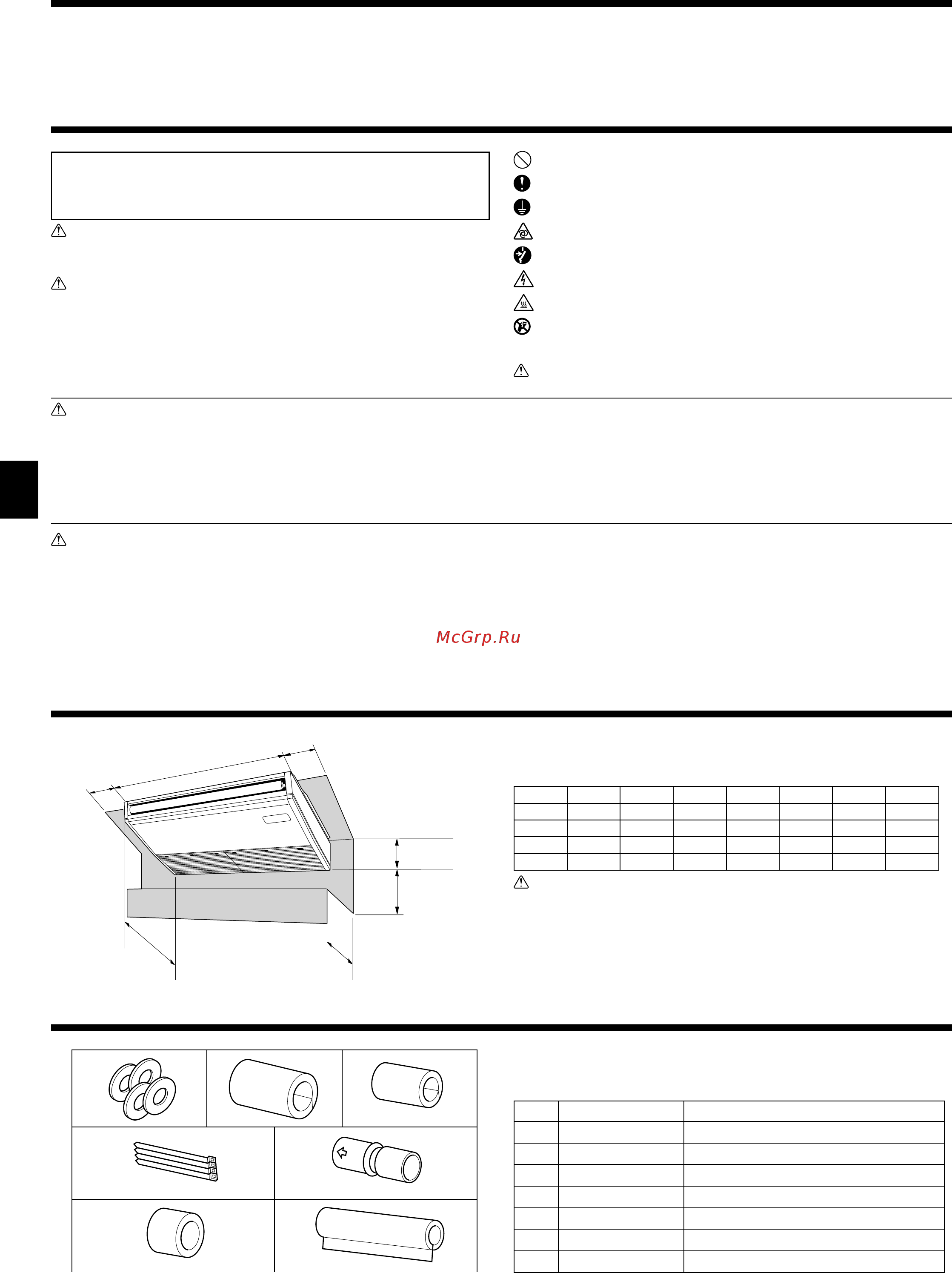

Fig. 2-1
Contents
1. Safety precautions ........................................................................................ 2
2. Installation location ....................................................................................... 2
3. Installing the indoor unit................................................................................ 2
4. Installing the refrigerant piping .................................................................... 4
5. Drainage piping work .................................................................................... 5
6. Electrical work .............................................................................................. 5
7. Test run (Fig. 7-1) ......................................................................................... 7
Warning:
Describes precautions that must be observed to prevent danger of injury or
death to the user.
Caution:
Describes precautions that must be observed to prevent damage to the unit.
After installation work has been completed, explain the “Safety Precautions,” use,
and maintenance of the unit to the customer according to the information in the
Operation Manual and perform the test run to ensure normal operation. Both the
Installation Manual and Operation Manual must be given to the user for keeping.
These manuals must be passed on to subsequent users.
: Indicates an action that must be avoided.
: Indicates that important instructions must be followed.
: Indicates a part which must be grounded.
: Indicates that caution should be taken with rotating parts.
: Indicates that the main switch must be turned off before servicing.
: Beware of electric shock.
: Beware of hot surface.
ELV
: At servicing, please shut down the power supply for both the Indoor and
Outdoor Unit.
Warning:
Carefully read the labels affi xed to the main unit.
Warning:
• Ask the dealer or an authorized technician to install the air conditioner.
• Install the unit at a place that can withstand its weight.
• Use the specifi ed cables for wiring.
• Use only accessories authorized by Mitsubishi Electric and ask the dealer
or an authorized technician to install them.
• Do not touch the heat exchanger fi ns.
• Install the air conditioner according to this Installation Manual.
• Have all electric work done by a licensed electrician according to local
regulations.
• If the air conditioner is installed in a small room, measures must be taken
to prevent the refrigerant concentration from exceeding the safety limit
even if the refrigerant should leak.
• The cut face punched parts may cause injury by cut, etc. The installers are
requested to wear protective equipement such as gloves, etc.
Caution:
•
Do not use the existing refrigerant piping, when use R410A or R407C refrigerant.
•
Use ester oil, either oil or alkylbenzene (small amount) as the refrigerator oil
to coat fl ares and fl ange connections, when use R410A or R407C refrigerant.
• Do not use the air conditioner where food, pets, plants, precision instru-
ments, or artwork are kept.
• Do not use the air conditioner in special environments.
• Ground the unit.
• Install an leak circuit breaker, as required.
• Use power line cables of suffi cient current carrying capacity and rating.
• Use only a circuit breaker and fuse of the specifi ed capacity.
• Do not touch the switches with wet fi ngers.
• Do not touch the refrigerant pipes during and immediately after operation.
• Do not operate the air conditioner with the panels and guards removed.
• Do not turn off the power immediately after stopping operation.
2. Installation location
2.1. Outline dimensions (Indoor unit) (Fig. 2-1)
Select a proper position allowing the following clearances for installation and main-
tenance. (mm)
Models W D H
ABCE
P40 960 680 230 Min. 270 Min. 300 Min. 500 Max. 250
P63 1280 680 230 Min. 270 Min. 300 Min. 500 Max. 250
P100 1600 680 230 Min. 270 Min. 300 Min. 500 Max. 250
P125 1600 680 230 Min. 270 Min. 300 Min. 500 Max. 250
Warning:
Mount the indoor unit on a ceiling strong enough to withstand the weight of the unit.
2.2. Outline dimensions (Outdoor unit)
Refer to the outdoor unit installation manual.
Fig. 3-1
70+6
01_RG79D452H01_EN.indd 201_RG79D452H01_EN.indd 2 2008/08/08 15:49:512008/08/08 15:49:51
