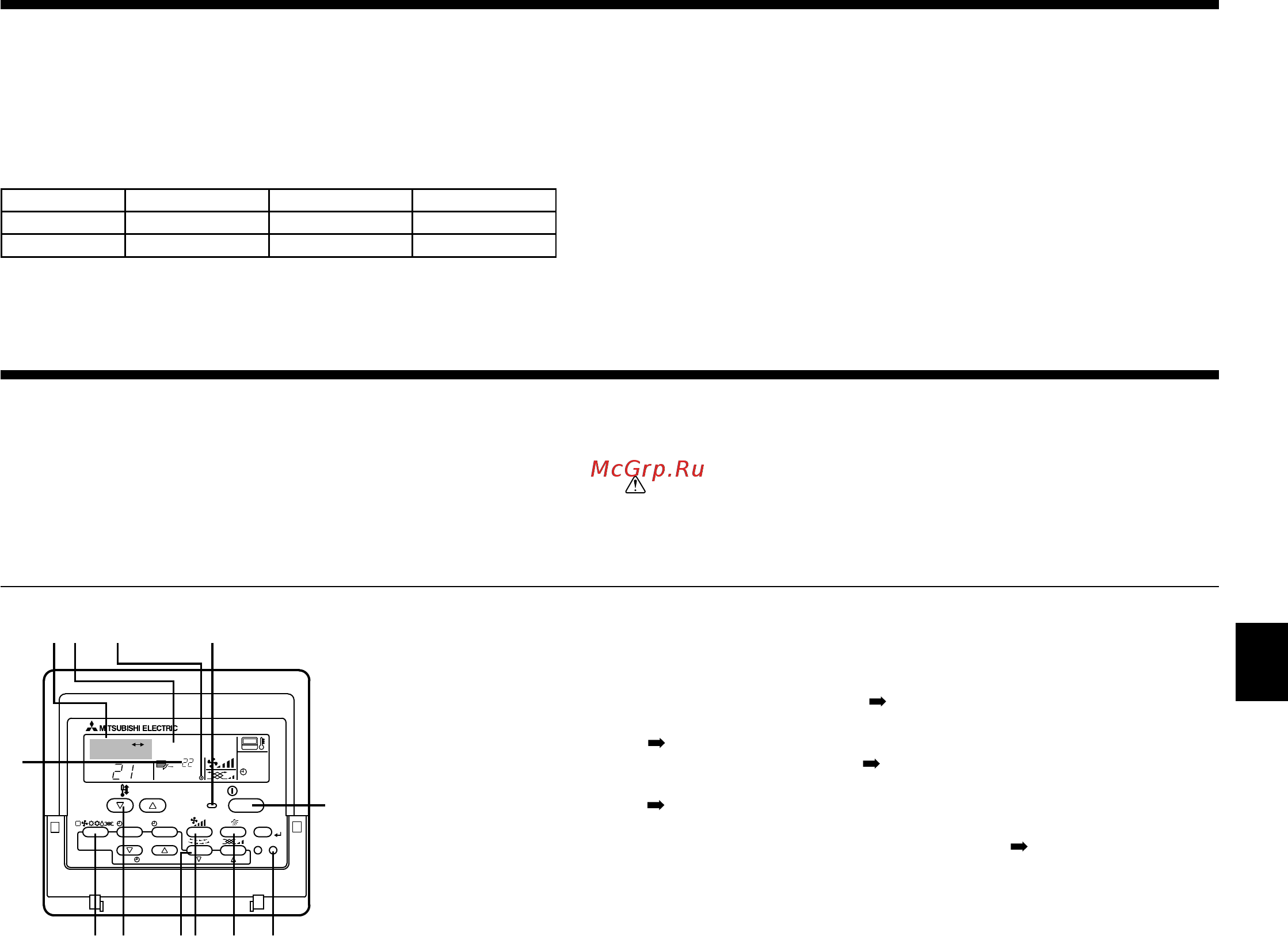

7. Test run (Fig. 7-1)
Fig. 7-1
°C
°C
SIMPLE
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
TEST RUN
COOL, HEAT
"!
A
ON/OFF button
B
Test run display
C
Liquid pipe (Indoor unit)
temperature display
D
ON/OFF lamp
E
Power display
F
Error code display
Test run remaining time
display
G
Set temperature button
H
Mode selection button
I
Air direction button
M
TEST button
N
Fan Speed button
O
Louver button
► Do not carry out this test on the control wiring (low voltage circuit) termi-
nals.
Warning:
Do not use the air conditioner if the insulation resistance is less than 1.0 MΩ.
7.1. Before test run
► After completing installation and the wiring and piping of the indoor and
outdoor units, check for refrigerant leakage, looseness in the power sup-
ply or control wiring, wrong polarity, and no disconnection of 1 phase in
the supply.
► Use a 500-volt megohmmeter to check that the resistance between the
power supply terminals and ground is at least 1.0 MΩ.
7.2. Test run
Using wired remote controller (Fig. 7-1)
1
Turn on the power at least 12 hours before the test run.
2
Press the [TEST] button twice. “TEST RUN” liquid crystal display
3
Press the [Mode selection] button and switch to the cooling (or heating) mode.
Make sure that cold (or warm) wind is blown out.
4
Press the [Fan speed] button.
Make sure that the wind speed is switched.
5
Press the [Air direction button] or [Louver button].
Check operation of the vane or louver.
6
Check operation of the outdoor unit fan.
7
Release test run by pressing the [ON/OFF] button. Stop
8
Register a telephone number.
The telephone number of the repair shop, sales offi ce, etc., to contact if an error
occurs can be registered in the remote controller. The telephone number will be
displayed when an error occurs. For registration procedures, refer to the opera-
tion manual for the indoor unit.
Note:
• If an error code is displayed on the remote controller or if the air conditioner does not operate properly, refer to the outdoor unit installation manual or other
technical materials.
• The OFF timer is set for the test run to automatically stop after 2 hours.
• During the test run, the time remaining is shown in the time display.
• During the test run, the temperature of the indoor unit refrigerant pipes is shown in the room temperature display of the remote controller.
• When the VANE or LOUVER button is pressed, the message “NOT AVAILABLE” may appear on the remote controller display depending on the indoor unit
model, but this is not a malfunction.
6. Electrical work
6.7. Sensing room temperature with the built-in sensor
in a remote controller (Fig.6-4)
If you want to sense room temperature with the built-in sensor in a remote
controller, set SW1-1 on the control board to “ON”. The setting of SW1-7 and
SW1-8 as necessary also makes it possible to adjust the air fl ow at a time when
the heating thermometer is OFF.
6.6. Switch setting for different ceiling heights
(Fig.6-4)
With this unit, the air fl ow rate and fan speed can be adjusted by setting the SWA
(slide switch). Select a suitable setting from the table below according to the instal-
lation location.
* Make sure the SWA switch is set, otherwise problems such as not getting cool/
warm may occur.
SWA 3 (high ceiling) 2 (standard) 1 (silent)
P40, P63 3.5 m 2.7 m 2.5 m
P100, P125 4.2 m 3.0 m 2.6 m
SWA: Initial setting: 2 (Standard)
01_RG79D452H01_EN.indd 701_RG79D452H01_EN.indd 7 2008/08/08 15:50:012008/08/08 15:50:01
