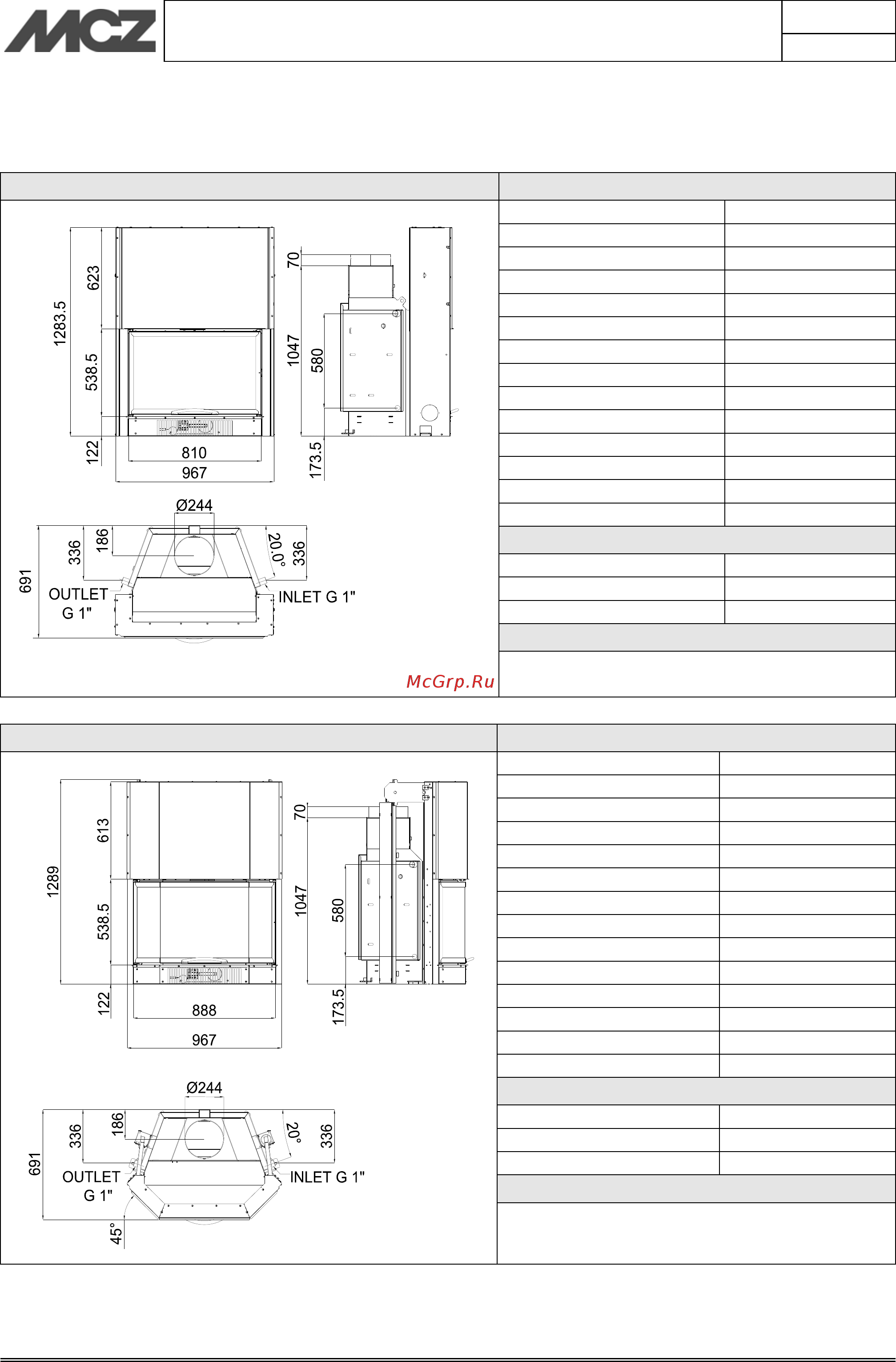

3. DIMENSIONS AND TECHNICAL SPECIFICATIONS
HYDRO THERM 80 Technical specifications
Fuel type Wood
Hourly consumption 7,1 kg/h
Nominal thermal power kW 26,2 - Kcal 22.532
H
2
O thermal power kW 15,2 - Kcal 13.072
Efficiency 77,1%
Heatable volume * 563/40-644/35-751/30
Recommended draught 12 Pa / 0,12 mbar
Smoke temperature 333 °C
Smoke outlet Ø 25 cm
Net weight 232 Kg
External combustion air outlet cm² 200
CO emission in smoke (13 %O
2
) 0,61%
Massive smoke capacity 17,7 g/s
Permissible max. water pressure 1,5 bar
Flue pipe
Up to 5 m 30x30 cm Ø30
Over 5 m 25x25 cm Ø25
Note
Intermittent combustion unit
* Data may vary according to the fuel used
HYDRO THERM 80E Technical specifications
Fuel type Wood
Hourly consumption 7,1 kg/h
Nominal thermal power kW 26,2 - Kcal 22.532
H
2
O thermal power kW 15,2 - Kcal 13.072
Efficiency 77,1%
Heatable volume * 563/40-644/35-751/30
Recommended draught 12 Pa / 0,12 mbar
Smoke temperature 333 °C
Smoke outlet Ø 25 cm
Net weight 235 Kg
External combustion air outlet cm² 200
CO emission in smoke (13 %O
2
) 0,61%
Massive smoke capacity 17,7 g/s
Permissible max. water pressure 1,5 bar
Flue pipe
Up to 5 m 30x30 cm Ø30
Over 5 m 25x25 cm Ø25
Note
Intermittent combustion unit
* Data may vary according to the fuel used
