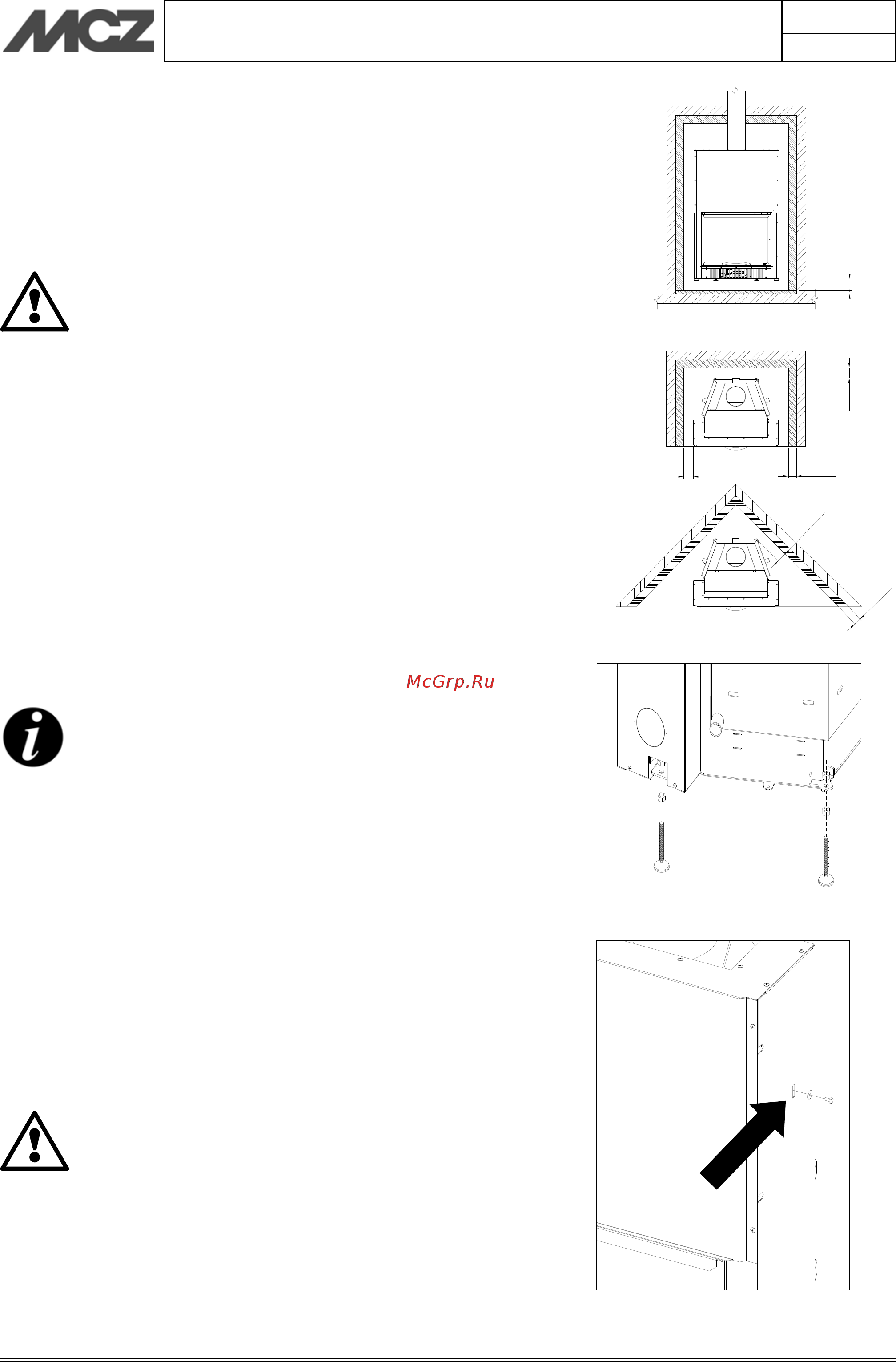

MCZ HydroTherm 70 [18/45] Height adjustment

INSTALLATION AND USE MANUAL

Chapter 4

page 18

100 80

100

For installation near flammable material, comply with the following

minimum safe distances:

 Distance from the sides and back= 100 mm

 Height above floor = 80 mm

 Insulating material on sides and back= 80 mm

 Insulating material on the floor = 25 mm

If the stove is positioned over a floor or close to

walls made of flammable materials, it is advisable to

use sufficient insulation.

The hot air outlets must be placed at least 300 mm

from other materials (e.g. curtains)

4.3. HEIGHT ADJUSTMENT

The Hydrotherm fireplace stove is equipped with adjustment feet,

whose purpose is to allow the easy levelling of the fire bed. The feet

allow an adjustment of about 6-7 cm and are mounted on the pre-set

brackets (See figure)

If you want to raise the fireplace stove by more than 6-7 cm, you need

to create a masonry pedestal to set the product on. Do not eliminate

the feet. They are indispensable for levelling.

If the fireplace stove is not placed level, there is the

risk that door will not close perfectly, and that the

internal counterweights strike the structure, causing

noise each time the door is raised or lowered.

It is possible to adjust the levelling of the fireplace

stove by checking the sliding of the door until it no

longer makes any noise.

4.4. RELEASE OF COUNTERWEIGHTS

The fireplace stove is delivered with the sliding counterweights locked

in place. In this way, during shipping and handling, they will not strike

and damage the sliding parts, the door and the ceramic glass.

To release the counterweights and therefore also the door, remove the

screws as shown in

figure 2

from both sides of the fireplace stove.

Remove the screws that hold the counterweights

only after you have positioned the fireplace stove

and to ensure that the glass is in good condition.

DO NOT MOVE THE FIREPLACE STOVE WITHOUT THE

SCREWS THAT HOLD THE COUNTERWEIGHTS.

Damage caused by failure to observe this rule is the

responsibility of the client or his representative.
