INSTALLATION AND USE MANUAL
Chapter 3
page 16

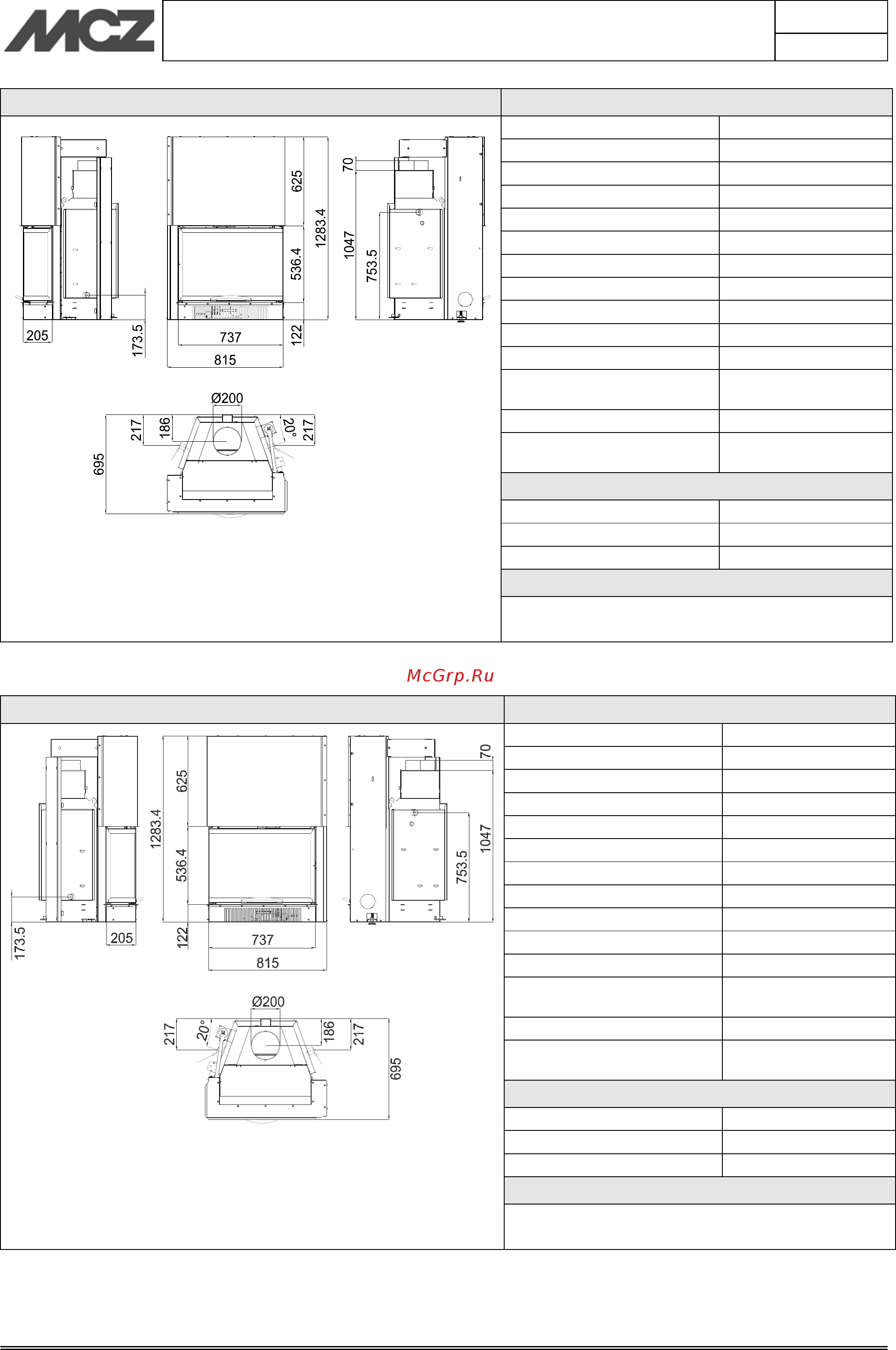

Dimensions and technical specifications Technical service – MCZ GROUP S.p.A. all rights reserved - Reproduction prohibited
HYDRO THERM 70SX Technical specifications
OUTLET
G 1"
INLET G 1"
Fuel type Wood
Hourly consumption 6,5 kg/h
Nominal thermal power kW 21,2 - Kcal 18.232
H
2
O thermal power kW 13,0 - Kcal 11.180
Efficiency 75,2 %
Heatable volume * 456/40-521/35-608/30
Recommended draught 12 Pa / 0,12 mbar
Smoke temperature 310 °C
Smoke outlet Ø 20 cm
Net weight 204 Kg
External combustion air outlet cm² 200
CO emission in smoke (13
%O
2
)
0,87%
Massive smoke capacity 14,4 g/s
Permissible max. water
pressure
1,5 bar
Flue pipe
Up to 5 m 25x25 cm Ø25
Over 5 m 20x20 cm Ø20
Note
Intermittent combustion unit
* Data may vary according to the fuel used
HYDRO THERM 70DX Technical specifications
OUTLET
G 1"
INLET G 1"
Fuel type Wood
Hourly consumption 6,5 kg/h
Nominal thermal power kW 21,2 - Kcal 18.232
H
2
O thermal power kW 13,0 - Kcal 11.180
Efficiency 75,2 %
Heatable volume * 456/40-521/35-608/30
Recommended draught 12 Pa / 0,12 mbar
Smoke temperature 310 °C
Smoke outlet Ø 20 cm
Net weight 204 Kg
External combustion air outlet cm² 200
CO emission in smoke (13
%O
2
)
0,87%
Massive smoke capacity 14,4 g/s
Permissible max. water
pressure
1,5 bar
Flue pipe
Up to 5 m 25x25 cm Ø25
Over 5 m 20x20 cm Ø20
Note
Intermittent combustion unit
* Data may vary according to the fuel used
