IS517
Page 9
TERMINAL
LID
TERMINAL
BRACKET
EARTH
TERMINALS
FRAME HEATERS
TERMINAL BLOCK
LIGHT TERMINAL
BLOCK
INSTALLATION INSTRUCTIONS FOR C6R/75U, C6R/100U,
C6R/125U DROP-IN MODELS
Refer to the information on page 4 before proceeding.
The cabinet is not connected to the refrigeration module during transit. Remove
the doors, shelves and base panels from the cabinet and lift this from the pallet
first to separate the two parts of the appliance.
Prepare the counter taking note of the ventilation requirements on page 11.
Cut a hole in the counter top according to the diagram (2) on page 10. Lift the
refrigeration module onto the counter top so that the electrical supply cable is
on the customer’s side. Lower through the hole and ensure that the cable is not
trapped.
Carefully lower the cabinet over the refrigeration module and onto the counter
top ensuring the cables are not trapped. The plinth around the base of the
cabinet must be fully supported by the counter top beneath; no part of this plinth
should be allowed to overhang the counter top.

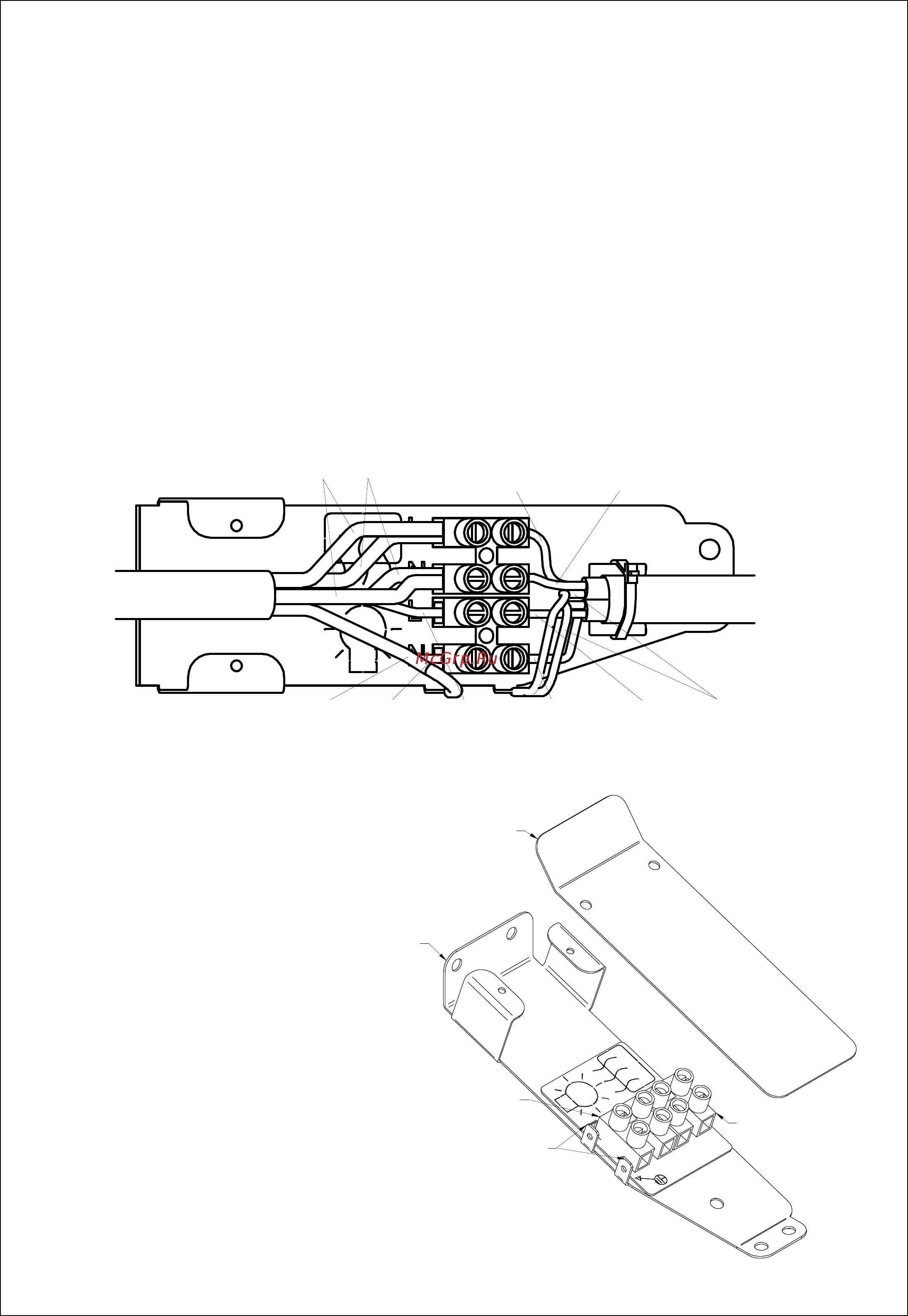

Open the evaporator box back lid, connect cables to terminal blocks (see
diagram below)
BROWN FROM
TERMINAL
BLUE FROM
TERMINAL
CH 1
CH 2
EARTH
WIRES
CABINET
EARTH
BROWN TO
LIGHT
BLUE TO
LIGHT
BROWN FROM
LIGHT SWITCH
BLUE FROM
LIGHT SWITCH
Using the screw supplied secure
the terminal lid and hinged lid.
Replace base panels, shelves
and doors.
The cabinet is now ready for use
Refer to operating instruction on
page 19.
